9.Image Quality Problem: Lines
570

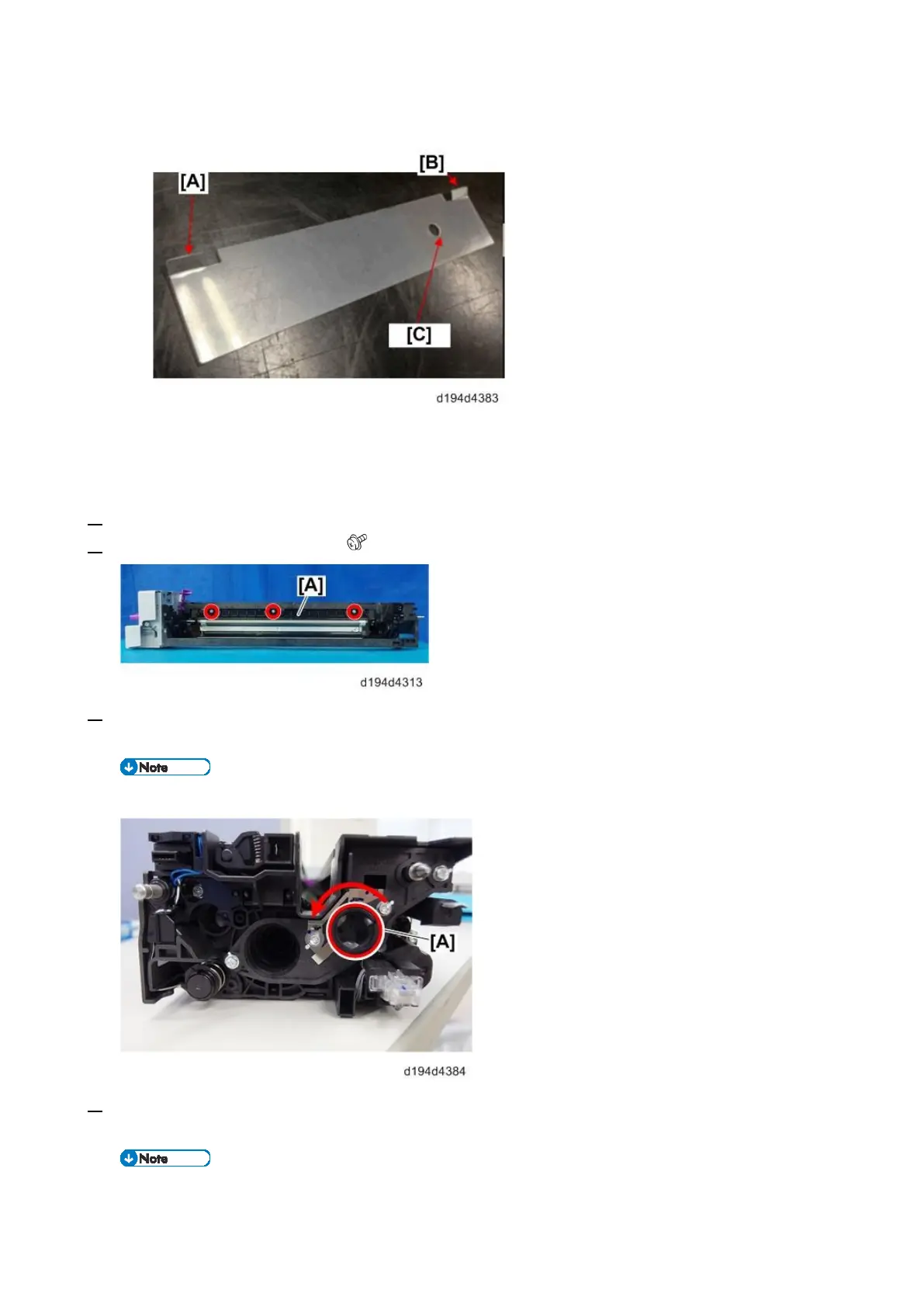

DG CLEANER 5PCS/SET
[A]: Bent part for cleaning to the right
[B]: Bent part for cleaning to the left
[C]: Guide hole
1. Remove PCDU.
2. Remove the Entrance seal [A] ( x3)
3. Watch the drive gear [A] from the back of the unit and turn it counterclockwise until the developer
on top of the development roller runs out.
When there is developer inside, keep the development unit level while working.
4. Insert the flat side of the special jig into the doctor with the bent part [A] facing up as shown below.
If the bent part gets caught, guide it with your finger and insert it all the way in.
To clean to the left, use the bent part that has the guide hole [B].
