Ricoh SP204SF - 1 Guide to the Machine; Guide to Components; Exterior

1. Guide to the Machine
Guide to Components
This section introduces the names of the various parts on the front and rear side of the machine and
outlines their functions.
Exterior
• Type 1 models do not come with an Ethernet port and USB Flash Disk Port.
• Type 3 models do not come with Line and TEL Port.

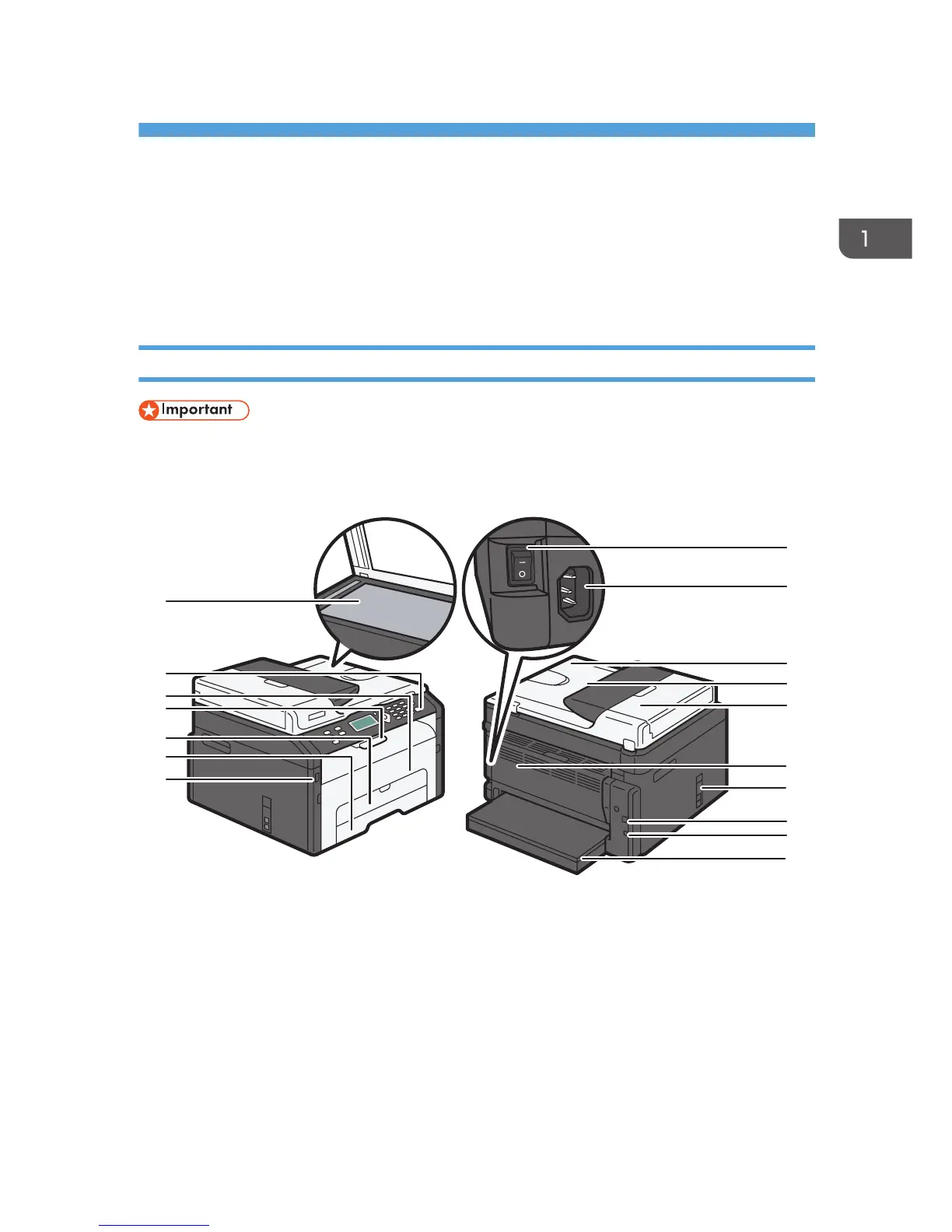

CTT111
2
8
1
6
3
7
4
5
9
10
11
14
13
12
16
15
17
1. Exposure Glass
Place originals here sheet by sheet.
2. Control Panel
Contains a screen and keys for machine control.
3. Front Cover
Open this cover to replace consumables or clear a paper jam.
4. Stop Fences
Raise this fence to prevent paper from falling off.
