Stack Present Sensor
• If you intend to correct the horizontal and vertical skew for the fold unit at the same time, do those
adjustments first, then replace the sensor. (* "Folding Horizontal Skew Adjustment" or "Fold Vertical
Skew Adjustment")

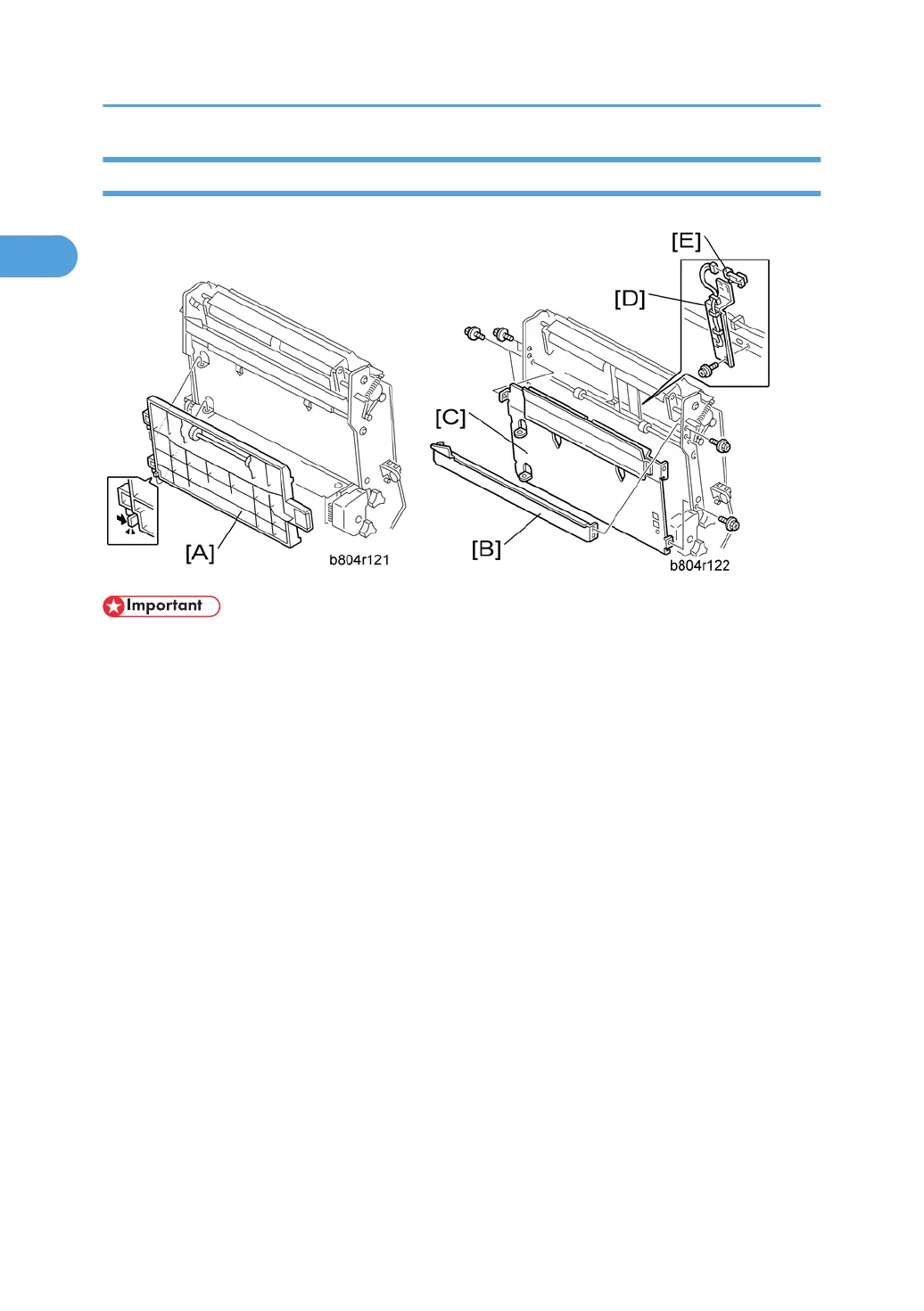

1. Remove the stapler unit (* "Fold Unit")
2. Guide plate [A].
3. Stay [B] ( x4)
4. Left plate [C] ( x4)
5. Sensor bracket [D] ( x1)
6. Stack present sensor [E] (S32) ( x1)
1. Replacement and Adjustment
20
