Next, the feed out belt motor switches on again, then the pawl actuates its home position sensor and
switches off the motor.
There are two output pawls on the feed out belt to improve the productivity of the feed out operation.
Feed Out Stacking

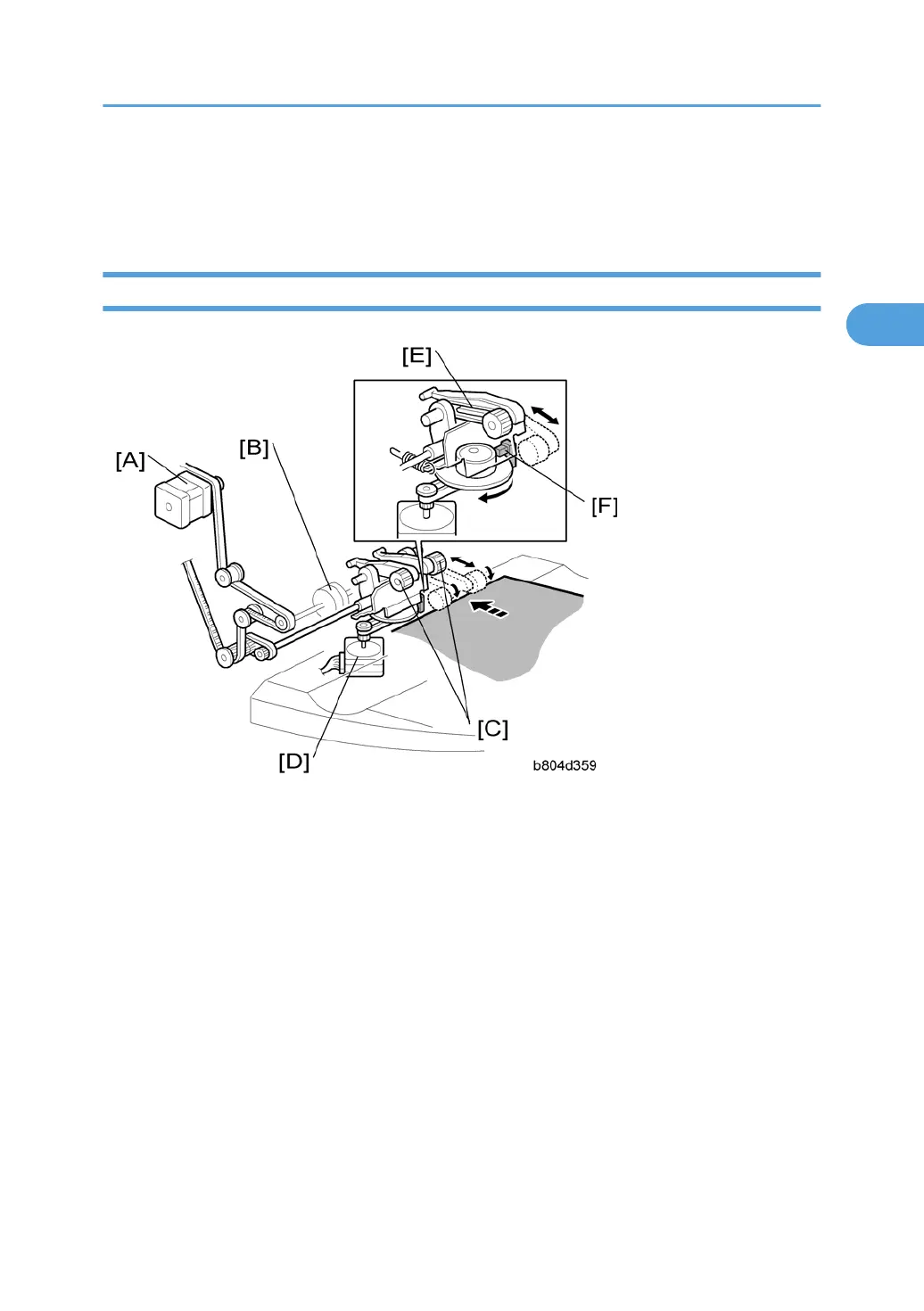

Upper/proof exit motor [A] drives feed roller [B] and stacking sponge roller [C].
Stacking sponge roller motor [D] moves the sponge roller forward and back with link [E].
The position of the stacking sponge roller [C] is controlled by the stacking sponge roller motor which is
switched on and off by the stacking roller HP sensor [F].
Upper Tray Output
69
2
