Ricoh SR3020 - Booklet Stapler Unit; Booklet Stapler; Booklet Stapler Motor

Booklet Stapler Unit
Booklet Stapler
1. Open the front door.
2. Pull out the stapler unit (* "Positioning Roller").

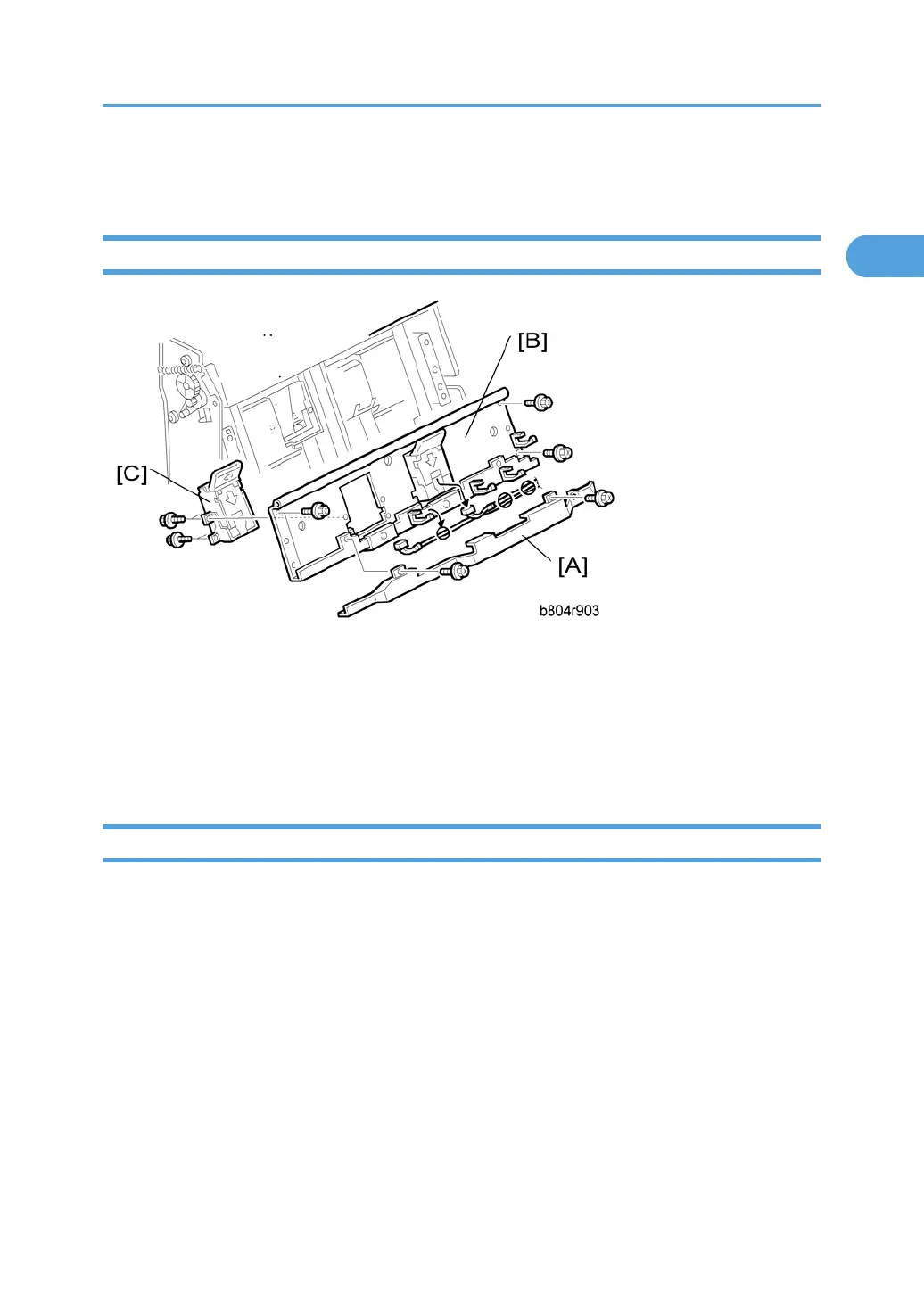

3. Harness cover [A] ( x2)
4. Booklet stapler support stay [B] ( x4,  x2,  x4)
5. Stapler [C] ( x4)
Booklet Stapler Motor
1. Open the front door.
2. Remove the stapler unit. (* "Fold Unit")
Booklet Stapler Unit
