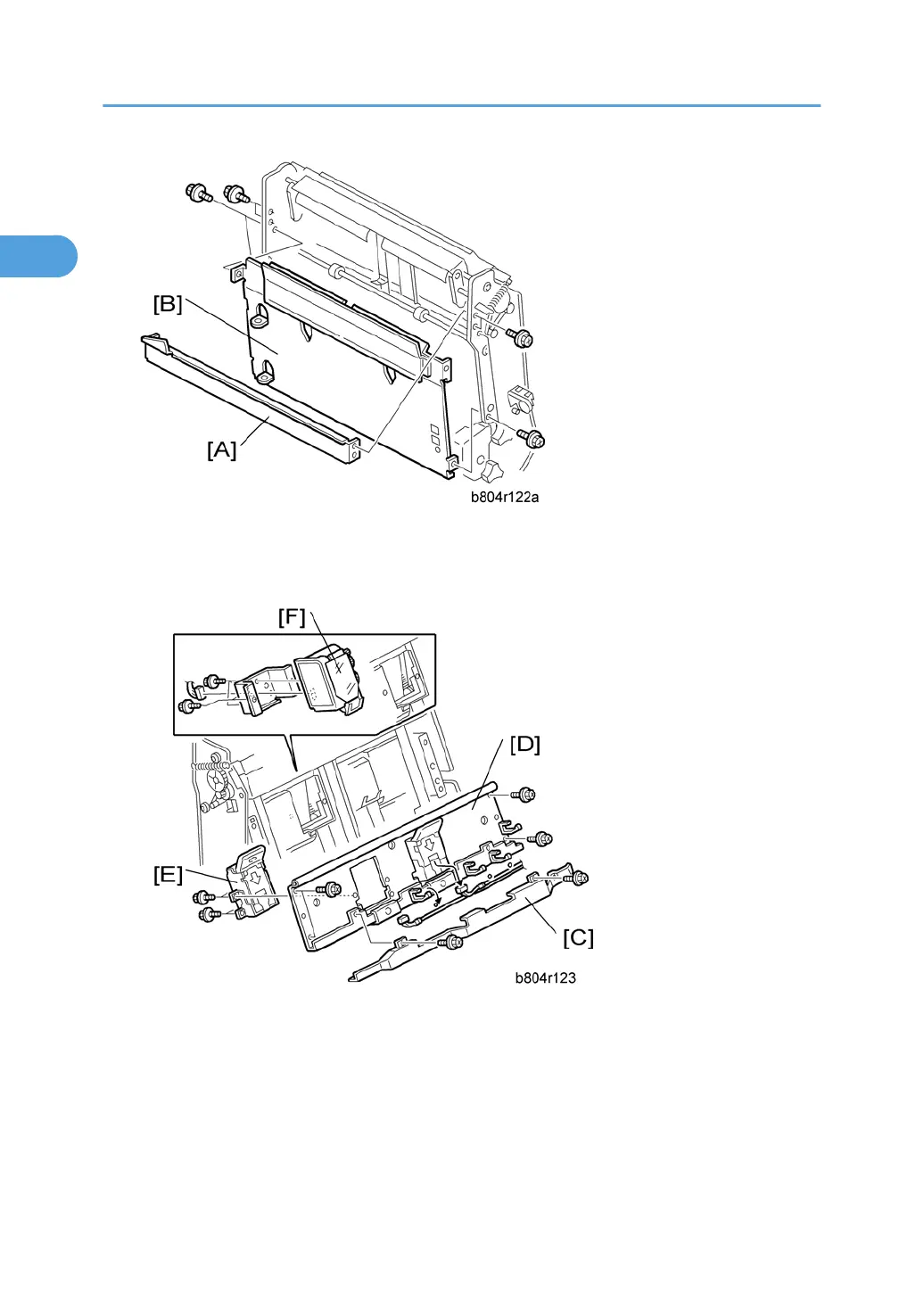

3.
Stay [A] (
x4).
4.
Left plate [B] (
x4)
5.
Harness cover [C] (
x2)
6.
Booklet stapler support stay [D] (
x4,
x2,
x4)
7.
Booklet stapler [E] (
x4)
8.
Booklet stapler motor [F] (
x2,
x1)
1. Replacement and Adjustment
26
1
27
29
