1. Replacement and Adjustment
Covers

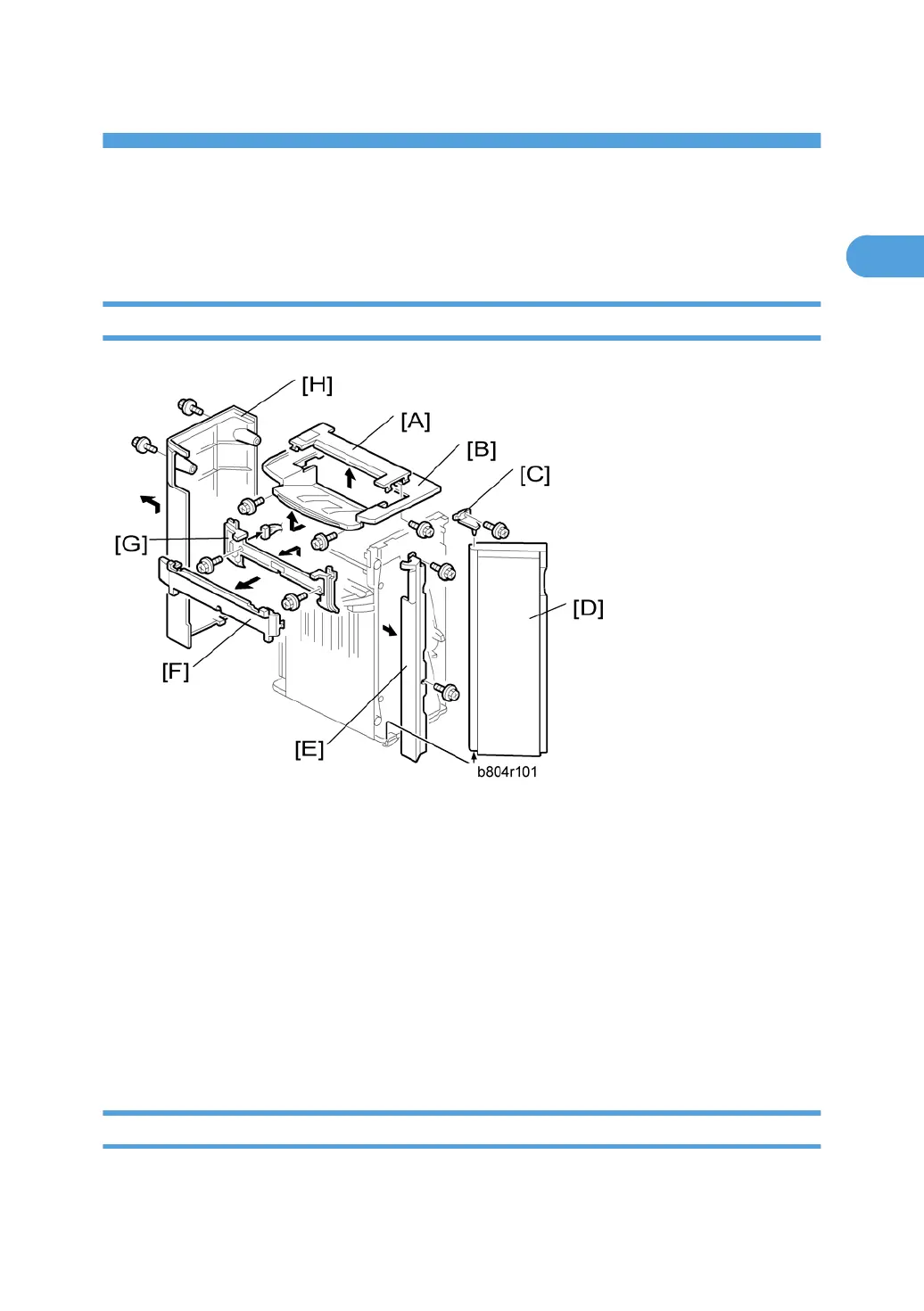

Exterior Covers
1. Open the front door [D].
2. Small upper cover [A] ( x1)
3. Upper cover [B] ( x2)
4. Front door bracket [C] ( x1)
5. Front door [D]
6. Front left side cover [E] ( x2)
7. Cover [F]
8. Paper exit cover [G] ( x2)
9. Rear cover [H] ( x2)
Upper Tray, End Fence
1. Remove the rear cover. (* "Exterior Covers")
5
1
