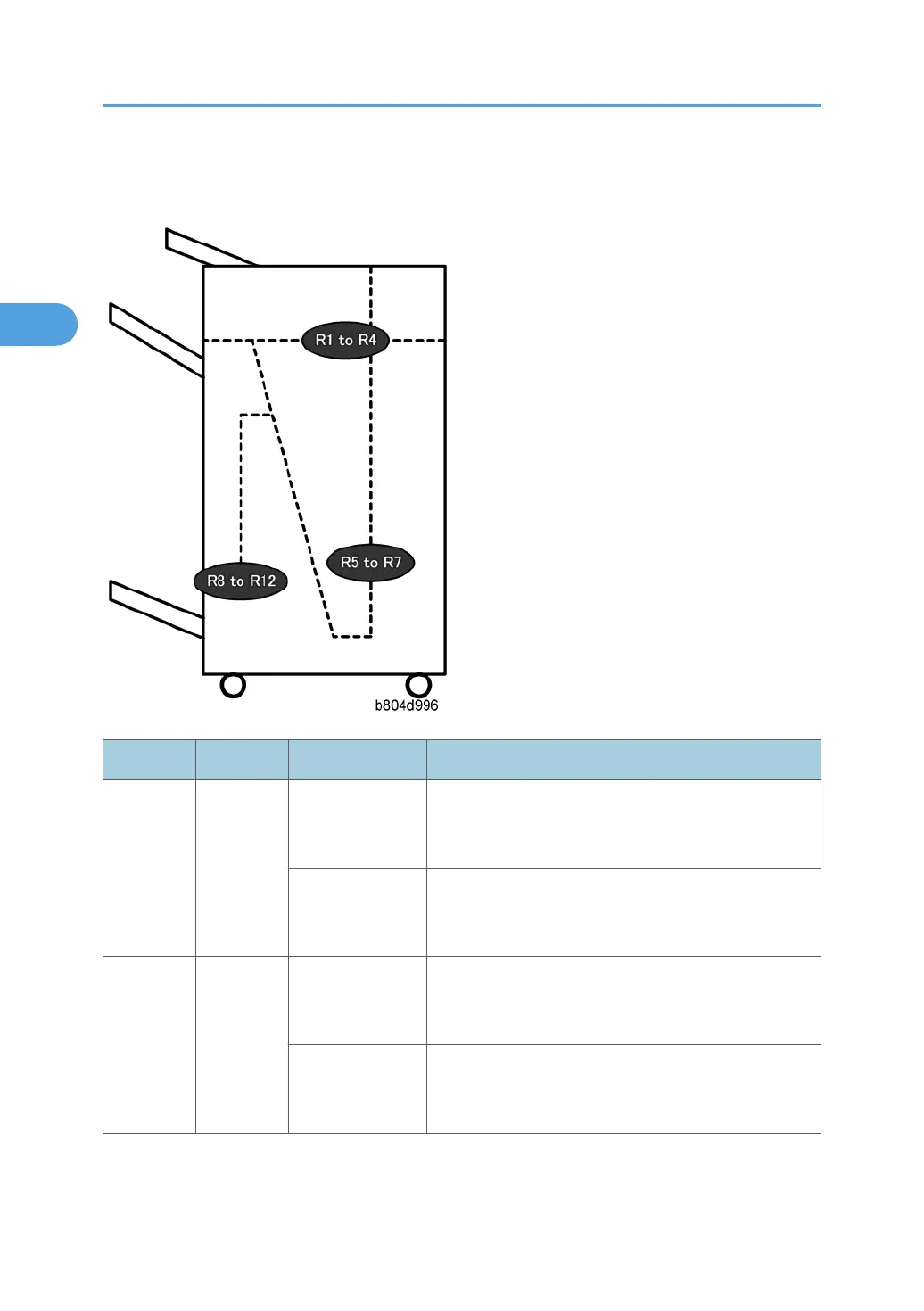

Finisher Jam Detection
Display Mode Jam What It Means
R1 to R3
Proof
Shift
Staple
Finisher entrance
sensor late
After main machine exit sensor goes OFF, finisher en-
trance sensor does not go ON even after enough time
to feed 450 mm.
Finisher entrance
sensor lag
After finisher entrance sensor goes ON, it does not go
OFF after enough time to feed a sheet 1.5 times its length
has elapsed.
R3 Proof
Proof exit sensor
late
After finisher entrance sensor goes ON, proof exit sensor
does not go ON even after enough time to feed 450
mm.
Proof exit sensor
lag
After finisher entrance sensor goes OFF, proof exit sen-
sor does not go OFF even after enough time to feed 450
mm.
