2. Detailed Section Descriptions
Component Layout

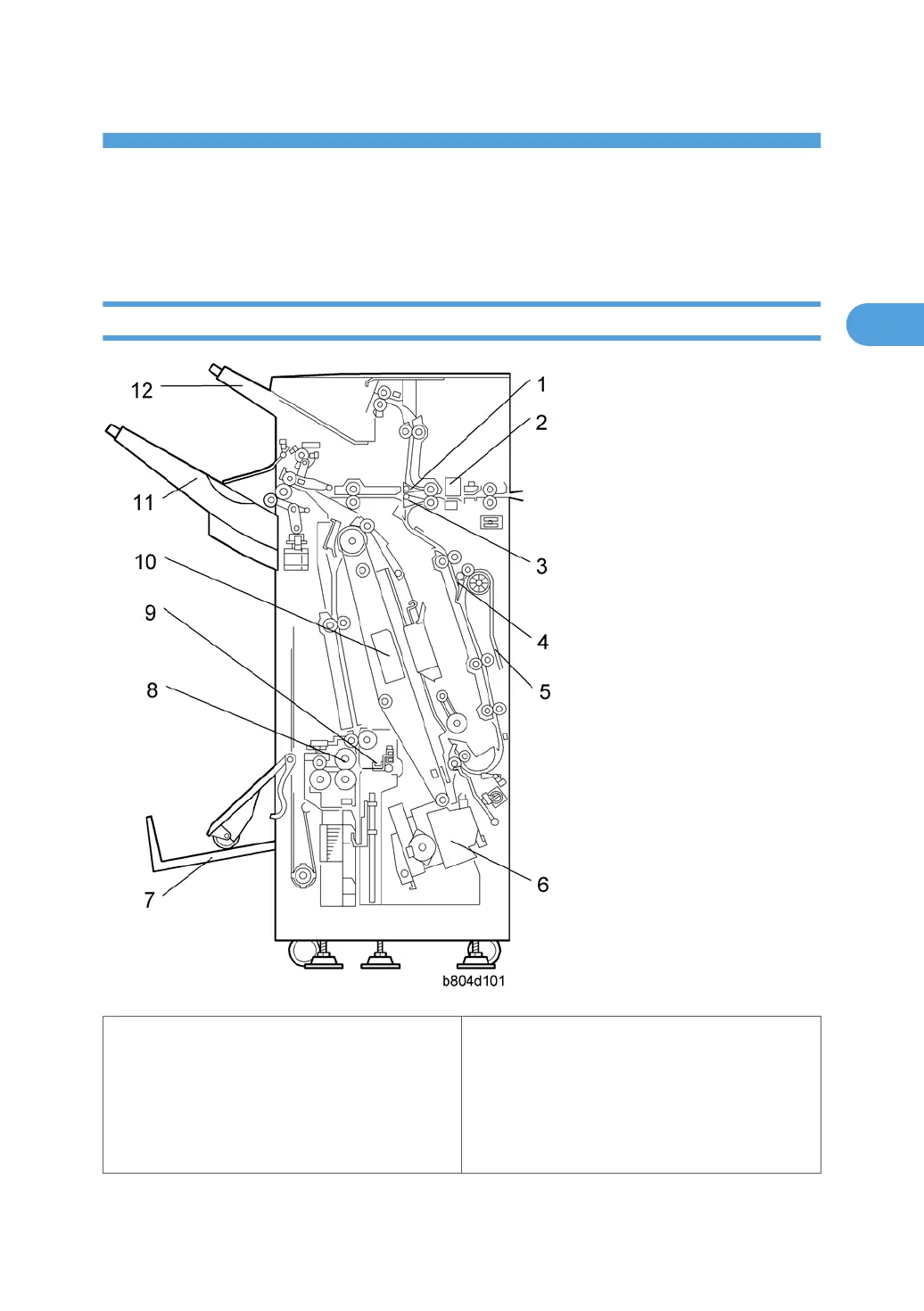

General Layout
1. Proof Tray Junction Gate
2. Punch Unit
3. Stapler Junction Gate
4. Pre-Stack Junction Gate
5. Pre-Stack Tray
7. Lower Tray (Booklet)*
1
8. Folder Rollers*
1
9. Folder Plate*
1
10. Booklet Stapler*
1
11. Upper Tray (Shift)
29
2
