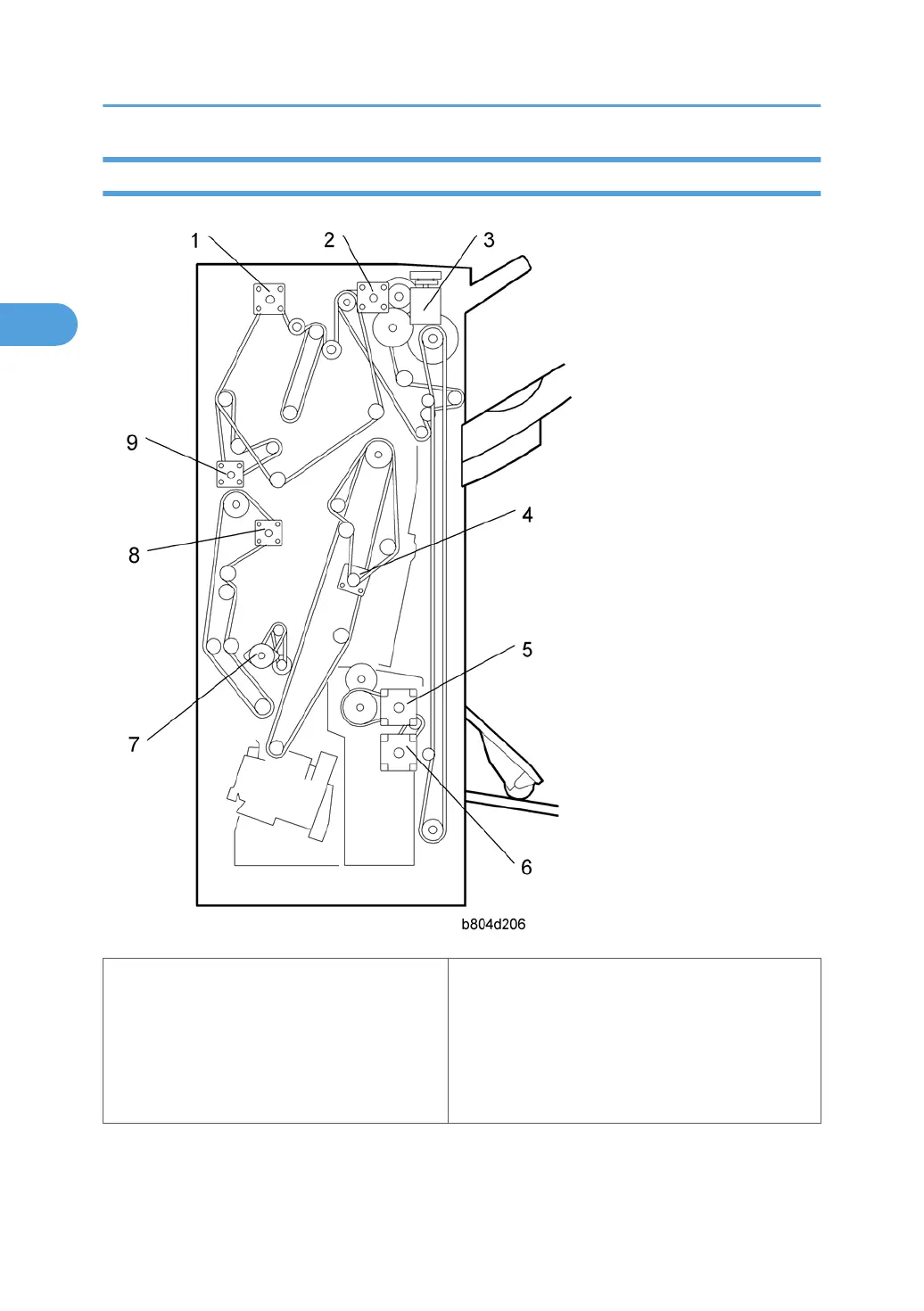

Drive Layout
1. Upper Transport Motor (M2)
2. Upper/Proof Exit Motor (M4)
3. Upper Tray Lift Motor (M21)
4. Feed-Out Belt Motor (M5)
5. Fold Roller Motor*
1
(M12)
6. Folder Plate Motor*
1
(M11)
7. Positioning Roller Motor (M14)
8. Lower Transport Motor (M3)
9. Entrance Motor (M1)
*
1
: B804 Only
2. Detailed Section Descriptions
44
