Booklet Stapling (B804 Only)

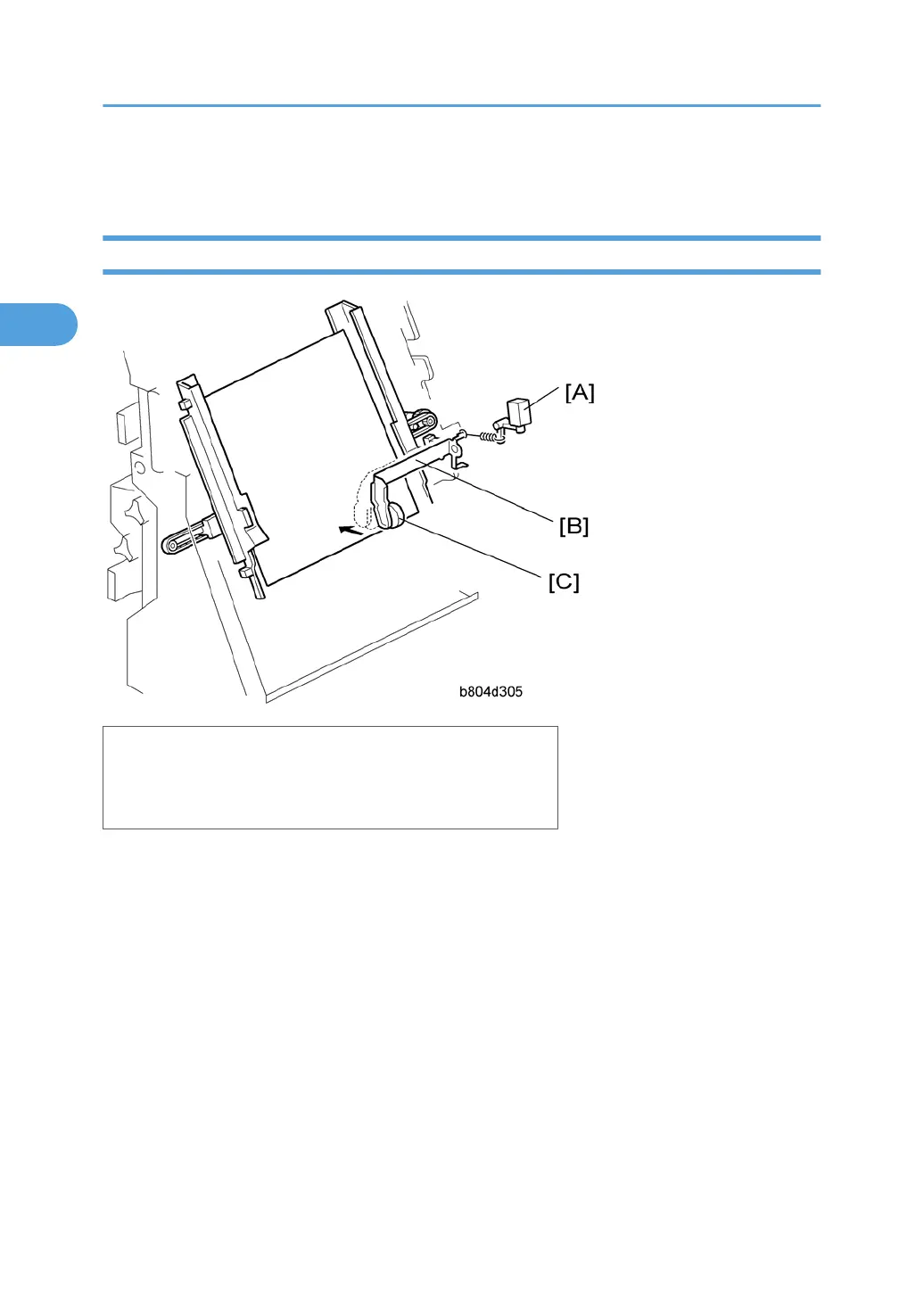

Booklet Pressure Mechanism
[A]: Booklet Pressure Roller Solenoid (SOL5)
[B]: Booklet Pressure Roller Arm
[C]: Booklet Pressure Roller
As soon as the edges are aligned by the positioning roller and the jogger fences, the stack feed out belt
moves.
In booklet mode, immediately after the edges are aligned by the positioning roller and jogger fences, the
booklet pressure solenoid switches on and the booklet pressure roller presses down on the stack until
booklet stapling is finished. This prevents the stack from shifting during stapling.
2. Detailed Section Descriptions
58
