Clamp Roller

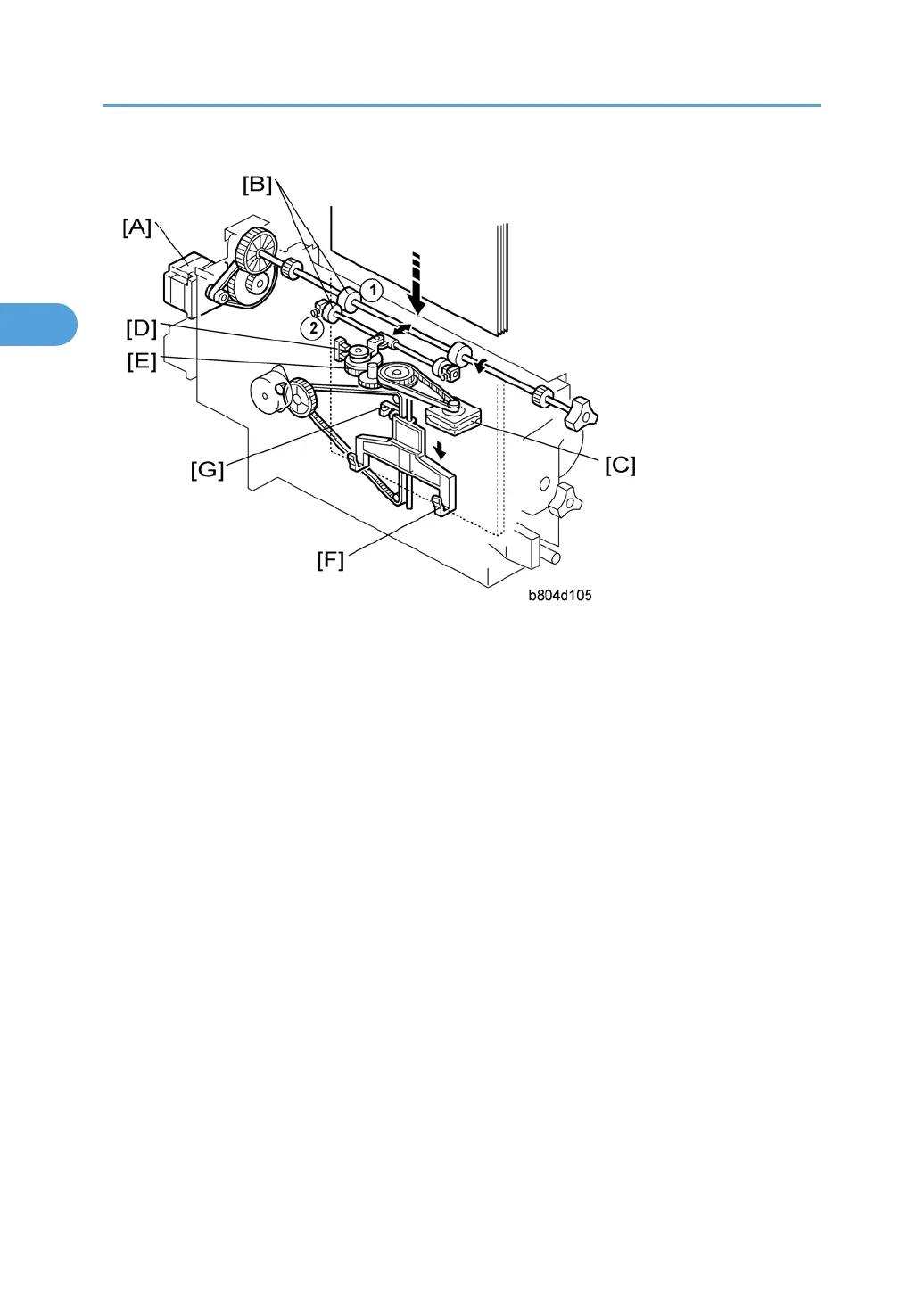

[A]: Fold Roller Motor. Drives the stationary clamp drive roller ¬ as well as the fold rollers (see next page).
[B]: Clamp Rollers.
¬ Clamp Roller – Drive. Rotated by the fold roller motor, this stationary roller feeds the stack down with
the retracting roller closed.
Clamp Roller – Retracting. Opened and closed by the retraction motor [C].
[C]: Clamp Roller Retraction Motor. Operates the clamp roller cam that retracts the retracting clamp roller.
The clamp rollers feed the stack to within 3 mm of the bottom fence when closed and then open to drop
the stack onto the bottom fence.
[D]: Clamp Roller HP Sensor. Controls the rotation of the clamp roller retraction motor and cam that open
and close the retracting clamp roller.
[E]: Clamp Roller Cam. Forces open the spring loaded retracting clamp roller.
Bottom Fence
[F]: Bottom Fence. Raises the booklet stapled stack to the fold position.
[G]: Bottom Fence HP Sensor. Detects the actuator on the bottom fence and stops it at the home position
after folding.
[H]: Bottom Fence Lift Motor. Raises the bottom fence and stapled stack to the fold position prescribed for
the paper size.
