Riello 852T4 - Supply Cables and External Connections Passage

20151763
24
GB
Installation
5.9.1 Supply cables and external connections
passage
All the cables to be connected to the burner must be threaded
through cable grommets.
The use of the cable grommets can take various forms by way of
example we indicate the following mode:
1 Terminal board
2 Bracket for cable shielding
3 Available for cable glands
Cable length
Tab. P
Power supply line from the mains Max. 100 m (100 pF/m)
Load controller X5-03 Max. 30 m (100 pF/m)
Safety loop Max. 30 m (100 pF/m)
Remote reset (lay separated cable) Max. 30 m (100 pF/m)
Other lines Max. 30 m (100 pF/m)
After carrying out maintenance, cleaning or
checking operations, reassemble the hood and all
the safety and protection devices of the burner.

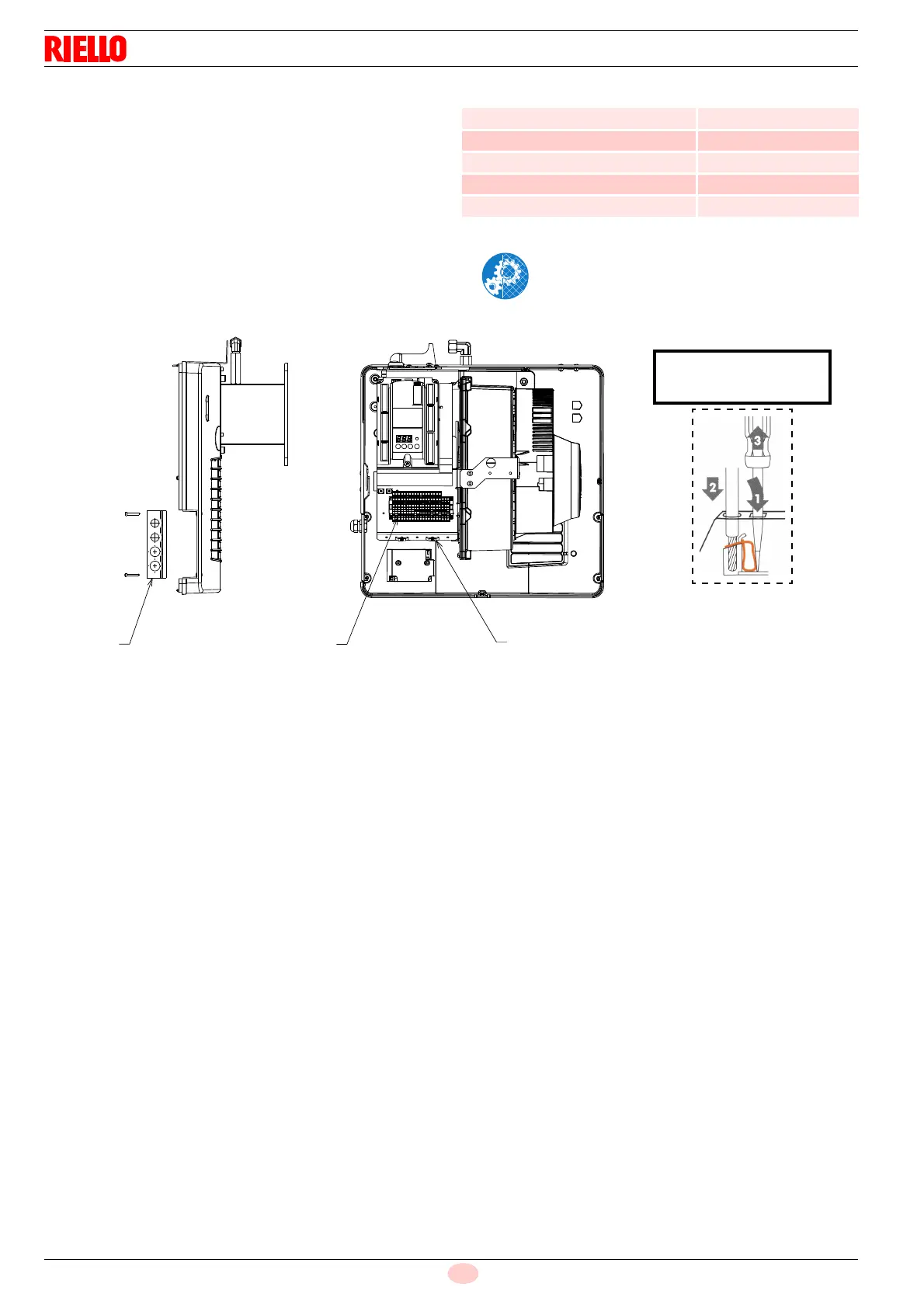

Fig. 21
3
1
2
20152215
System connection
terminal board
S8685
