Riello 852T4 - Backup

20151763
38
GB
Calibration and operation

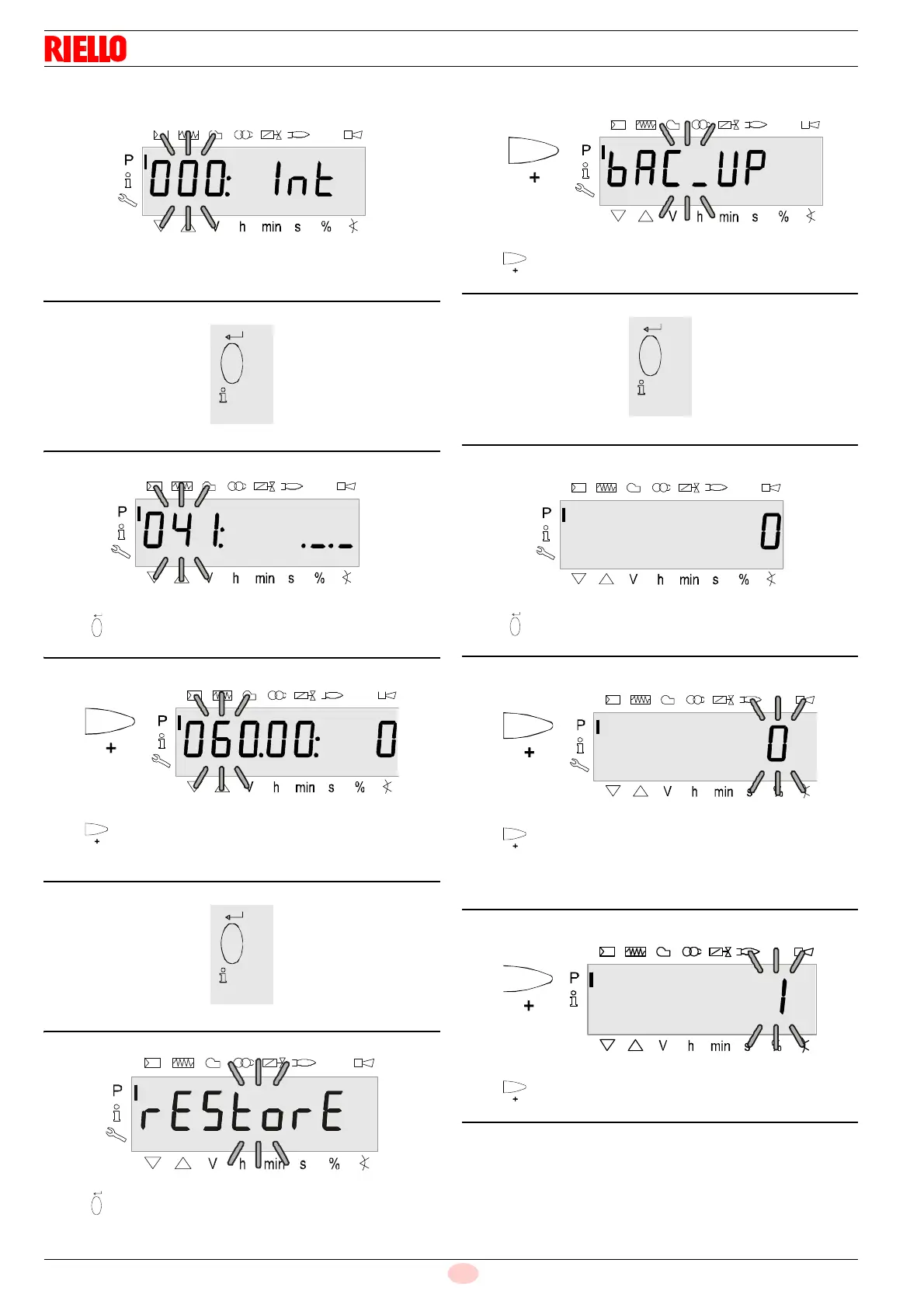

6.7.2 Backup
The parameter 000:blinks.
Display: Parameter 000: blinks, the display Int does not blink.
Press “i/reset” for the group of parameters 041.
Display: Parameter 041: blinks, the display ._._ does not blink.
Press for the parameter 060.
Display: The parameter 060: blinks, the index 00: and the value
0 do not blink.
Press “i/reset” for the parameter rEStorE. Display: The pa-
rameter rEStorE blinks.
Press for the parameter bAC_UP.
Display: The parameter bAC_UP blinks.
Press “i/reset” for the backup process.
Display: The value 0.
Press to shift the value by one position to the left.
Display: The value 0 blinks.
Note:
To detect display faults, the value shifts one position to the left.
Press for the value 1.
Display: The value 1 blinks.
Fig. 86
S9128
Fig. 87
S9063
/
reset
Fig. 88
S9129
Fig. 89
S9130
Fig. 90
S9063
/
reset
Fig. 91
S9131
Fig. 92
S9132
Fig. 93
S9063
/
reset
Fig. 94
S9133
Fig. 95
S9134
Fig. 96
S9149
