Calibration and operation
6.8.3 Parameters with index, with or without direct
display
Example of parameter 701: Actual error at the Service level
See chapter List of error codes!
Press to select the parameter 701.
Display: The parameter 701. blinks, index 00: and the error 4
does not blink.
On the left, the error 701. i displayed blinking, the index 00: does
not blink.
On the right, the error code 4 is displayed.
Example:
Parameter 701., index 00:, error code 4.
Press for 1-3 seconds to display the index 00: for the
blinking error code.
Display: The parameter 701. does not blink, the index 00: blinks,
the error 4 does not blink.
Press , to select the index.
.00 = error code
.01 = start meter reading
.02 = MMI phase at time of fault
.03 = current value at the time of the fault
Example:
Parameter 701., index 01:, start meter reading ._._
Press , to select the index.
.02 = MMI phase at time of fault
Example:
Parameter 701., index 02:, phase 02 = safety switch off.
Press , to select the index.
.03 = current value at the time of the fault.
Example:
Parameter 701., index 03:, phase 02 = value of the current 60%.

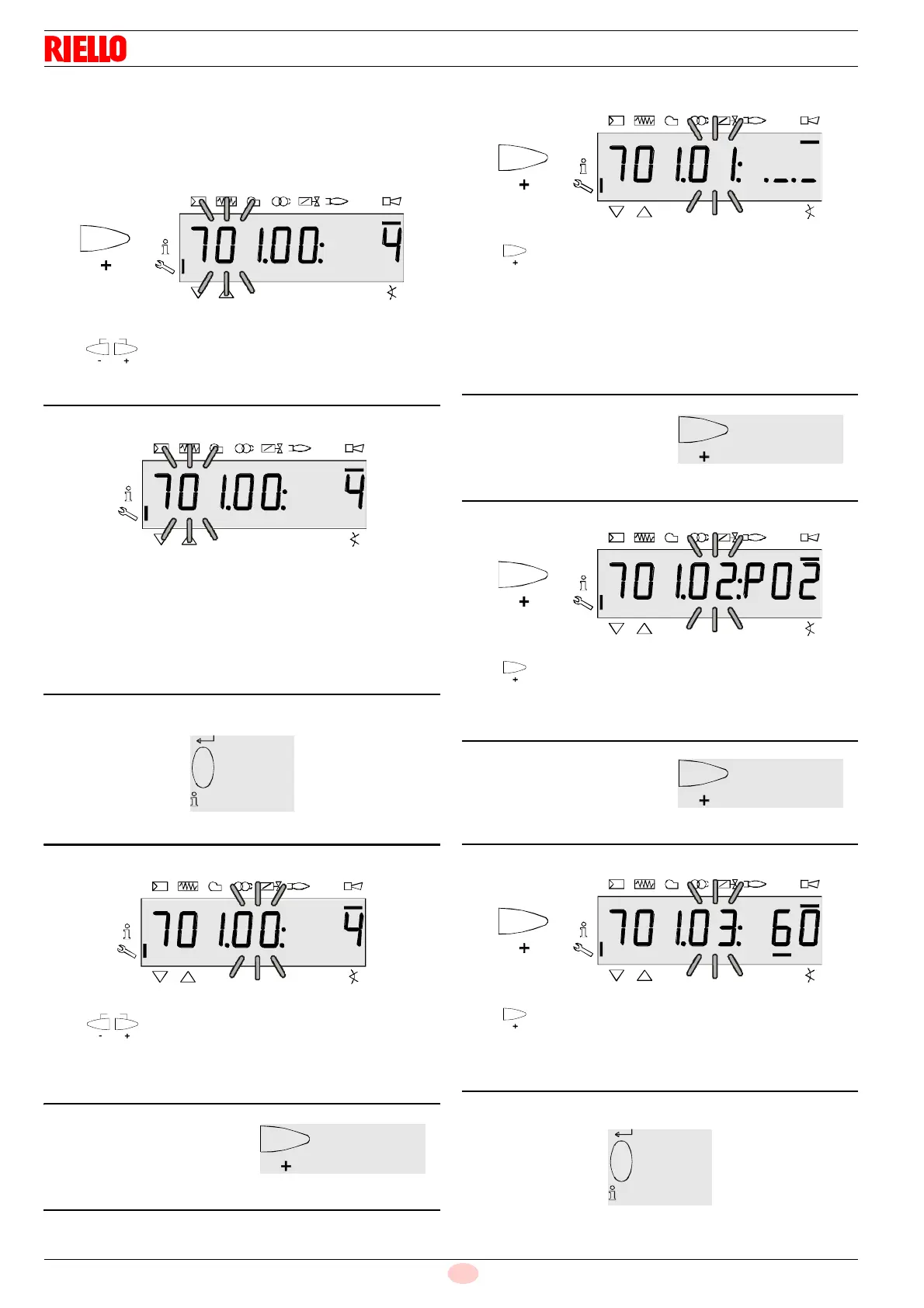

Fig. 141
