Calibration and operation
Press to return to the index.

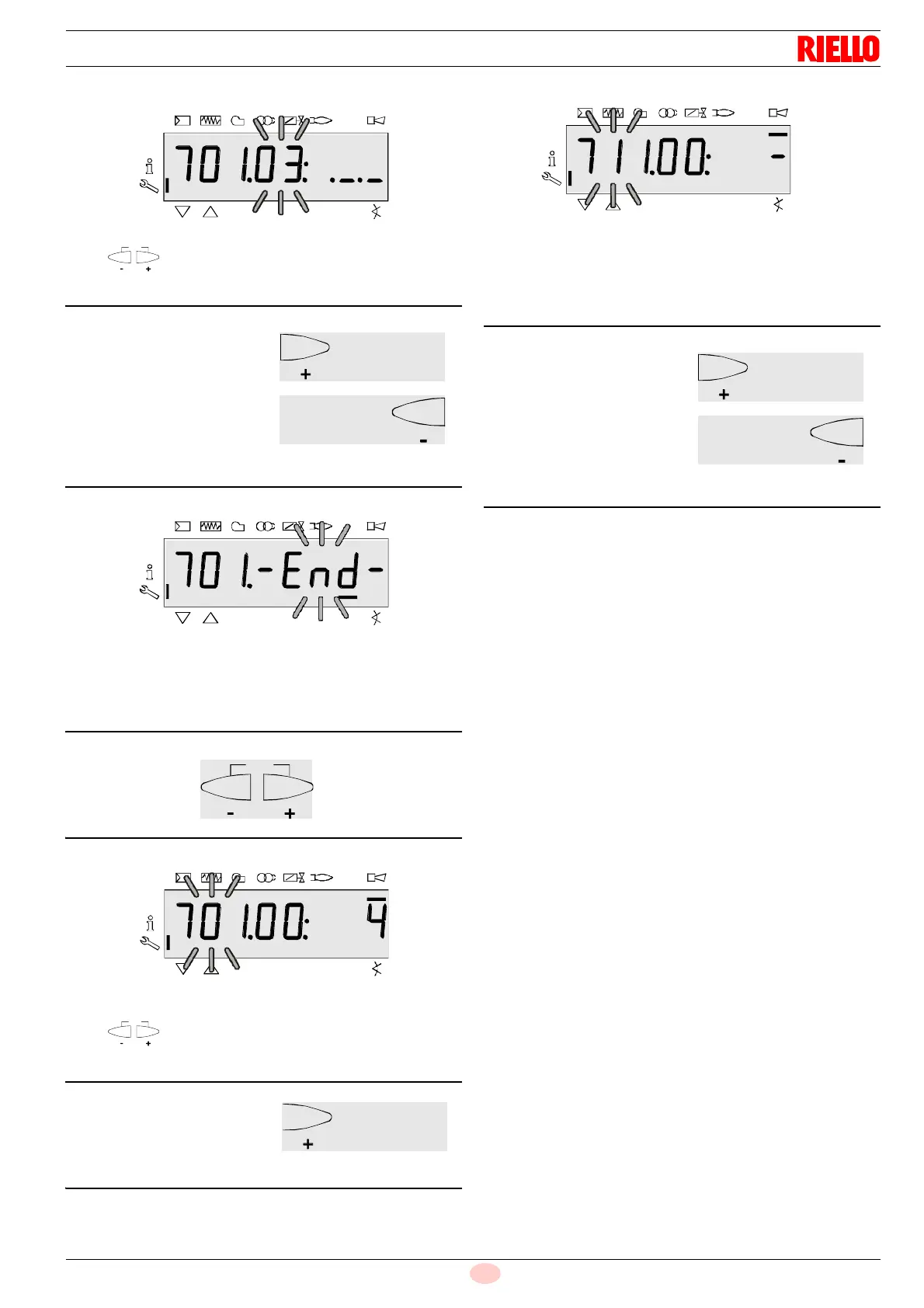

Display: The parameter 701. does not blink, the index 03: blinks,
the characters. _._ do not.
When this screen appears you have reached the end of the Index
level as far as the parameter 701 is concerned.
The display shows – End – blinking.
Press to return to the Parameter level.
Display: The parameter 701. blinks, the index 01: and the diag-
nostic code 4 do not blink.
The parameters cover the period up to the first error recorded
starting from the deletion of the history (max. to parameter 711.).
Example:
Parameter 711., index 00: -
Fig. 152
S9115
P
V
h
mi n s
%
ESC
Fig. 153
S9062
At the successive index
S9058
Returns to the previous index
S9116
P
V
hmins %
Fig. 154
Fig. 155
S9117
ESC
Fig. 156
S9109
P
V
h
mi n s
%
ESC
Fig. 157
To the oldest successive error
S9062
S9118
P
Vhmins%
Fig. 158
Fig. 159
S9062
At the start of the Service level
S9058
At the end of the Service level
