Technical description of the burner
4.7 Firing rates
The MAXIMUM OUTPUT is chosen from within the diagram area
(Fig. 2).
The MINIMUM OUTPUT must not be lower than the minimum
limit of the diagram:
Model kW
RS 300/E BLU 500
RS 400/E BLU 800
RS 500/E BLU 1000
RS 650/E BLU 1400
RS 800/E BLU 1200
WARNING
The firing rate value (Fig. 2) has been obtained
considering an ambient temperature of 20C, an
atmospheric pressure of 1013 mbar (approx. 0 m
a.s.l.), and with the combustion head adjusted as
shown on page 21.
Thermal power – kW
400 800 1200 1600 2000 2400 2800 3200 3600 4000 4400 4800
0
2
4
6
8
10
12
14
16
68006400
600056005200
18
400 1200 2000 2800 3600 4400
0
2
4
6
8
10
12
14
16
18
20
mbar
22
24
5200 6000 6800 7600
8400
25
26

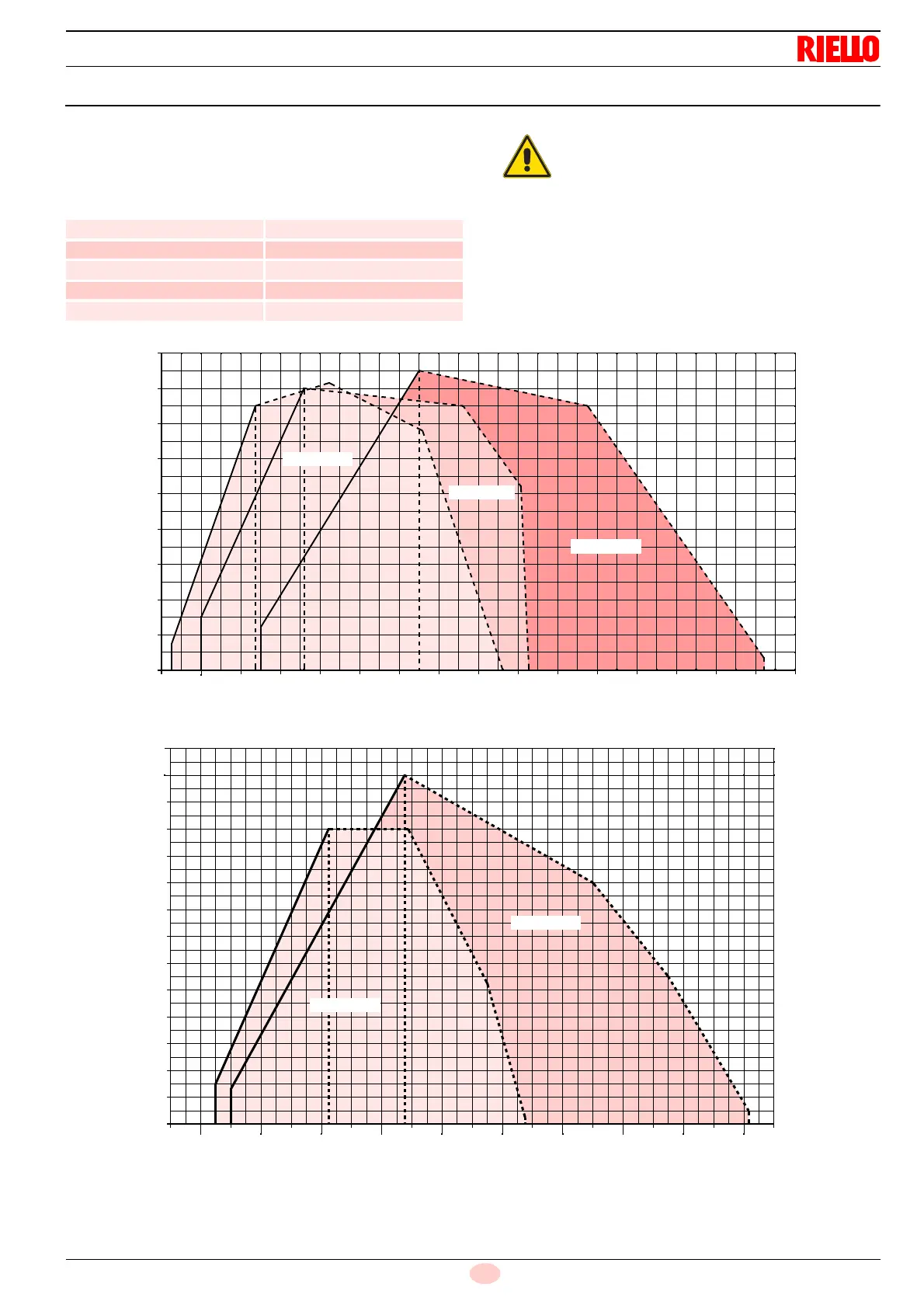

Fig. 2
Thermal power – kW
RS 400/E
RS 300/E
Combustion chamber
pressure - mbar
RS 500/E
RS 800/E
D8128
RS 650/E
D11730
Combustion chamber
pressure - mbar
