Rigol DHO900 Series User Manual

T1
T2
Data Source
Clock Source
T2 is the hold time
T1 is the setup time
Edge
The data type is H

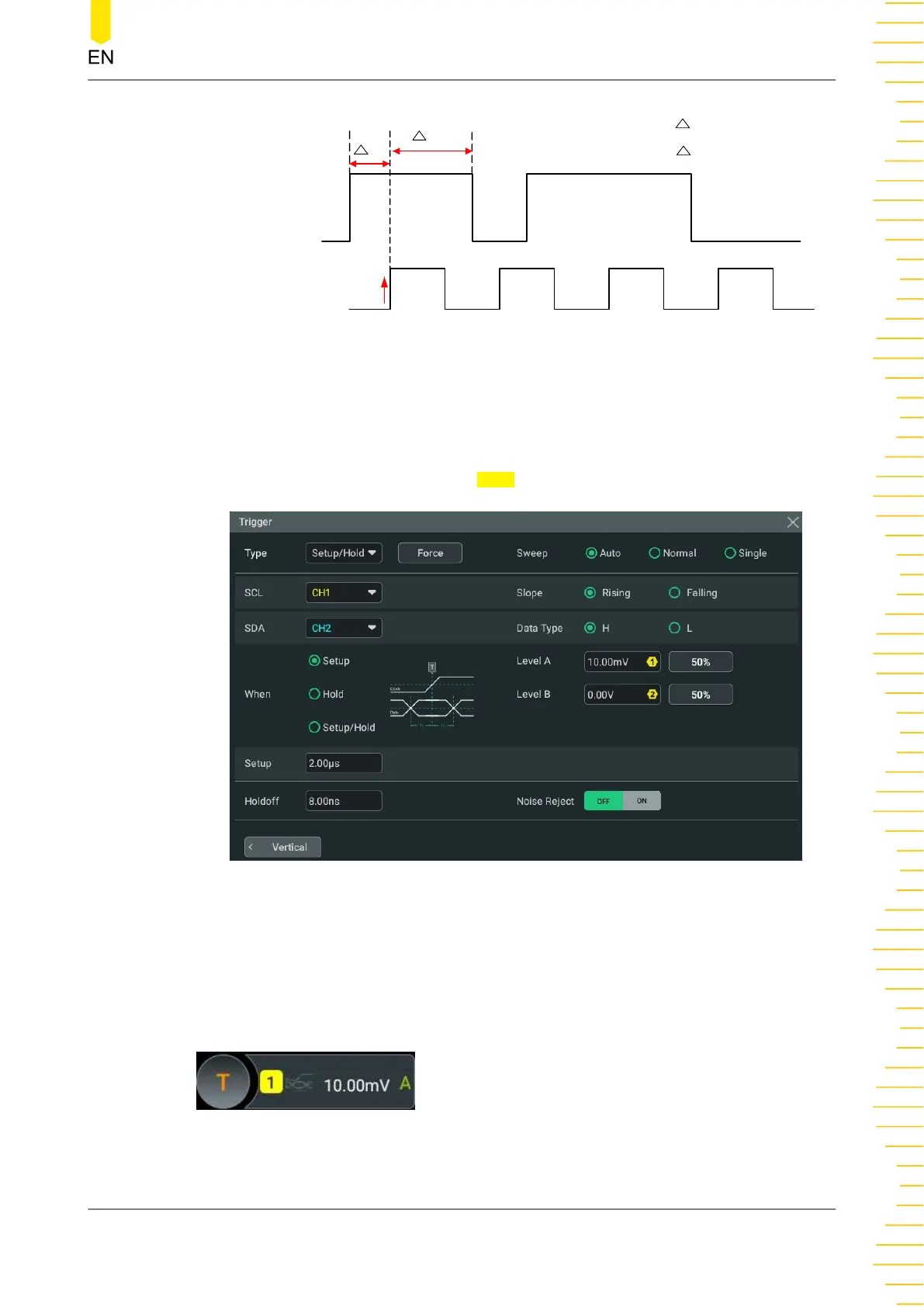

Figure 8.20 Setup/Hold Trigger
Trigger Type
Click or tap the drop-down button of Type to select "Setup/Hold".
Figure 8.21 Setup/Hold Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the
trigger type, source, and level) is displayed in the trigger information label at the top
of the screen, as shown in the figure below. The information will change based on the
trigger settings.
Triggering the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DHO900 User Guide
91

Rigol DHO900 Series Specifications

General

Vertical Resolution	12-bit
Resolution	12-bit
Input Coupling	DC, AC, GND
FFT Points	Up to 1 Mpts
Analog Channels	4
Memory Depth	50 Mpts per channel
Interfaces	USB Host, USB Device, LAN, HDMI
Optional Features	Decoders
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Runt, Window, Serial
Math Functions	+, -, ×, /, FFT
Operating Temperature	0°C to +40°C
Input Impedance	1 MΩ
