10.2.3 Measurement Settings

In the Measure menu, click or tap the Setting button to enter the measurement

setting menu.

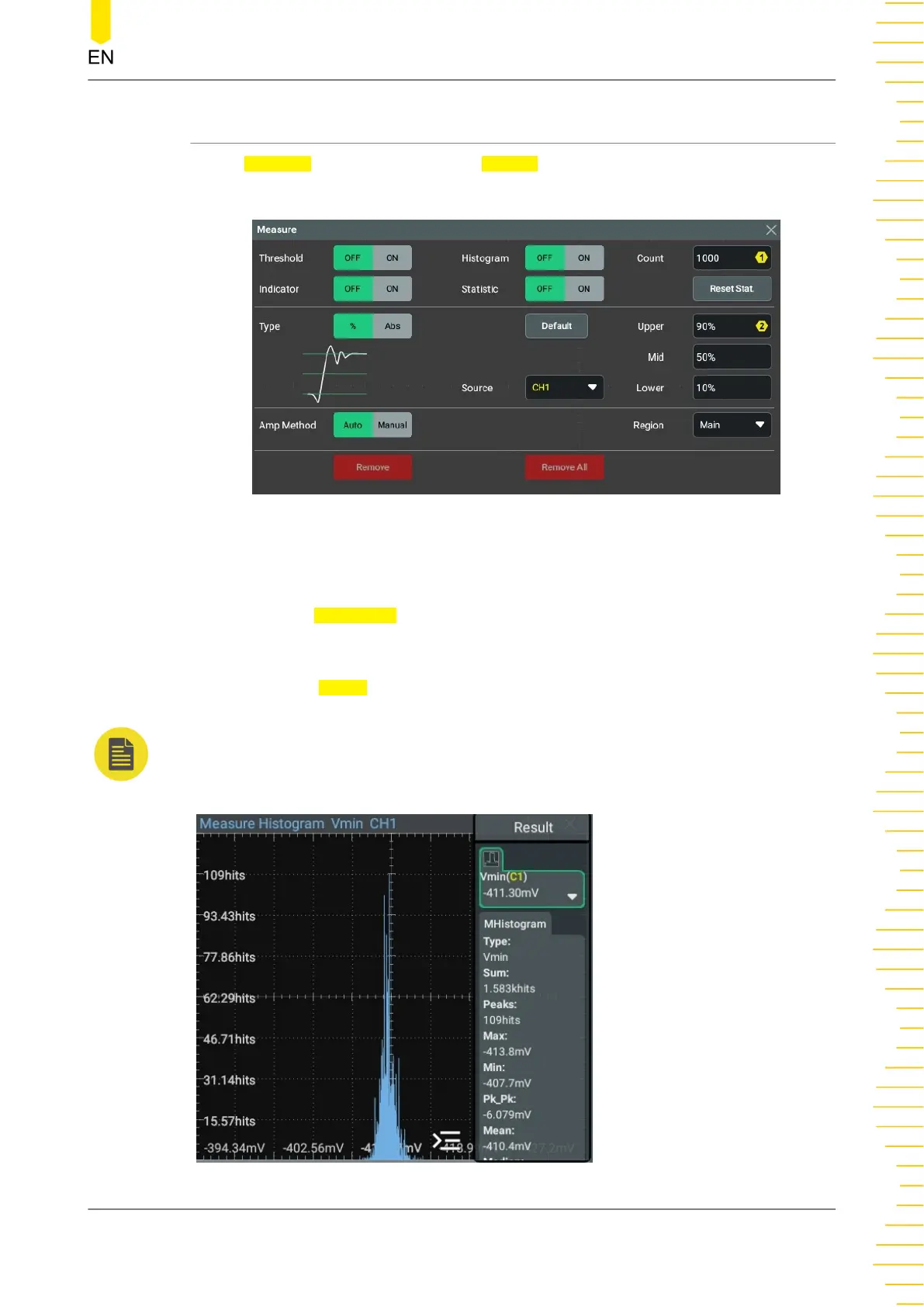

Figure 10.7 Measurement Settings Menu

Histogram

Click or tap the Histogram on/off switch to enable or disable the histogram function.

After the histogram function is enabled, the Measure Histogram view is displayed on

the screen, as shown in the figure below. The histogram analysis result label is

displayed in the

Result sidebar (refer to

Histogram Analysis Results

NOTE

Add at least one measurement item (

Select the Measurement Item

) before enabling the

Measure Histogram function.

Measurements

143
