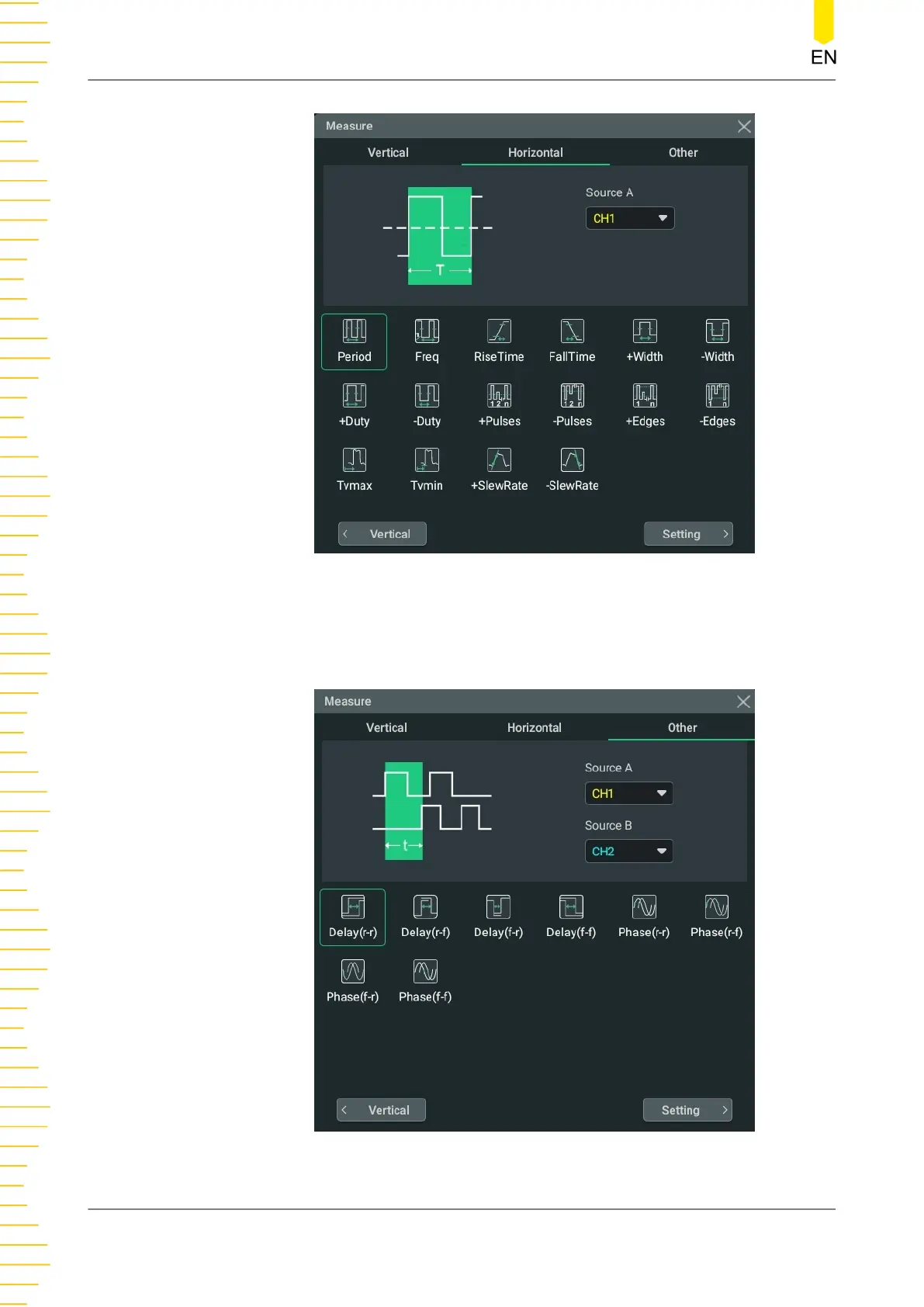

Figure 10.5 Horizontal Measurement Items

• Other: Delay (r-r), Delay (r-f), Delay (f-r), Delay (f-f), Phase (r-r), Phase (r-f),

Phase(f-r), and Phase (f-f).

Figure 10.6 Other Measurement Items

Measurements

DHO900 User Guide

142
