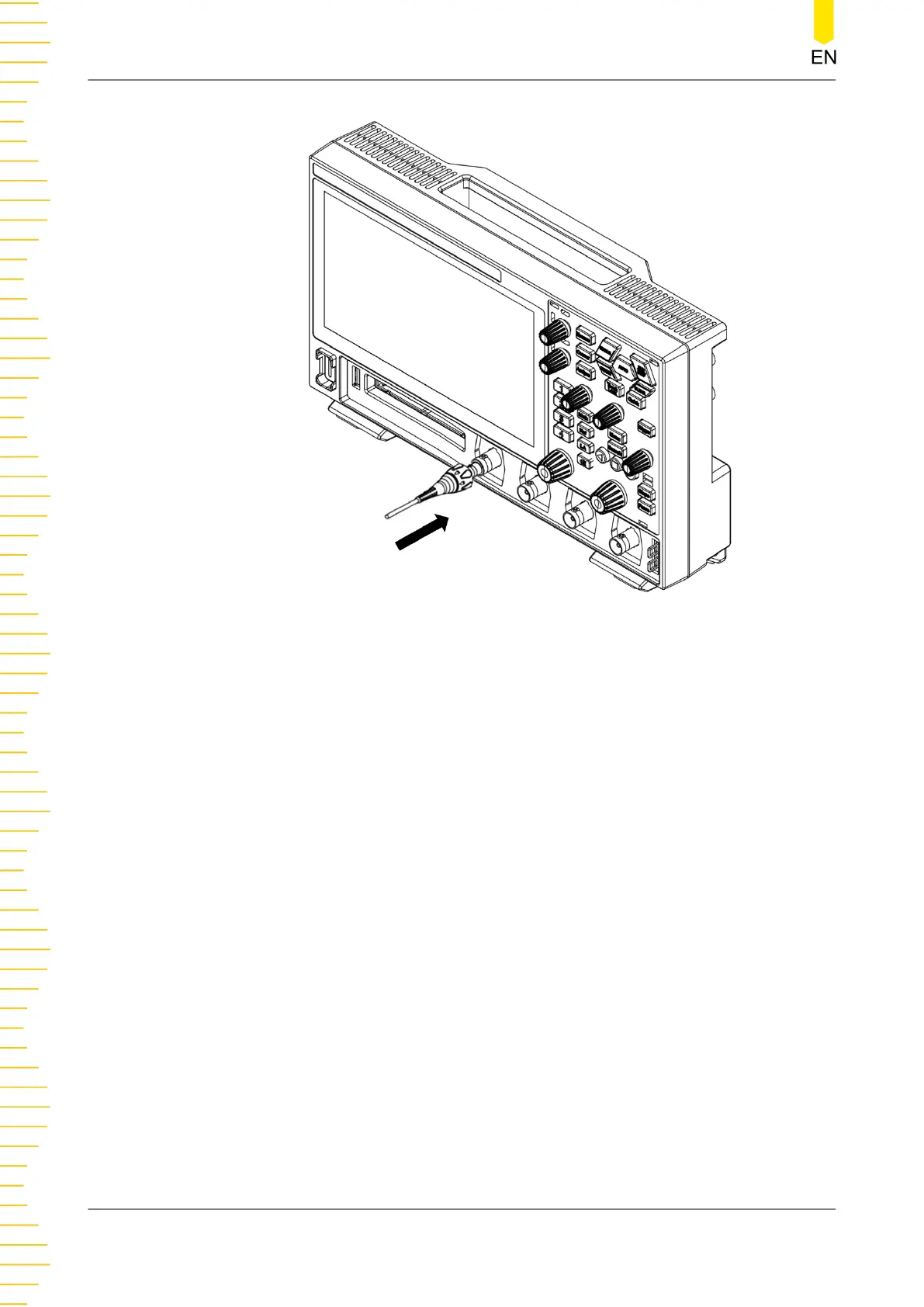

Figure 4.5 Connecting the Passive Probe

After you connect the passive probe, check the probe function and probe

compensation adjustment before making measurements. For details, please refer to

Function Inspection

and

Probe Compensation

Connect the Logic Probe

1. Connect the output terminal of the logic probe to the digital channel input

terminal on the front panel of the oscilloscope in the correct direction, as shown in

the figure below.

2. Connect the other terminal of the logic probe to the signal terminal under test.

DHO900 provides the optional PLA2216 active logic probe. To cater to different

application scenarios, PLA2216 provides two methods to connect the signal under

test. For details, refer to

PLA2216 Active Logic Probe User Guide

Quick Start

DHO900 User Guide
