3. General waveform display mode
Press Wave Disp button in general display mode or press in focus
waveform display mode to enter into general waveform display mode. The state
of Wave Disp button light varies with waveform display mode. The waveforms
from all three channels could be displayed simultaneously in this mode.

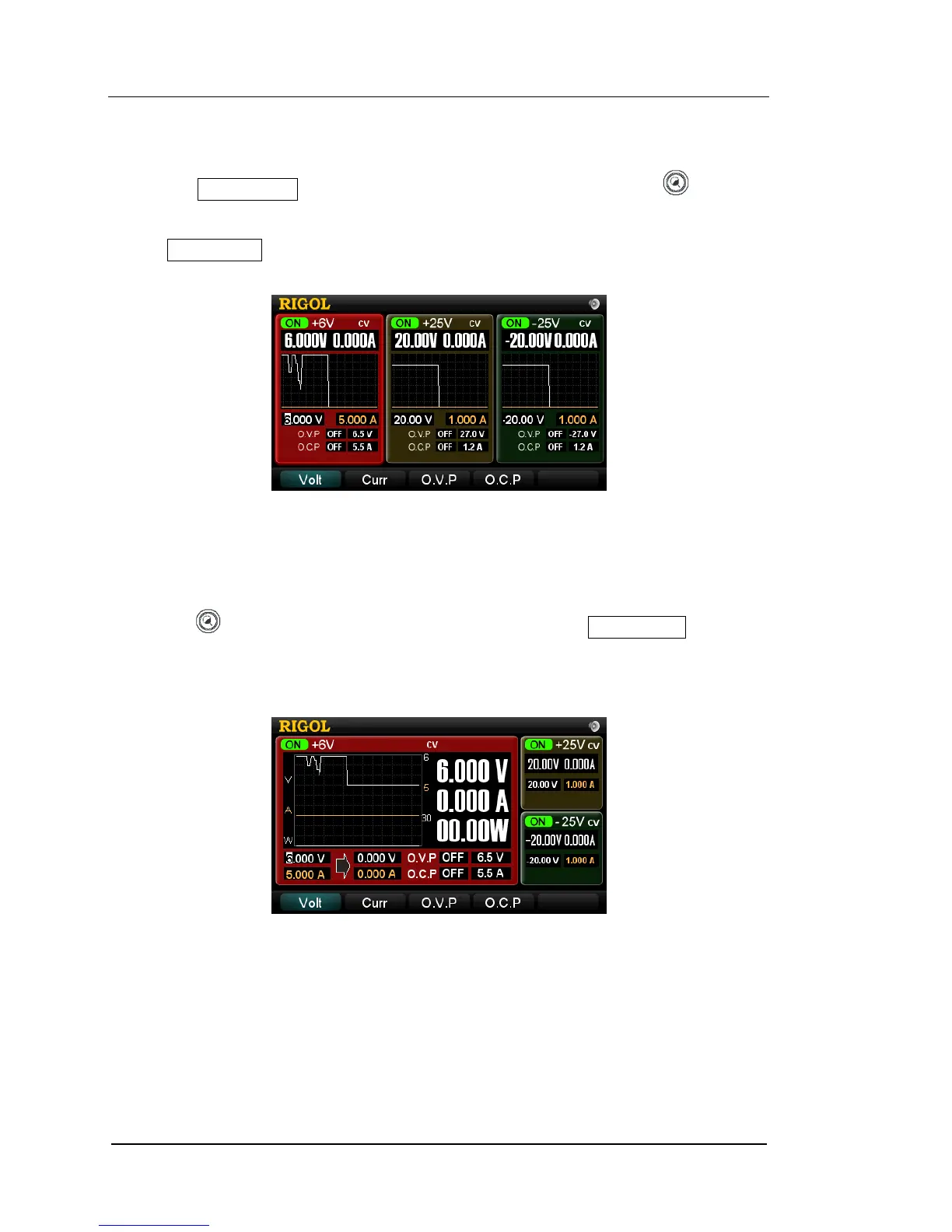

Figure 1-7 General waveform display mode
4. Focus waveform display mode
Press in general waveform display mode or press Wave Disp button in
focus display mode to enter into focus waveform display mode. In this mode, the
waveform and channel output state are displayed clearly.
Figure 1-8 Focus waveform display mode
