Chapter 1 Quick Start RIGOL
User’s Guide for DP1308A
1-11

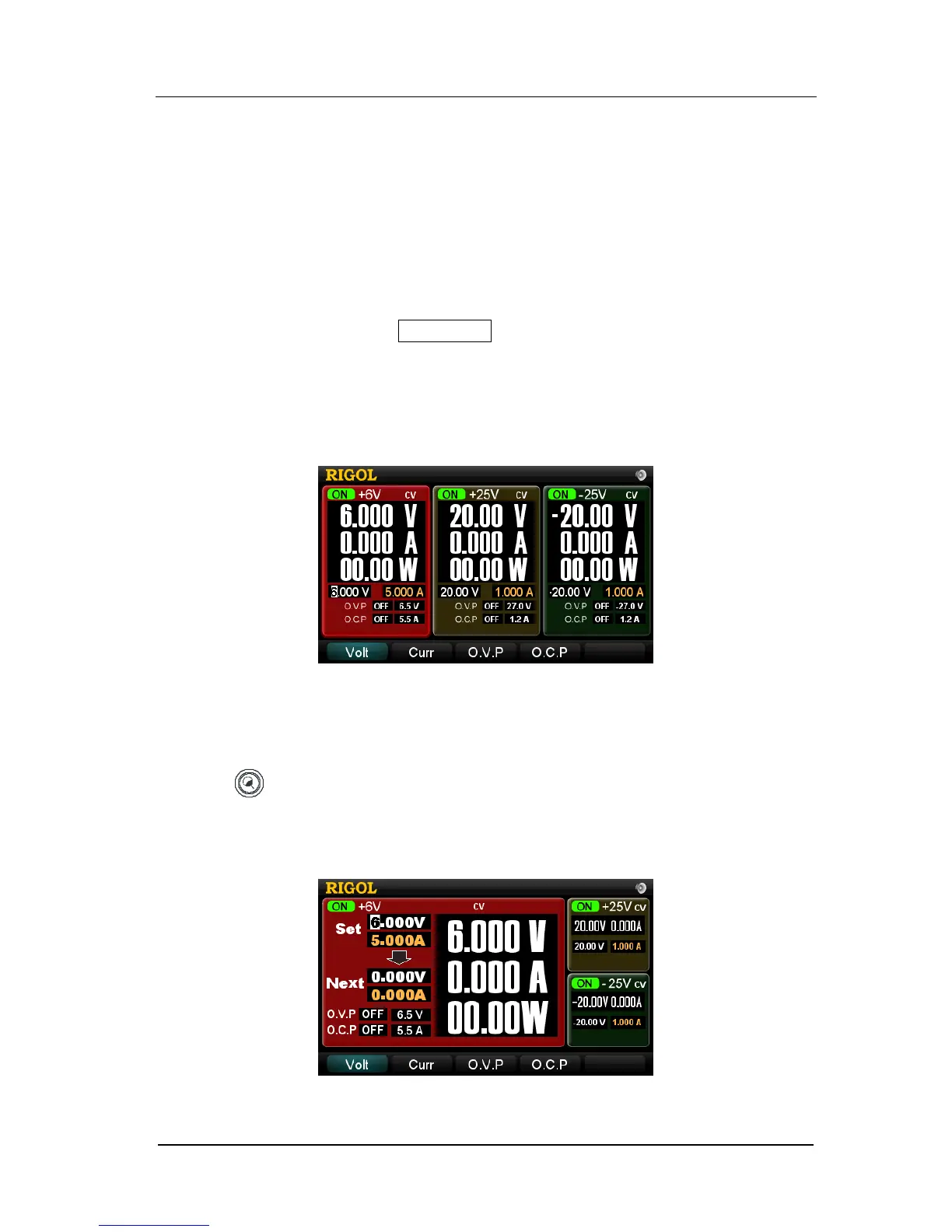

Display Modes
DP1308A provides four display modes: general display mode, focus display
mode, general waveform display mode and focus waveform display mode.
The output current and voltage can be displayed in waveforms by DP1308A, for the
details , please see general waveform display mode (Figure 1-7) and focus waveform
display mode (Figure 1-8). The Wave Disp button light will go on regardless of which
waveform display mode is active until this function is disabled.
1. General display mode
In the following figure, the three channel outputs are shown on screen abreast,
and the selected channel is highlighted and stay in breath state.
Figure 1-5 General display mode
2. Focus display mode
Press to enter into focus display mode from general display mode; to exit,
press the button again. In this mode, the parameters and output state of selected
channel are displayed clearly.
Figure 1-6 Focus display mode
