I/O Setting
DP1308A provides LAN, USB and GPIB three interfaces for communication; you can
set and review the related parameters through setting interface.
1. LAN
Press I/O → LAN, enter the following interface.

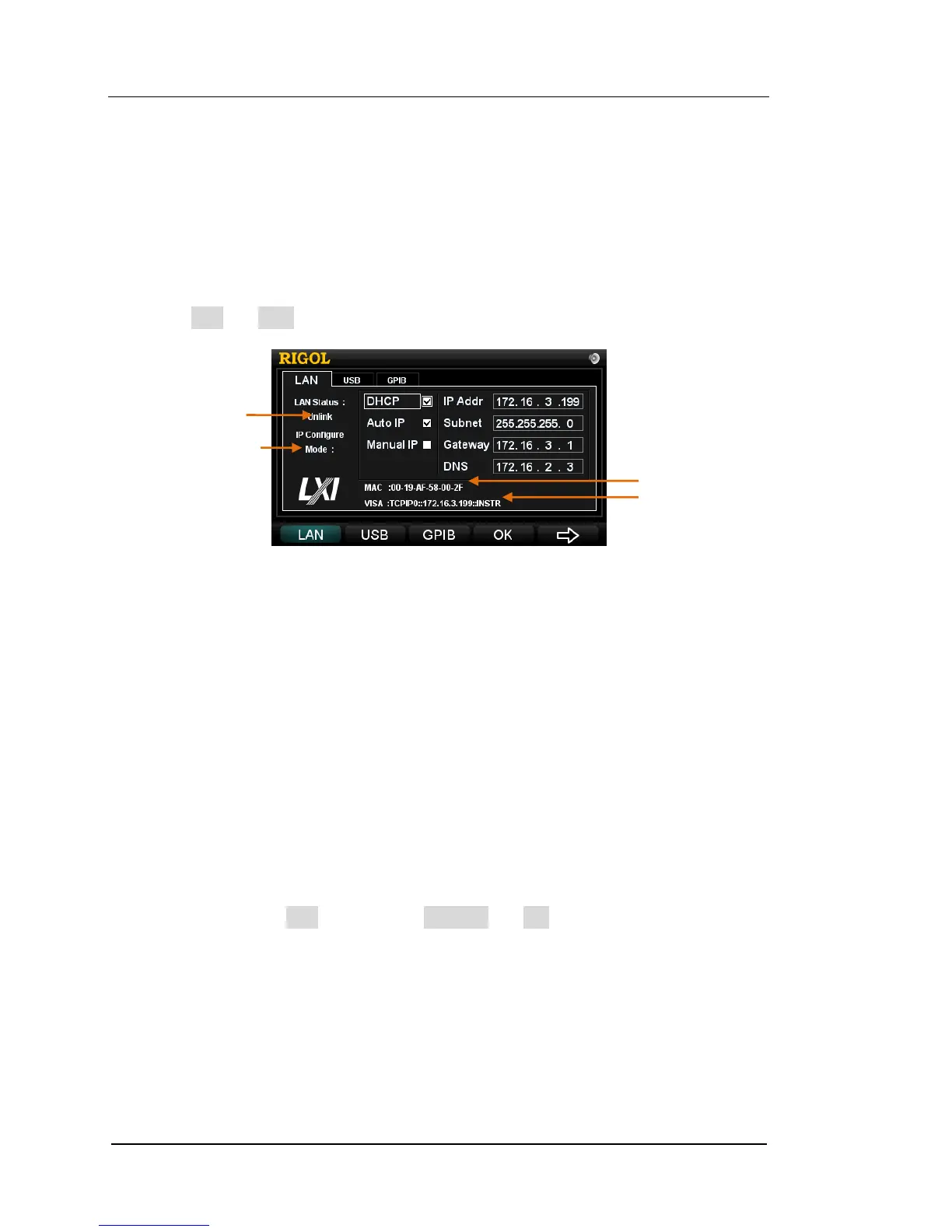

Figure 2-22 Set the LAN
General condensed summaries:
 If “DHCP” is selected, the instrument will automatically assign “IP Address”,
“Subnet”, “Gateway” and “DNS Server”.
 If “Auto IP” is selected, the instrument will automatically assign “IP Address” and
“Mask”.
 If “Manual IP” is selected, “IP Address”, “Mask”, “Gateway” and “DNS Server” has
to be set manually.
 If both “DHCP”, “Auto IP” and “Manual IP” are selected, the priority is from high to
low: “DHCP”, “Auto IP” and “Manual IP”.
Default settings:
In the second page of I/O menu, press Default → OK to recall the default setting
of LAN. See the following figure.
Net Connection:
Link/Unlink
IP configuration
mode:
DHCP/ Auto IP/Manual
IP
MAC Address
VISA Name
