Rigol DP1308A - Front;Rear Panels and User Interface; Front Panel

Chapter 1 Quick Start RIGOL
User’s Guide for DP1308A
1-3
Front/Rear Panels and User Interface
Front Panel

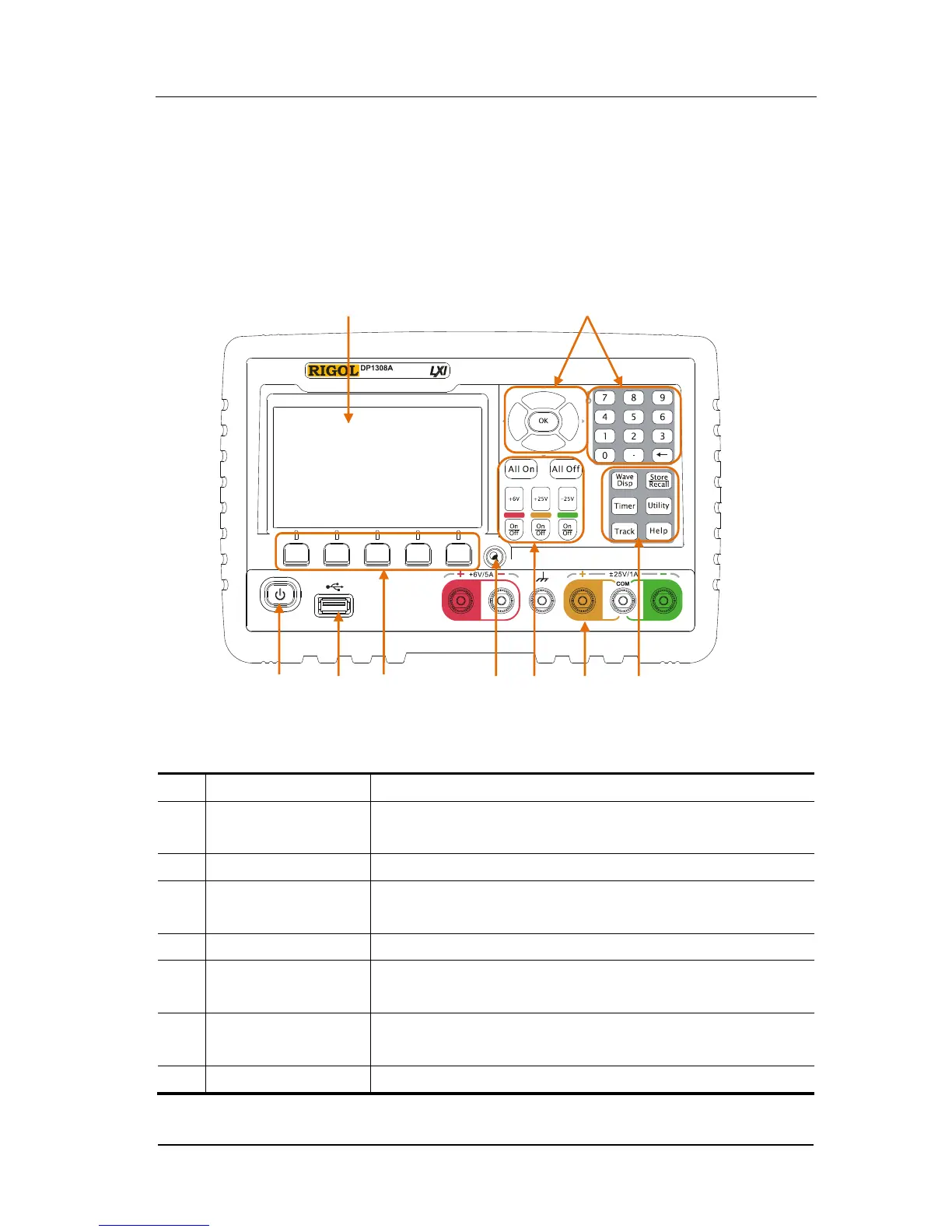

Figure 1-1 Front panel overview
①
LCD
Display user interface
②
Parameters input
area
Include digital keyboard, unit key (direction key) and
enter key
③
Power button
Turn on (or off) the instrument
④
USB Host port
Connect with external USB device as a “main
equipment”
⑤
Menu softkey
With different functions in different menus.
⑥
Display modes
switching button
Switch display modes between General and Focus
⑦
Channel setting
button
Switch channels, enable/disable channel output
⑧
Output terminal
Channel output connector
V
mV
mA
A
Programmable DC Power Supply
③ ④ ⑤ ⑥ ⑦ ⑧ ⑨
① ②
