Rigol DP1308A User Manual

RIGOL Chapter 2 Front Panel Operations
User’s Guide for DP1308A
2-8
Constant Current Output
For example:
Choose the +6V channel; set the voltage to 6V, the current to 5A and the load to 1Ω
separately.
Because 6V/1Ω=6A>5A and 5A× 1Ω＝5V<6V, so the Constant Current Output of the
channel is 5A, 5V.
Operation Steps:
1. Power on
Press to start-up the instrument.
2. Choose the Channel
Press +6V to enable +6V channel, at present, the channel is highlighted on the
screen (in breath state).
3. Set the voltage
Press Volt and set the voltage to 6 V.

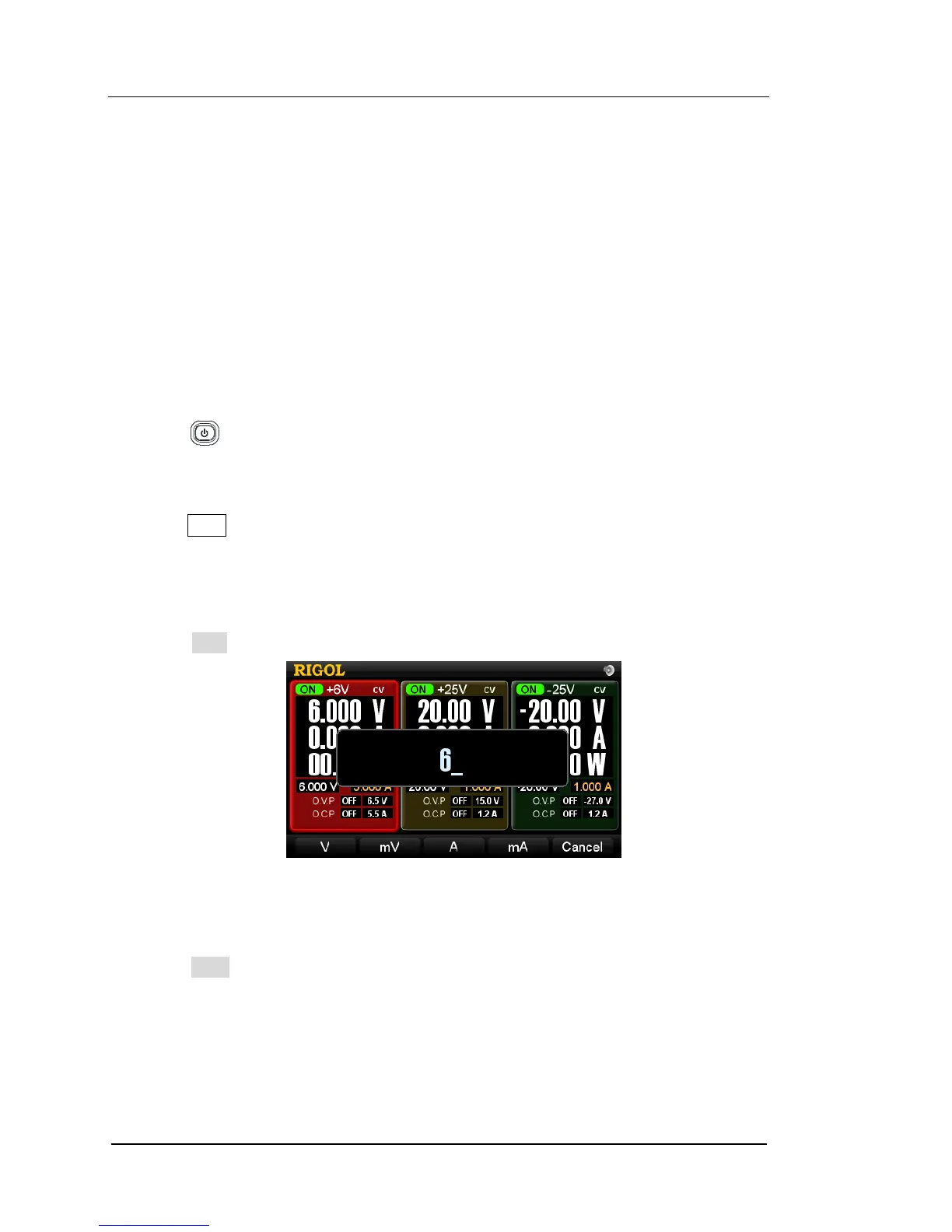

Figure 2-7 Set the voltage
4. Set the current
Press Curr and set the current to 5 A.
