User’s Guide for DS1000B series
To set up the channel bandwidth limit
Take Channel 1 for an example, input a signal containing high frequency component.
Press CH1ėBW LimitėOFF, to set up bandwidth limit to “OFF” status. The
oscilloscope is set to full bandwidth and passing the high frequency component in
the signal.

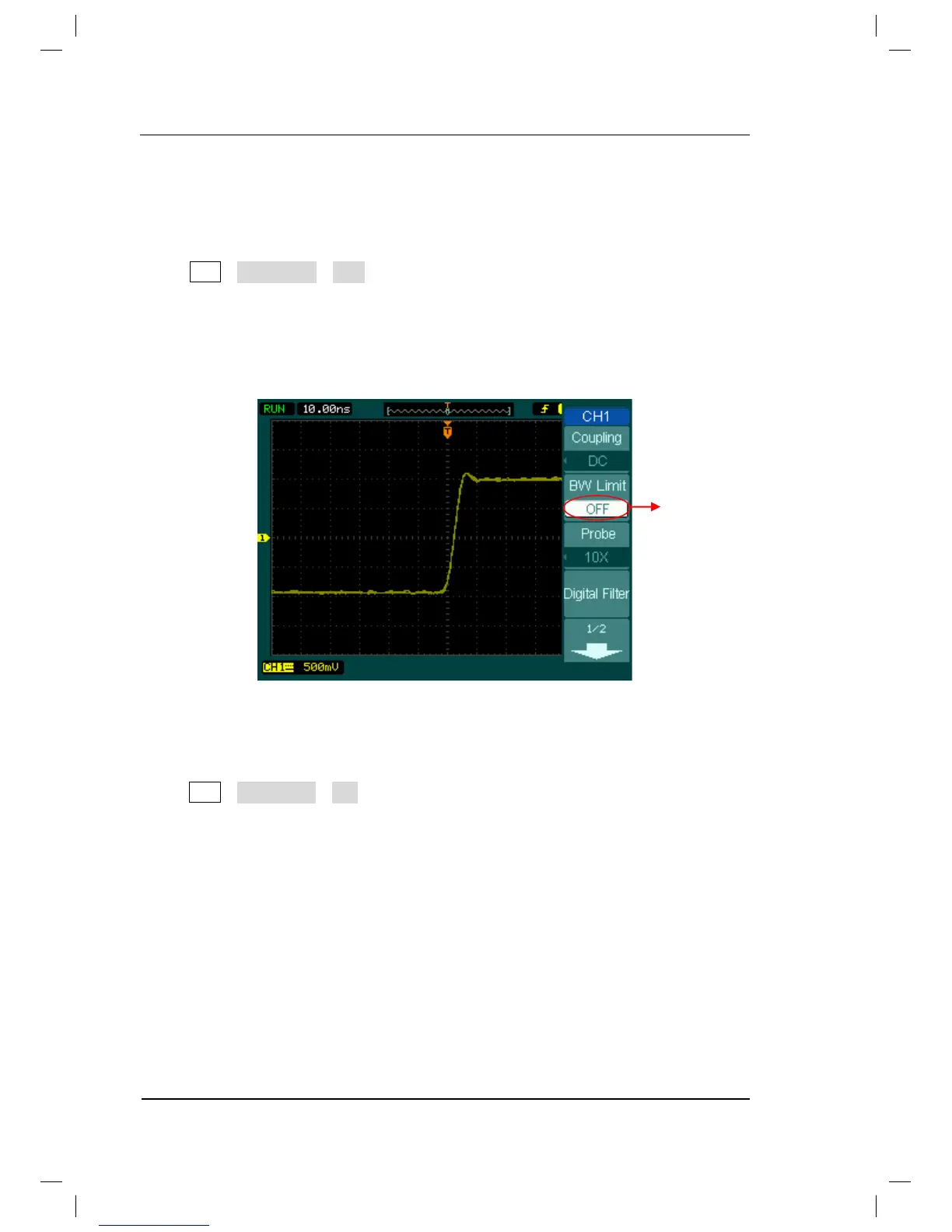

The waveform is displayed as Figure 2-6:
Figure 2-6
Turn off the BW limit
Press CH1ėBW LimitėON, to set up bandwidth limit to “ON” status. It will
restraint the frequency component higher than 20MHz.
The waveform is displayed as Figure 2-7:
