RIGOL
© 2008 RIGOL Technologies, Inc.
User’s Guide for DS1000B series
2-12

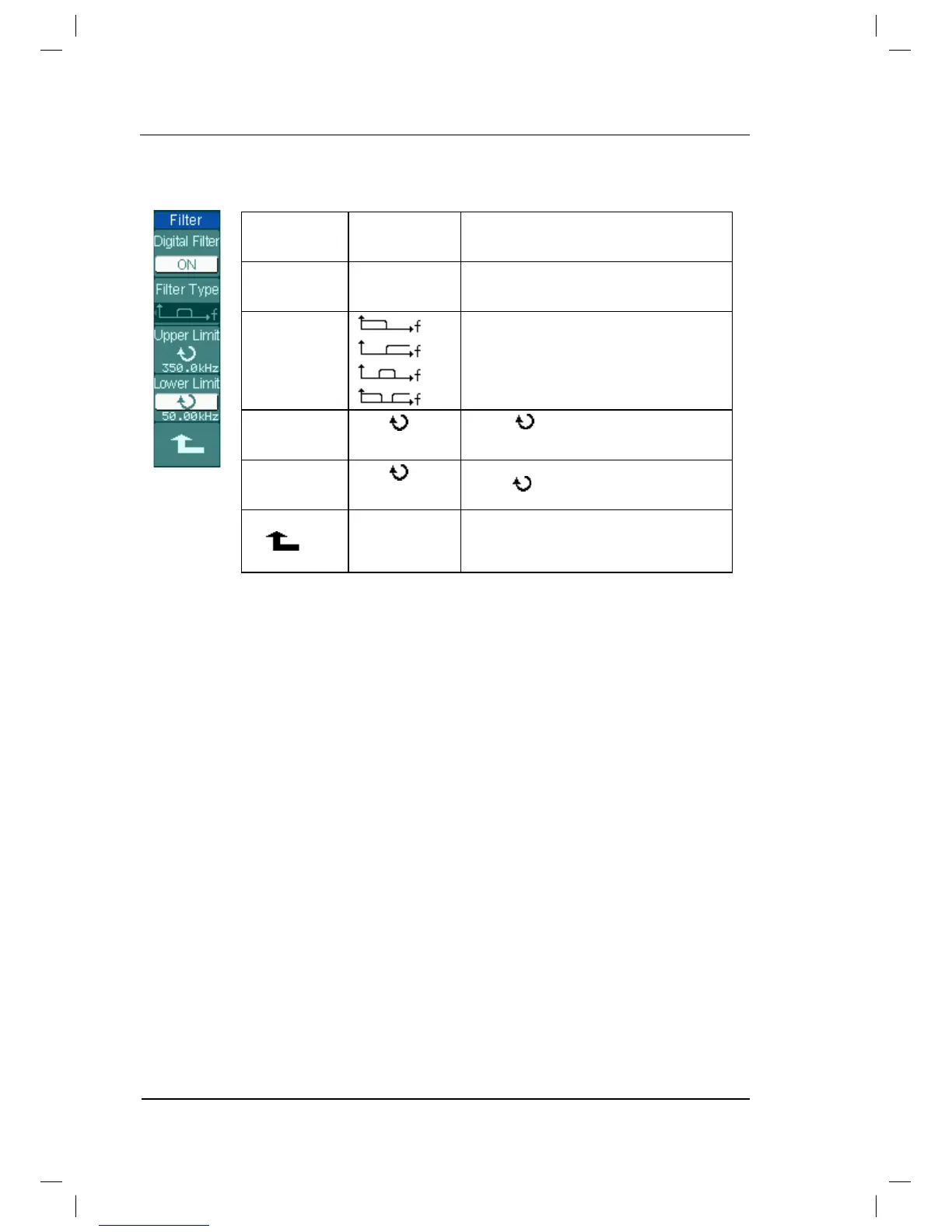

Figure 2-14 Table 2-4 The Filter menu
Menu
Settings
Comments
Digital Filter
On
Off
Turn on the digital filter.
Turn off the digital filter.
Filter Type
Setup as LPF (Low Pass Filter).
Setup as HPF (High Pass Filter).
Setup as BPF (Band Pass Filter).
Setup as BRF (Band Reject Filter).
Upper limit
<frequency>
Turn ( ) knob to set upper limit
high limit.
Lower limit
<frequency>
Turn (
) knob to set lower limit.
Back to higher level menu (The
followings are the same, no more
explanation).
