To configure the Digital Filter
Press CH1ė Digital filter, it will display the digital filter menu. Turn the digital filter
on or off as shown in the following figure. Turn ( ) knob to adjust the upper and
lower limit of frequency after turning on the digital filter.

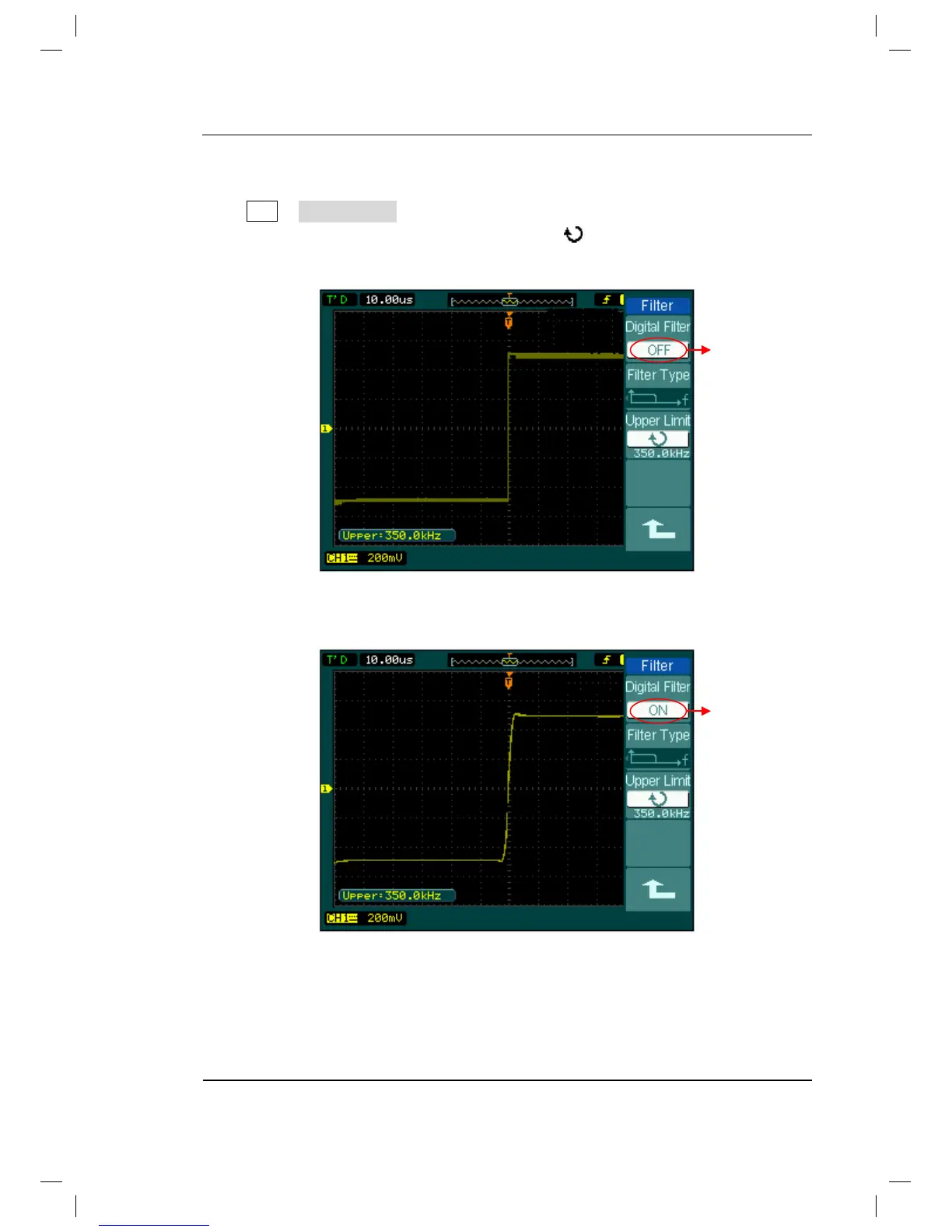

Figure 2-12
Turn off digital filter
Figure 2-13
Turn on digital filter
Turn off digital
filter
Turn on digital
filter
