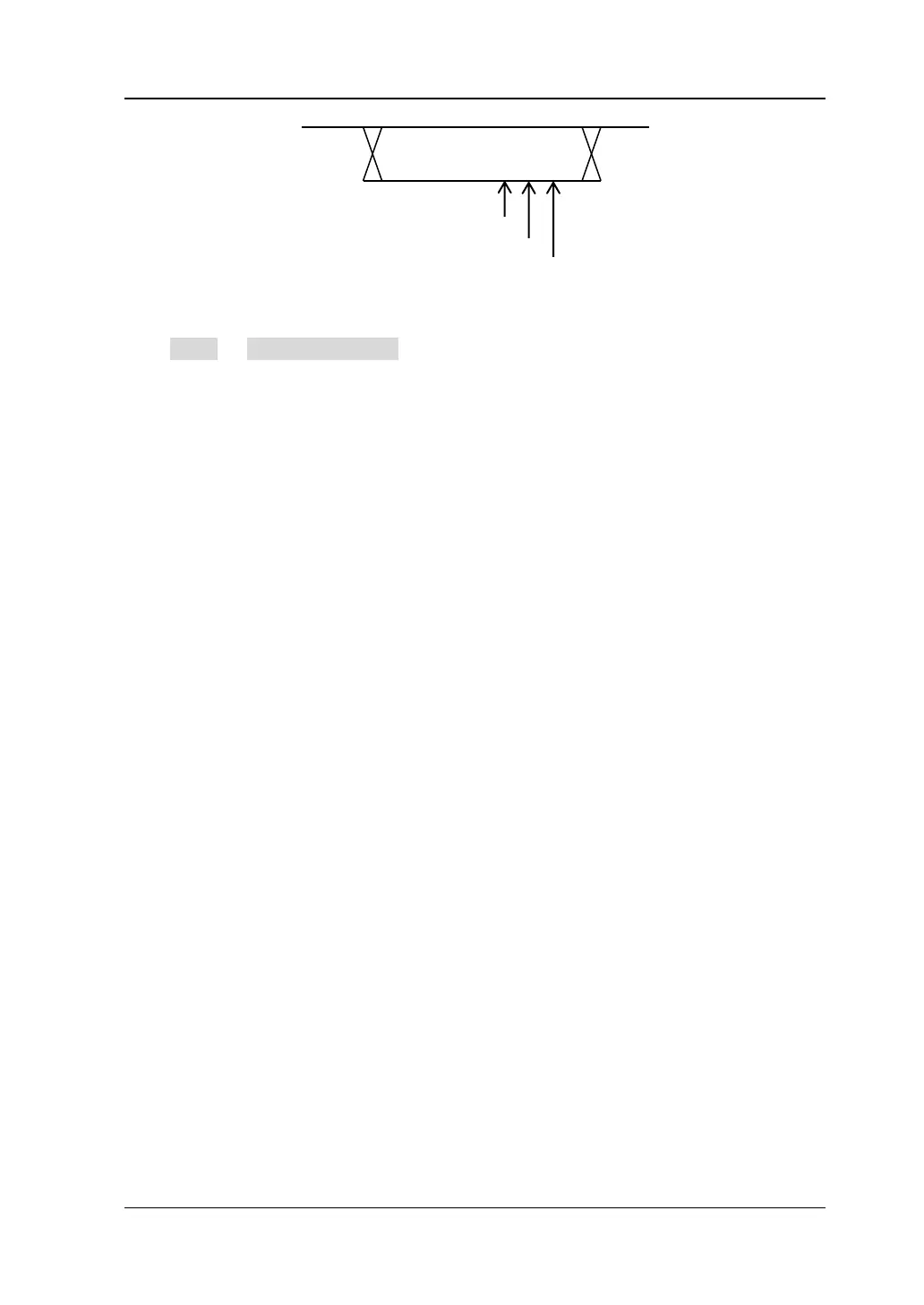

Figure 5-18 Sample Position
Click More → Sample Position, then use the pop-up numeric keypad or scroll with
the mouse to set the sample position. The settable range is from 10% to 90%.
Trigger Mode:
For details, refer to descriptions in "Trigger Mode".
Trigger Parameter Setting:
Set the trigger parameter (noise rejection) under this trigger type. For details, refer
to descriptions in "Noise Rejection".
Trigger Level:
Refer to "Trigger Level". The current trigger level value is displayed at the
upper-right corner of the screen.
One Bit
60%
70%
80%
