Chapter 16 Display Control RIGOL
DS8000-R User Guide 16-3
To Set the Screen Grid
Click Grid to set the grid type. You can select "FULL", "HALF", "NONE", or "IRE".
⚫ FULL: turns the background grid and coordinate on.
⚫ HALF: turns the background grid off.
⚫ NONE: turns the background grid and coordinate off.
⚫ IRE: only available for testing the video signal (i.g. the trigger type is set to
"Video" trigger, and the vertical scale is set to 140 mV).

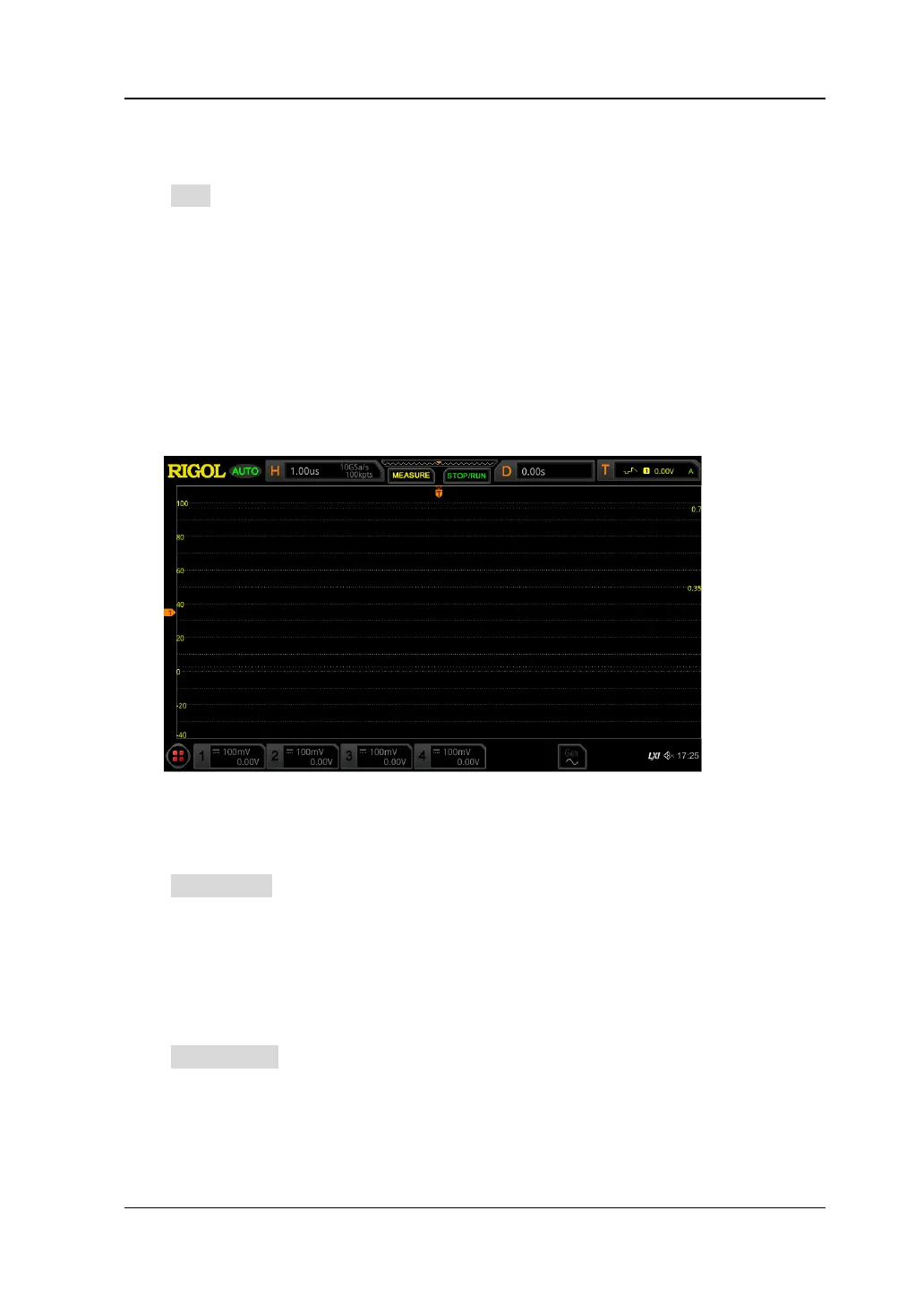

When "IRE" is selected, the screen displays the vertical graticule in IRE and
marks it at the left side of the screen. Its range is from -40 IRE to +100 IRE.
Meanwhile, 0.35 V and 0.7 V levels are displayed at the right side of the screen,
as shown in the following figure.
To Set the Grid Brightness
Click Brightness, then use the pop-up numeric keypad or scroll with the mouse to
set the grid intensity. The default is 20%, and the range available is from 1% to
100%.
Scale
Click Show Scale continuously to enable or disable the scale display on the screen.
By default, it is set to "OFF".
