RIGOL Chapter 6 Operations and Measurements
6-30 DS8000-R User Guide
Note:
⚫ Source A and Source B can be any channel selected from CH1-CH4 and
Math1-Math4. You can click Measure → Add to enter the sub-menu to set the
parameters.
⚫ The default threshold middle value is 50%. You can click Measure in the
function navigation menu, then click Setting to enter the sub-menu to set the
parameters.
Voltage Parameters

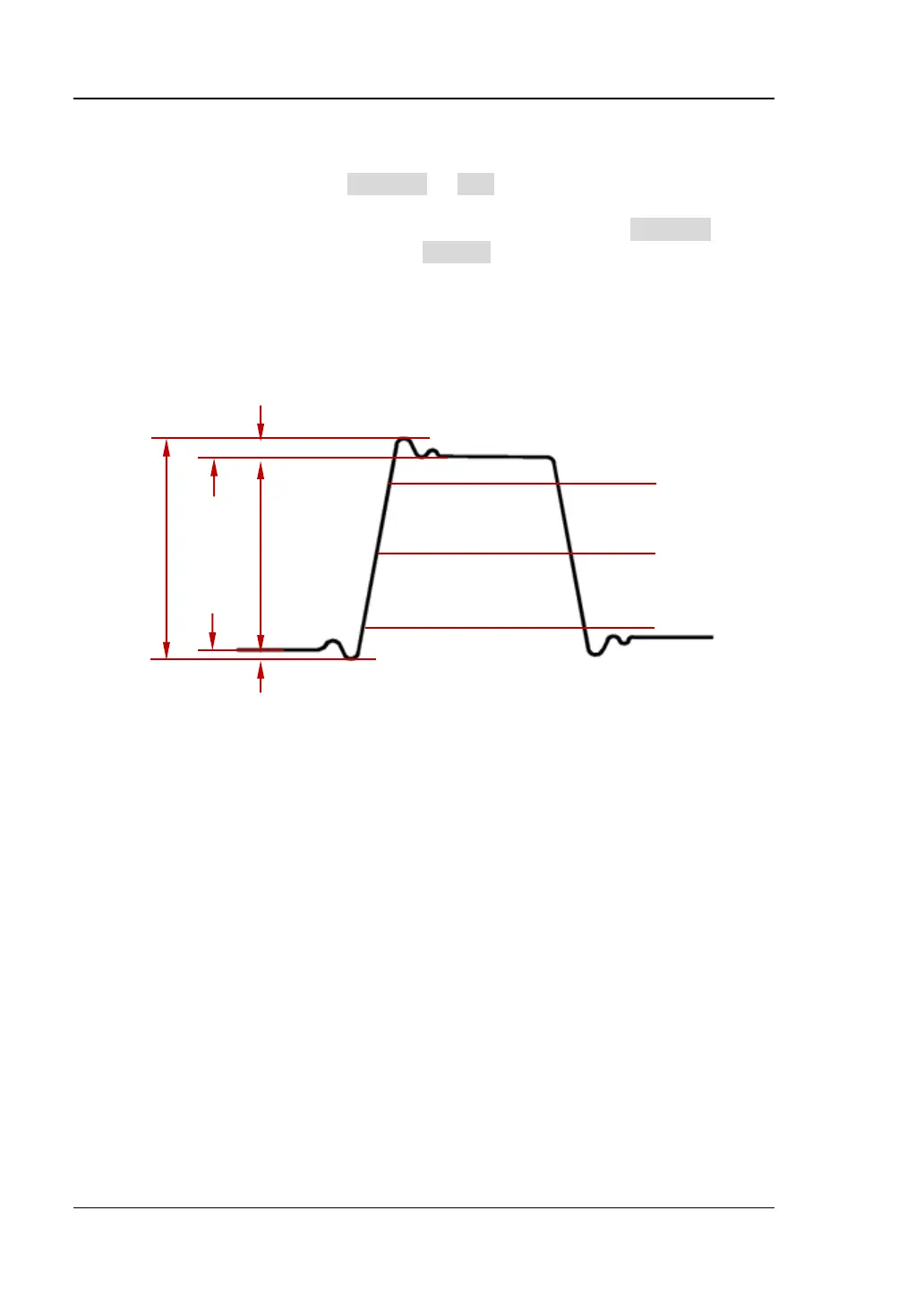

Figure 6-2 Voltage Parameters
1． Vmax: indicates the voltage value from the highest point of the waveform to
the GND.
2． Vmin: indicates the voltage value from the lowest point of the waveform to the
GND.
3． Vpp: the voltage value from the highest point to the lowest point of the
waveform.
4． Vtop: indicates the voltage value from the flat top of the waveform to the GND.
5． Vbase: indicates the voltage value from the flat base of the waveform to the
GND.
6． Vamp: indicates the voltage value from the top of the waveform to the base of
the waveform.
7． Vupper: indicates the actual voltage value that corresponds to the threshold
maximum value.
8． Vmid: indicates the actual voltage value that corresponds to the threshold
middle value.
9． Vlower: indicates the actual voltage value that corresponds to the threshold
minimum value.
Preshoot
Overshoot
Vamp
Vbase
Vmax
Vmin
Vpp
Vtop
Vupper
Vmid
Vlower
