Rinnai 11 Multi Split Type AC

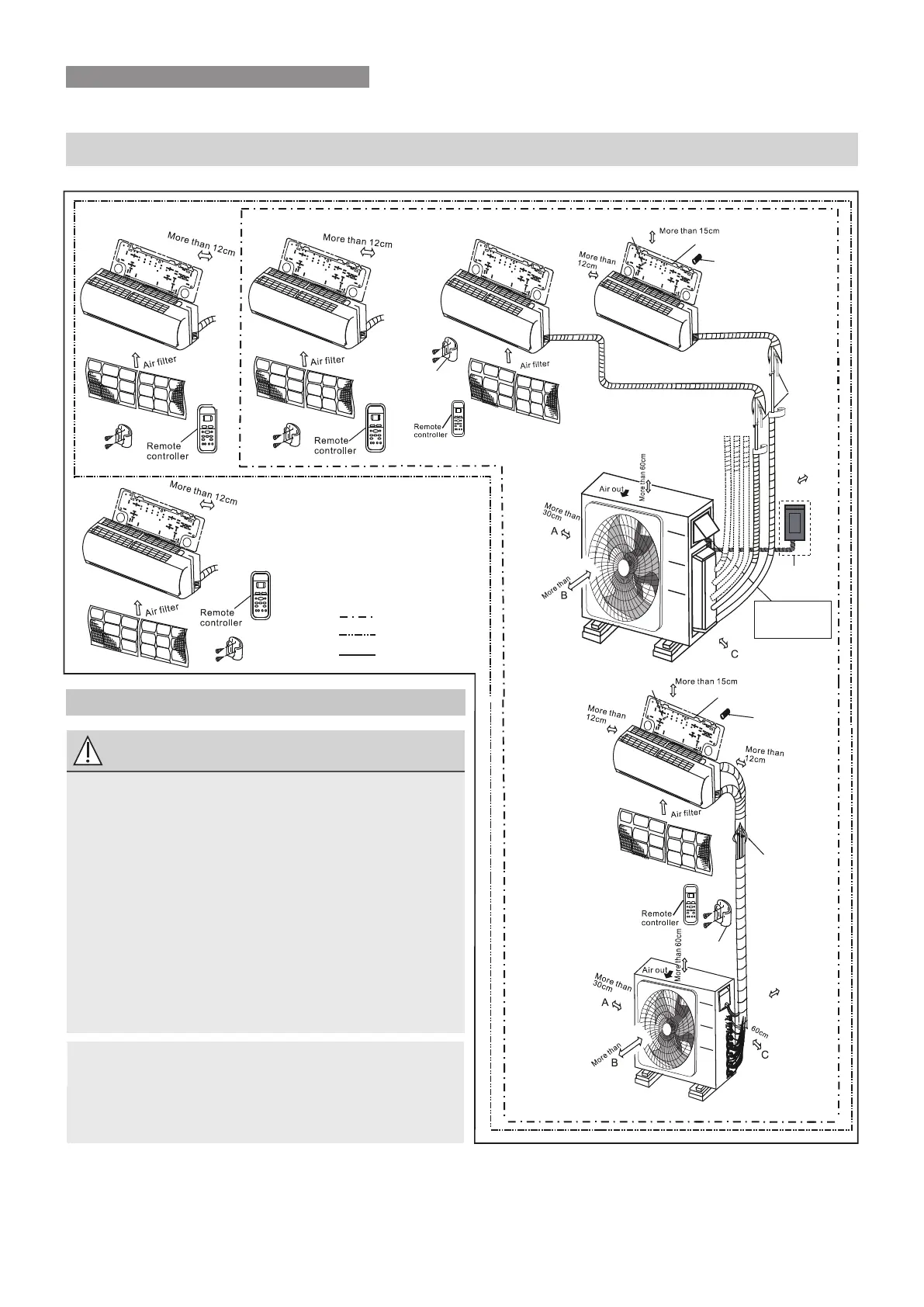

Installation Diagram
INDOOR UNIT INSTALLATION
4
3
2
Mounting screw
1
ST3.9
×25-C-H
Installation plate
Clip anchor
1
Remote
2
controller
holder
Drainage
Pipe
5 4 3
5
3 Head
4 Head
5 Head
(1)
Mounting screw
Installation
ST3.9
×25-C-H
plate
Safety Precautions
Clip anchor
CAUTION
Refrigerant
pipe
Remote
controller
holder
(2)
More than
65cm
More than
65cm
Outdoor Unit
More than
10cm
More than
10cm
Outdoor unit
isolation switch
(field supplied)
• To prevent wall damage, use a stud finder to
locate studs.
• A minimum pipe run of 3 metres is required to
minimise vibration and excessive noise.
• Two of the A, B and C air circulation pathways
must be free from obstructions at all times.
• This illustration is for demonstration
purposes only.
• The actual shape of your air conditioner may
be slightly different.
• Copper lines must be independently
insulated.
NOTE: The installation must be performed in
accordance with the requirement of local and
national standards. The installation may be
slightly different in different areas.
The maximum number
of connection cables
is 5. This section is for
reference only.
60cm
To Next Page
