Rinnai 16 Multi Split Type AC
INDOOR INSTALLATION
Rinnai 13 Multi Split Type Air Conditioner
INSTALLATION INSTRUCTIONS
Air outlet
Air inlet
Air filter(on selected models)
Drain hose
Electric control cabinet
Refrigerant connecting pipe
Indoor Unit Parts
Safety Precautions
• Securely install the indoor unit on a structure
that can sustain its weight. If the structure is
too weak, the unit may fall causing personal
injury, unit and property damage, or even
death
• DO NOT install the indoor unit in a bathroom
or laundry room as excessive moisture can
short the unit and corrode the wiring.
CAUTION
WARNING
• Install the indoor and outdoor units, cables
and wi res at least 1m fr om televisions or
radios to pr
event static or image distortion.
Depending on the appliances, a 1m
distance may not be sufficient.
•
If the indoor unit is installed on a metal
part of the building, it must be grounded.

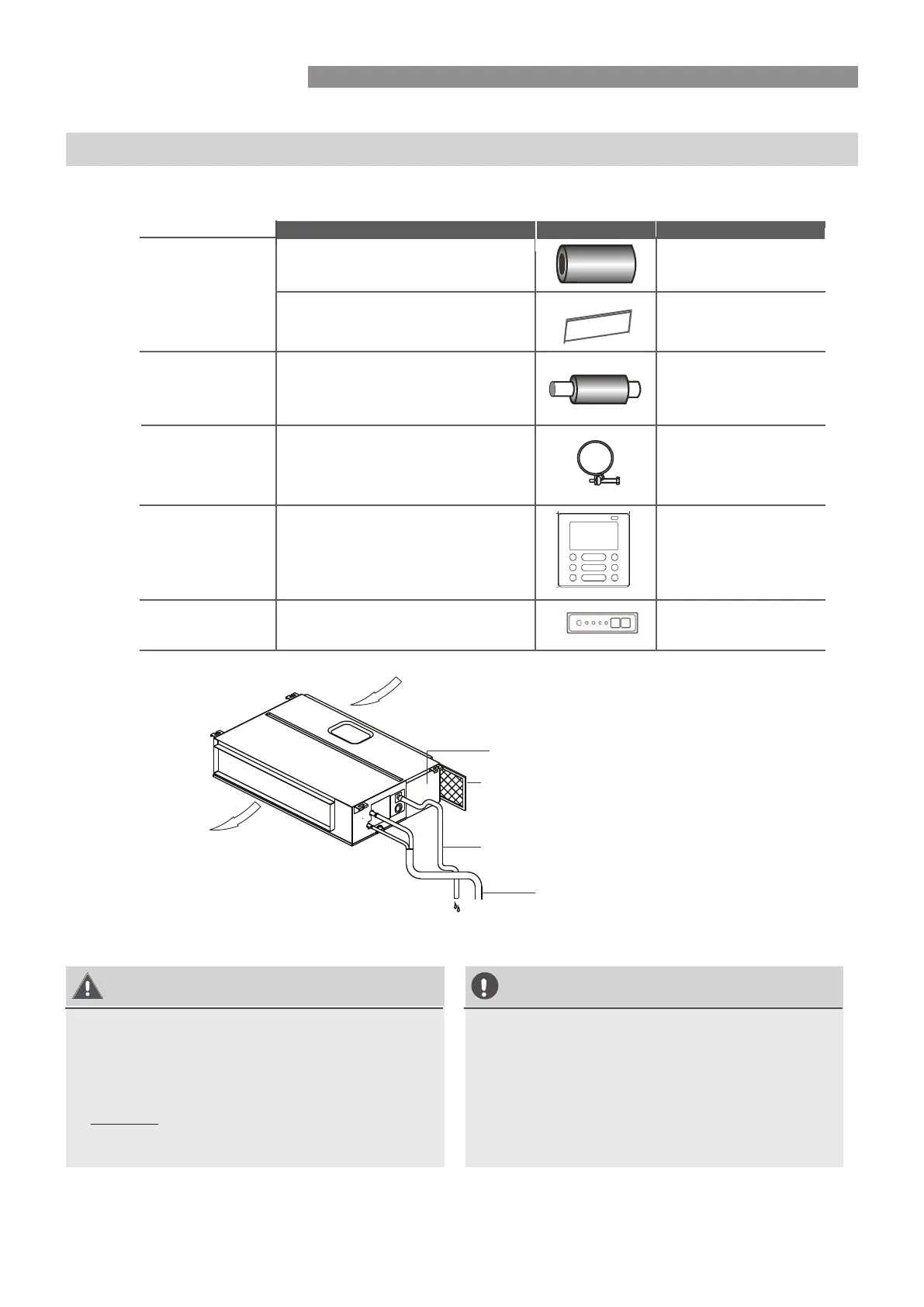

DUCTED INDOOR UNIT
Accessories
Name Shape Quantity
Soundproof / Insulation Sheath
2
Tubing & Fittings
Seal Sponge
1
Outlet Pipe Sheath
Outlet Pipe Sheath
1
Outlet Pipe Clasp
Outlet Pipe Clasp
2
Wired Controller
Wired Controller
1
Other
Display Panel (for testing purposes) 1 (some models)
Ducted Indoor Unit Accessories
