Rinnai 22 Multi Split Type AC

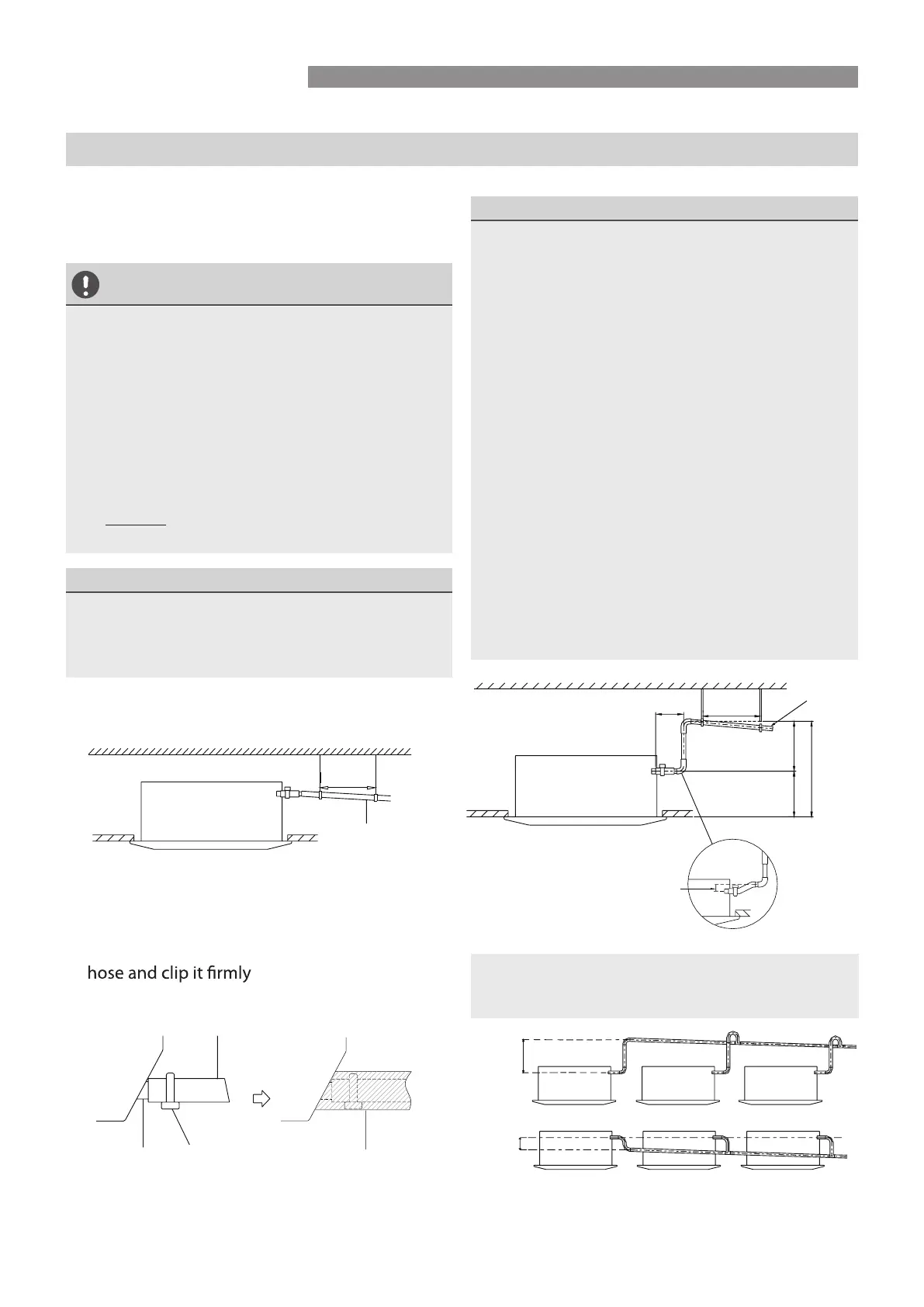

INDOOR INSTALLATION
Rinnai 19 Multi Split Type Air Conditioner
NOTE : DRAINPIPE INSTALLATION
The drainpipe is used to drain water from the unit.
Improper installation may cause unit and property
damage.
CAUTION
NOTE ON PURCHASING PIPES
This installation requires a polyethylene tube
(outside diameter = 3.7-3.9cm, inside diameter
= 3.2cm), which can be obtained at your local
hardware store or fr om your dealer.
•
When using an extended drainpipe, tighten
the
indoor connection with an additional
protection tube to pr
event it from pulling
loose.
• The drainpipe should slope downward at a
gradient of at least 1/100 to prevent water
from flowing back into the air conditioner.
• To prevent the pipe f rom sagging, space
hanging wires every 1-1.5m.
• If the outlet of the drainpipe is higher than
the body’s pump joint, p
rovide a lift pipe for
the exhaust outlet of the indoor unit. The lift
pipe must be installed no higher than
75cm
from the ceiling board and distan c
e between
the unit and the lift pipe must be less t
han
30cm. Incorrect installation cou
ld cause
water to flow back into the unit and flood.
• To p revent air bubbles, keep the drain hose
level or slightly tilted up (<75mm).
See Figure below.
Ceiling
Indoor Drainpipe Installation
Install the drainpipe as shown in Figure below.
Downward slope
1 - 1.5m
1/100
1-1.5m
22cm
Downward slope
1/100
0 - 75mm
NOTE: When connecting multiple drainpipes,
install the pipes as shown in Figure below .
Drain hose
0-53cm
(with pump)
≥10cm
Drainpipe
Metal clamp
connecting port
Insulation
(no pump)
≤30cm
≤53cm
≤75cm
1.
Cover the drainpipe with heat insulation to
prevent condensation and leakage .
2.
Attach the mouth of the drain hose to the
unit’s outlet pipe. Sheath the mouth of the
with a pipe clasp.
(See Figure below)
Insulate all piping to p
revent condensation,
which could lead to water damage .
• If the drainpipe is bent or installed
incorrectly, water
may leak and cause a
malfunction of the water- level switch.
• In HEA T mode, the outdoor unit will
discharge water. Ensur
e that the drain hose
is placed in an appropriate ar
ea to avoid
water damage & slippage due to fr
ozen
drain water.
• DO NOT pull the drainpipe for cefully as this
could cause it to disconnect.
Drainpipe Installation
