Rinnai 13 Multi Split Type AC
INDOOR INSTALLATION
Rinnai 8 Multi Split Type Air Conditioner
Outdoor unit
More than 10cm
If an awning is built over the outdoor unit to minimise
direct sunlight or rain exposure, ensure that the
More than 30cm
air paths and heat radiation from the condenser is
uninhibited.
Ensure that the clearance to the back of the
unit is more than 10cm and left side is more
More than 60cm
than 30cm. The front of the unit should
have more than 65cm of clearance and the
connection side (right side) should have more
More than 65cm
than 60cm of clearance.
Do not place animals or plants in the path of the air inlet or outlet.
Take the unit’s operating weight into account and select a suitable position to minimise noise
and vibration both internally and externally.
Select a suitable position so that the air discharge and noise from the unit does not disturb neighbours.
Selecting installation position
Read completely, then follow step by step.
Indoor unit
If the outdoor unit is installed on a roof structure, ensure it is installed on a secure level base.
Ensure the roof structure and securing method are adequate for the unit location.
Consult local codes and regulations regarding roof mounting.
If the outdoor unit is installed on roof structures or external walls, this may result in
excessive noise and vibration, it may also be classed as a non serviceable installation, and void
Roof installation
INSTALLATION INSTRUCTIONS
More than 15cm
WALL MOUNTED -
the manufacturers warranty.
also refer to the Installation Manual accompanying the Wall Mounted Unit
Do not expose the indoor unit to external heat or steam.
More than 12cm
More than 12cm
Select a position where there are no obstacles
in front or around the unit.
Make sure that the condensate drain and pipework can
be conveniently routed.
Do not install near doorways and kitchen.
Ensure that the clearance to the left and the right
of the unit is more than 12cm.
Use a stud finder to locate studs for secure mounting and prevent damage to the wall.
The indoor unit should be installed allowing a minimum clearance of 15cm from the ceiling above.
Any variations in pipe length may require adjustment to the refrigerant charge.
Install away from direct sunlight . The sun may fade the plastic cabinet and af fect its appearance.
If unavoidable, adequate sunlight prevention should be taken into consideration.
INSTALLATION INSTRUCTIONS
Rinnai 9 Multi Split Type Air Conditioner
Name
Shape Quantity
1
1
1
(for cooling & heating
models only)
Clip anchor
screw ST3.9 X 25
Remote controller
Fixing screw for remote
controller holder ST2.9 x 10
Remote controller holder
Dry battery AAA.LR03
Seal
Drain joint
Mounting plate
5
5
2
1
Optional
Parts
2

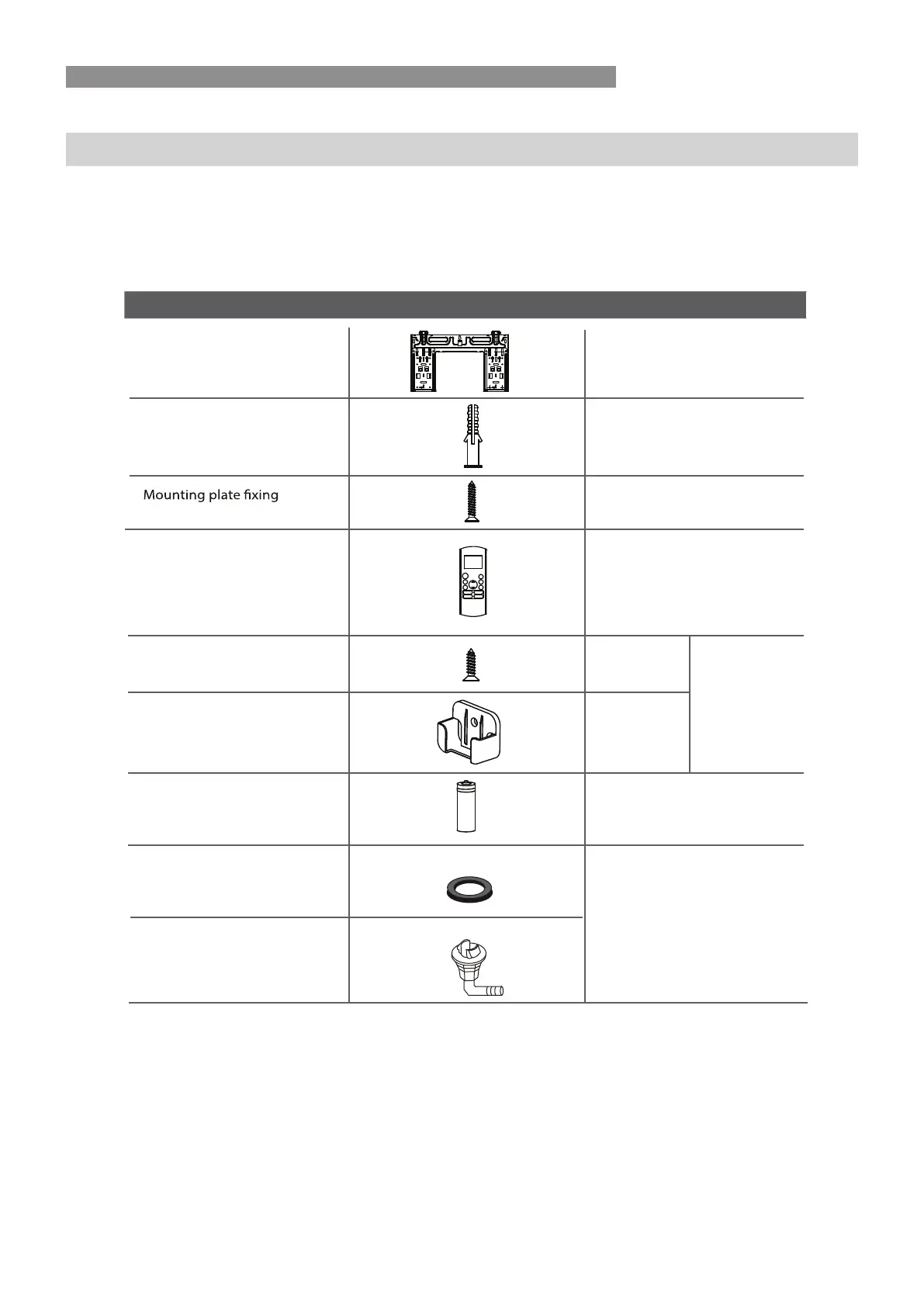

ACCESSORIES
Wall Mounted Unit
The Air Conditioning system comes with the following accessories. Use all of the installation
parts and accessories to install the air conditioner. Improper installation may result in water
leakage, electrical shock and fire, or cause the equipment to fail.
Indoor Unit Wall Mounted Accessories
