Rinnai 25 Multi Split Type AC
INDOOR INSTALLATION
Rinnai 22 Multi Split Type Air Conditioner
INDOOR CASSETTE INSTALLATION
Page 8

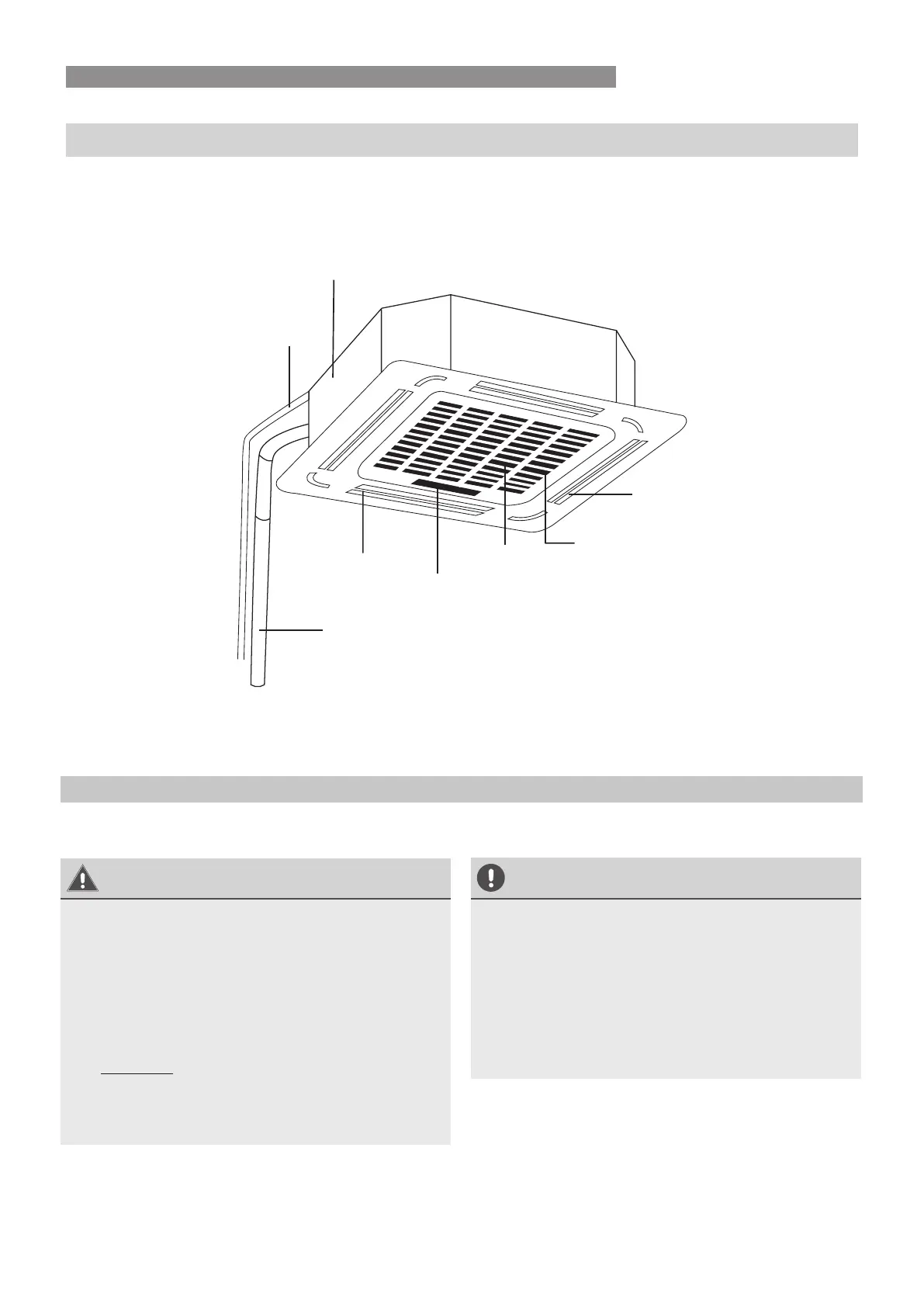

Indoor Unit Installation
4
(within indoor unit)
Drain pipe
Air outlet
Air inlet
Display panel
Front grille
Louver
Refrigerant pipe
Safety Precautions
W ARNING
CAUTION
• Secur ely install the indoor unit on a
structur e that can sustain its weight. If the
structur e is too weak the unit may fall
causing personal injury, unit and pr operty
damage or death.
• Install the indoor unit at a height of mor e
than 2.5m above the floor.
• DO NOT install the indoor unit in the
bathroom or laundry r oom as excessive
moisture can short the unit and corr ode the
wiring.
• Install the indoor and outdoor units, cables
and wires at least 1m fr om televisions or
radios to pr event static or image distortion
Depending on the appliances, a 1m
distance may not be sufficient.
• If the indoor unit is installed on a metal
part of the building, it must be electrically
grounded.
Indoor Cassette Installation
Indoor Unit Parts
