Rinnai 36 Multi Split Type AC
Outdoor Unit
Installation
Outdoor Unit Installation

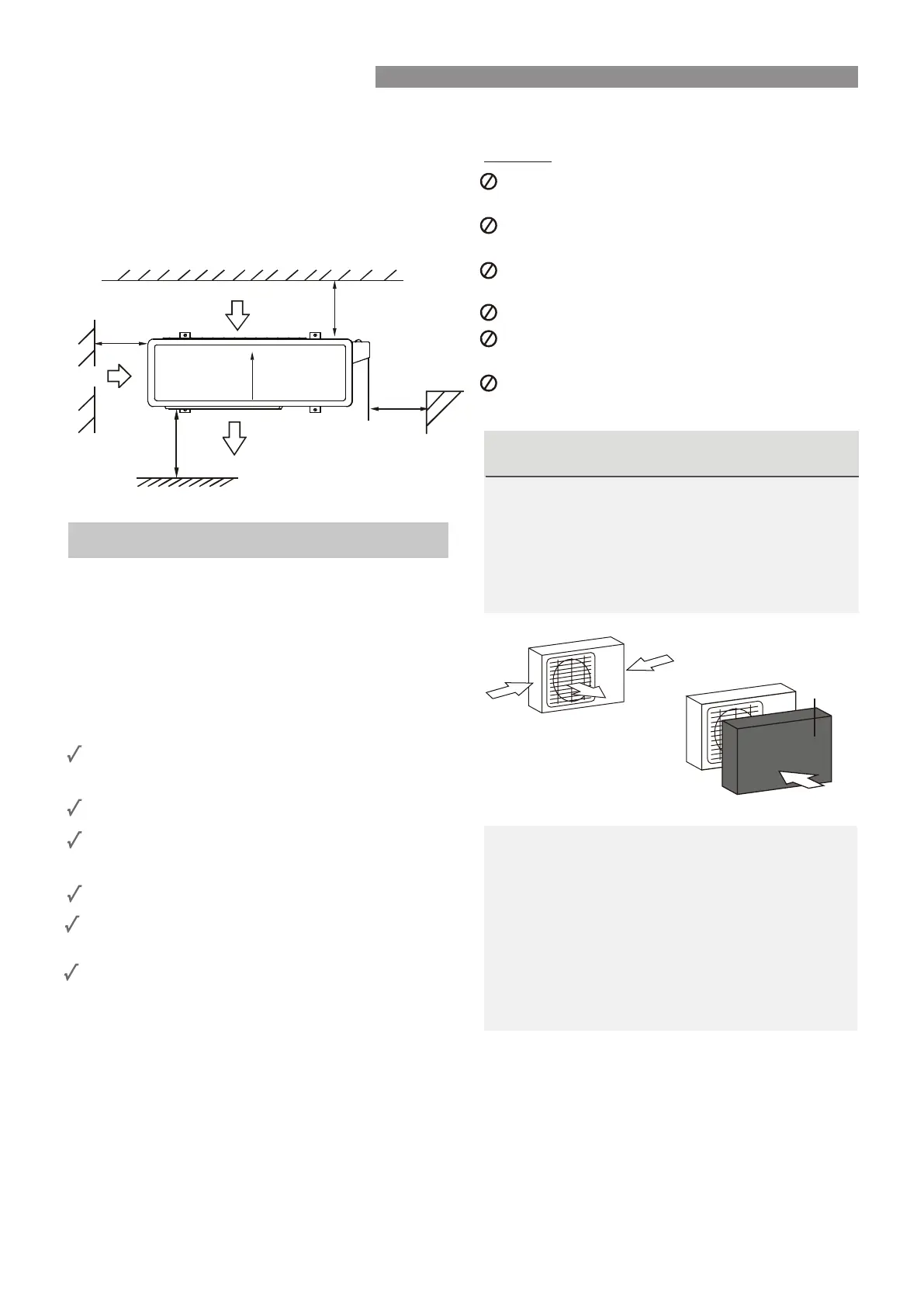

Installation Instructions – Outdoor unit
Step 1: Select installation location
Before installing the outdoor unit, you must
choose an appropriate location. The following are
standards that will help you choose an appropriate
location for the unit.
Proper installation locations meet the
following standards:
Meets all spatial requirements shown in
Installation Space Requirements above.
Good air circulation and ventilation
Firm and solid—the location can support the
unit and will not vibrate
Noise from the unit will not disturb others
SPECIAL CONSIDERATIONS FOR EXTREME
WEATHER
If the unit is exposed to heavy wind:
Install unit so that air outlet fan is at a 90°
angle to the direction of the wind. If needed,
build a barrier in front of the unit to protect it
from extremely heavy winds.
See Figures below.
Strong
wind
Strong wind
Strong wind
If the unit is frequently exposed to heavy
rain or snow:
Build a shelter above the unit to protect
it from the rain or snow. Be careful not to
obstruct air flow around the unit.
If the unit is frequently exposed to salty air
(seaside):
Use outdoor unit that is specially designed to
resist corrosion.
Wind Baffle
Protected from prolonged periods of direct
sunlight or rain
DO NOT
install unit in the following locations:
Near an obstacle that will block air inlets
and outlets
Near a public street, crowded areas, or
where noise from the unit will disturb others
Near animals or plants that will be harmed
by hot air discharge
Near any source of combustible gas
In a location that is exposed to large
amounts of dust
In a location exposed to a excessive amounts
of salty air
Where snowfall is anticipated, take
appropriate measures to prevent ice
buildup and coil damage.
60cm on right
30cm on left
10cm
fro
m back wall
60c m above
65cm in front
Install the unit by following local codes and
Install the unit by following your Local
Regulations and Municipal Building Codes. They
may be differ slightly between states.
MAINTENANCE
ACCESS
(Wall or obstacle)
Air outletM
P
Air inlet
N
Air inlet
>100mm
from back wall
>300mm
on left
>650mm
in front
>600mm
on right
>600mm
from above
OUTDOOR UNIT INSTALLATION
