Long Ring Network: Multiple Instruments to PC (RXD, TXD, GND)
The Long Ring Network layout can be used in situations where each leg of the cable run
can be up to about 150 m (500 ft.) at 9600 baud. If there are communications errors,
lower the baud rate to 4800 or 2400.

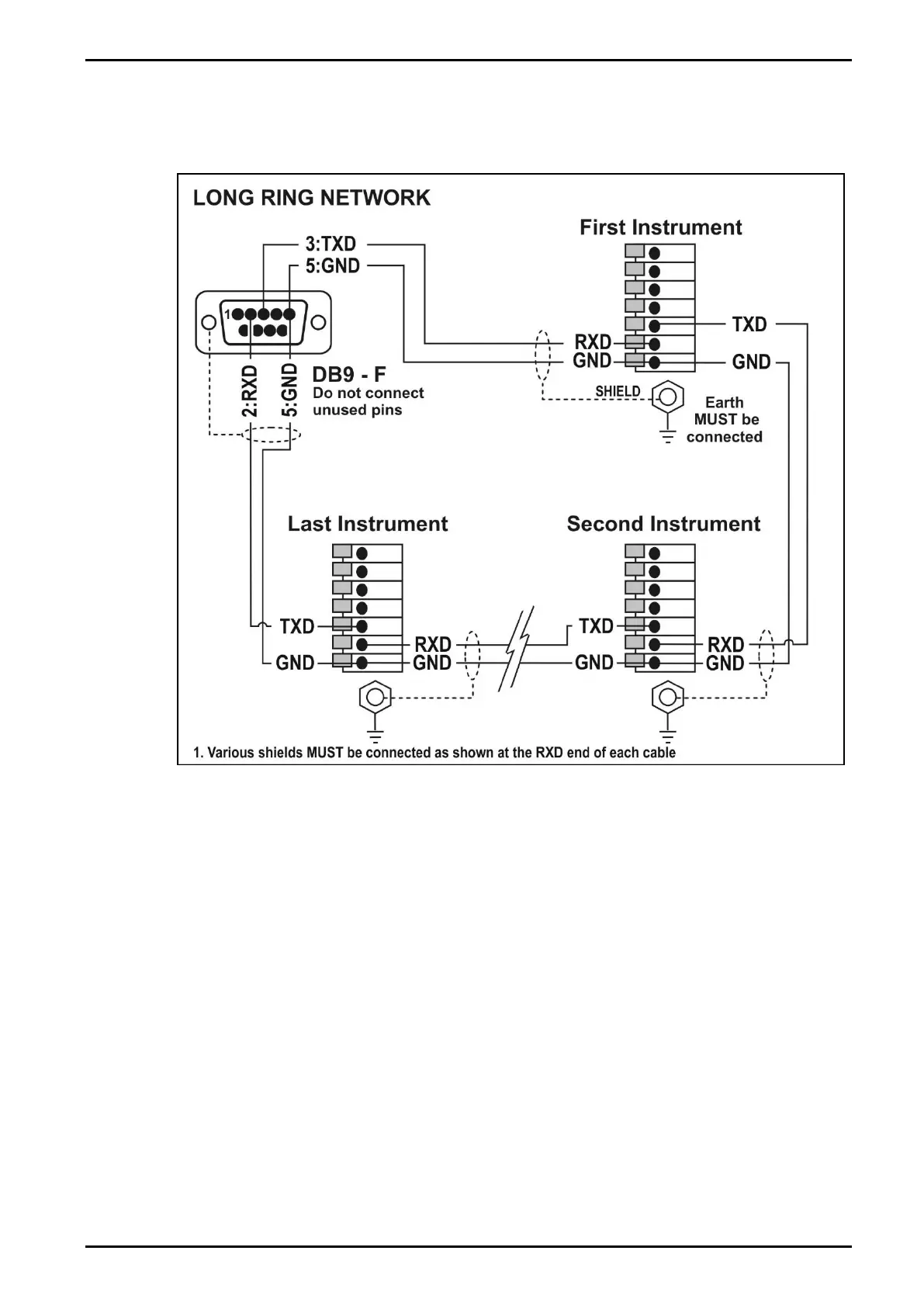

Figure 8: RS-232 Long Cable Runs: Ring Network using COM Port (DB9)
