24
Display Explanation

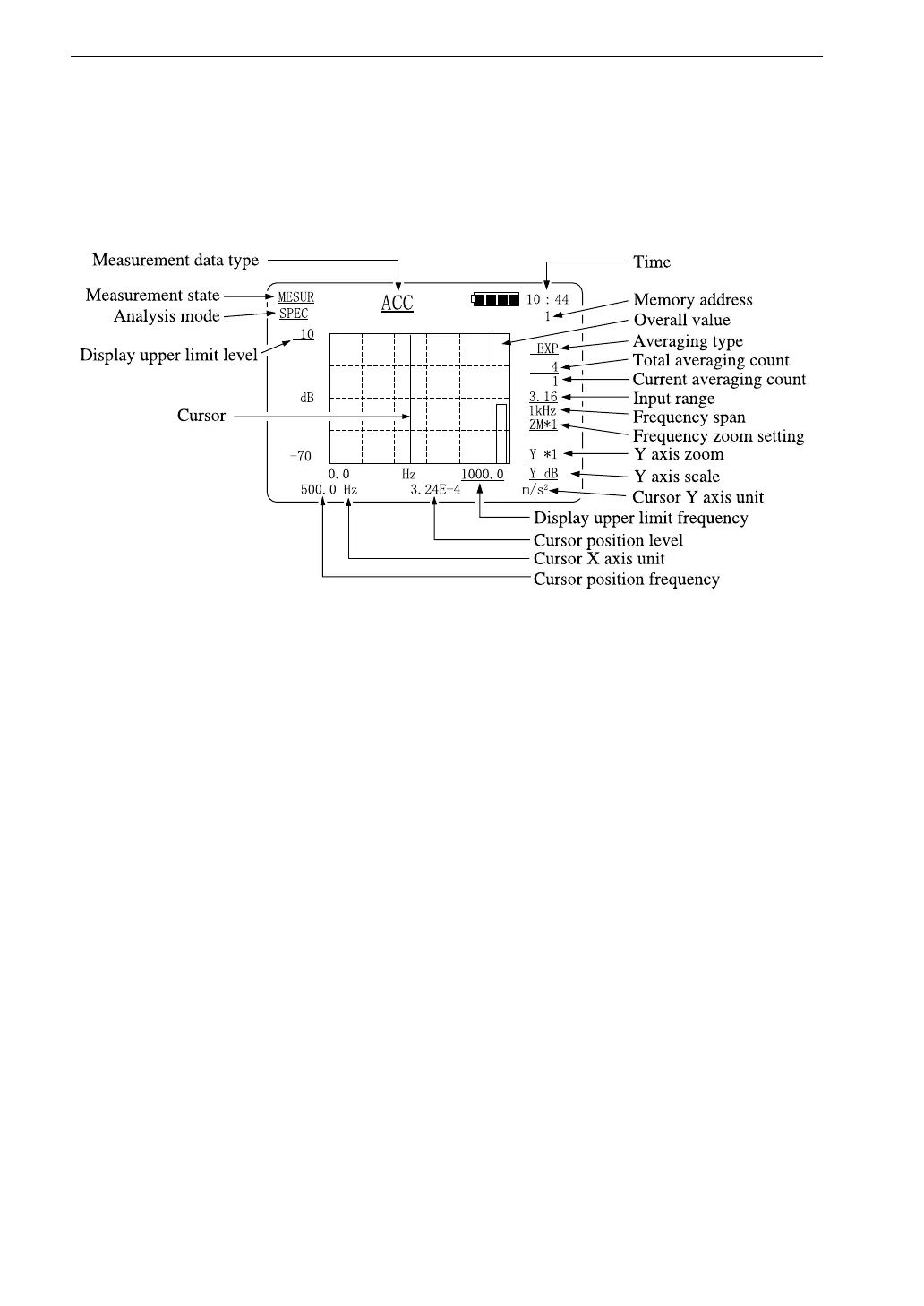

Spectrum display
Items which are underlined on screen can be changed on the measurement
screen by pressing the SETUP (ESC) key.
Measurement data type
ACC: Acceleration VEL: Velocity DISP: Displacement
ACCe: Envelope curve
Measurement state
MESUR: Measurement RECLL: Recall
Analysis mode
VM: Vibration meter SPEC: Spectrum TIME: Time waveform
Time (date) display
Current time (date) is shown.
(Use CALENDAR menu to switch between time and date display.)
Memory address
1 to 500
Averaging type
INST: Instantaneous value LIN: Linear averaging
EXP: Exponential averaging MAX: Maximum value
