58
Measurement

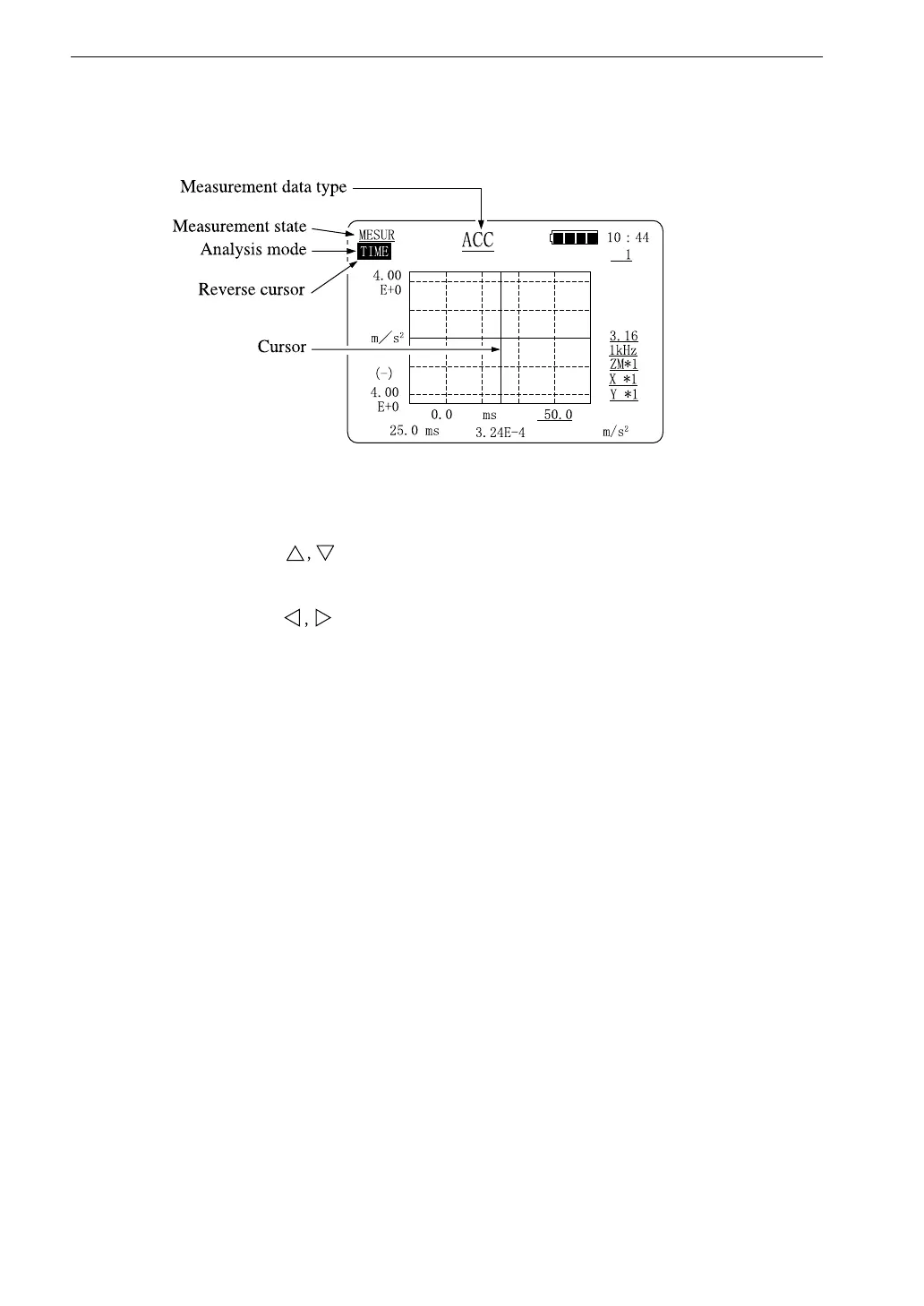

Time Waveform Display
1. Press the SETUP (ESC) key to call up the reverse cursor.
2. Use the keys to move the reverse cursor to the "measurement
state" field.
3. Use the keys to select "MESUR".
4. In the same way, set the analysis mode to "TIME".
5. In the same way, select the measurement data type.
ACC: Acceleration VEL: Velocity
DISP: Displacement ACCe: Envelope
6. Press the SETUP (ESC) key to turn the reverse cursor off.
7. Set the accelerometer sensitivity on the INPUT menu (page 38).
8. Set the desired unit on the UNIT menu (page 33).
9. Make any other required settings (such as filter etc.) with the menu
screens (pages 32 to 43).
10. Press the SETUP (ESC) key to return to the measurement screen.
To Next Page
