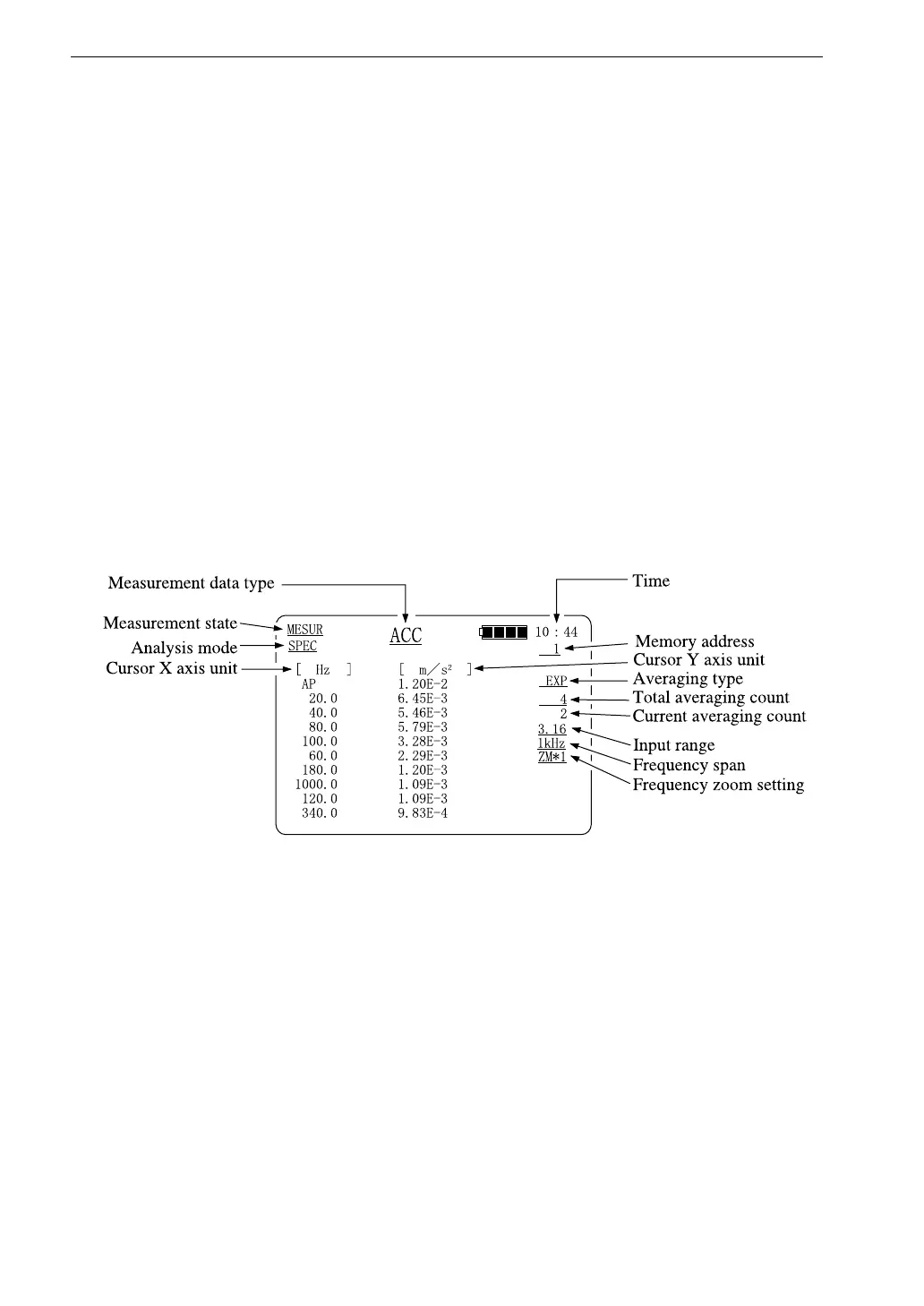

Display Explanation
Cursor Y axis unit
Can be switched between dB and LINEAR with SPECTRUM menu.
Set separately from Y axis scale.
Cursor X axis unit
Can be switched between Hz, KCPM, and ORDER with SPECTRUM
menu.
Overall value
Full power spectrum value excluding DC component. Cursor position
frequency display shows "AP".
Spectrum list display
Items which are underlined on screen can be changed on the measurement
screen by pressing the SETUP (ESC) key.
Measurement data type
ACC: Acceleration VEL: Velocity DISP: Displacement
ACCe: Envelope curve
Measurement state
MESUR: Measurement RECLL: Recall
Analysis mode
VM: Vibration meter SPEC: Spectrum TIME: Time waveform
Time (date) display
Current time (date) is shown.
(Use CALENDAR menu to switch between time and date display.)
To Next Page
