3.2.7.5 Digital Input 2 Pulse Multiplier
Edit mode
XXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
Pressing the “ ” and “ ” keys lets the user scroll through the available
options.
Pressing the “ ” key confirms the selection and takes the user to the
Digital Input 2 Mode Selection Menu.(see Section 3.2.7.4)
Note : Default configuration is set to “status”

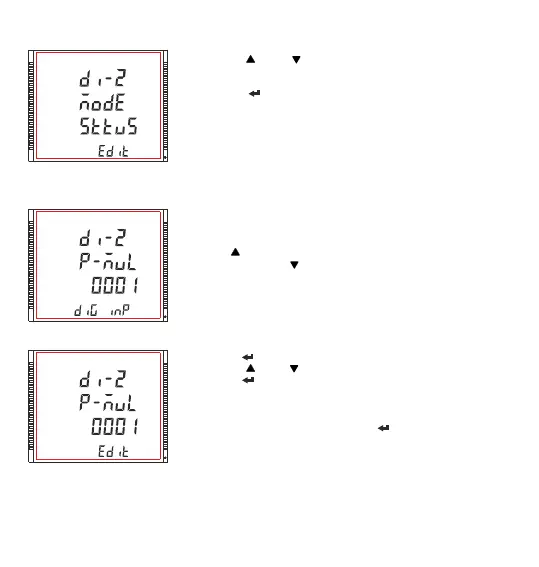

The screen allows user to set the values of the Digital Input 2 Pulse
Multiplier.
Pressing “ ” key advances to the “Quit Digital Input” Screen (see Section
3.2.7.6) and pressing “ ” key advances to the “Digital Input 2 Mode
Selection” screen (see Section 3.2.7.4).
Pressing the “ ” key prompts for the first digit.
Pressing the “ ” and “ ” keys scroll the values of the first digit.
Pressing the “ ” key prompts for the next digit.
Similarly, enter third and fourth digits also.
After the fourth digit is entered, pressing “ ” key sets the value and
advances to “Digital Input 2 Pulse Multiplier” Menu. (see Section 3.2.7.3)
Note : Default value is set to ‘0001’.
