Riso GR 3770 - Flat Bed Original Detection Sensor and Image Flexible Wire

FLAT BED IMAGE SCANNING SECTION
REMOVAL
GR3770 3 - 12
3. FLAT BED ORIGINAL DETECTION SENSOR AND IMAGE FLEXIBLE WIRE
1) Turn off the power and remove the stage glass.
FLAT BED ORIGINAL DETECTION SENSOR
2) Remove mounting screw of the flat bed original detection sensor, cut off the wire band and disconnect the
connector to remove the sensor.
IMAGE FLEXIBLE WIRE
2) Taking off the image scanner cover and the image scanner wire stand, pull out the image scanner connector
to take out the flexible wire.
3) Pulling out the image flexible wire connector on the FBI PCB, remove the flexible wire.

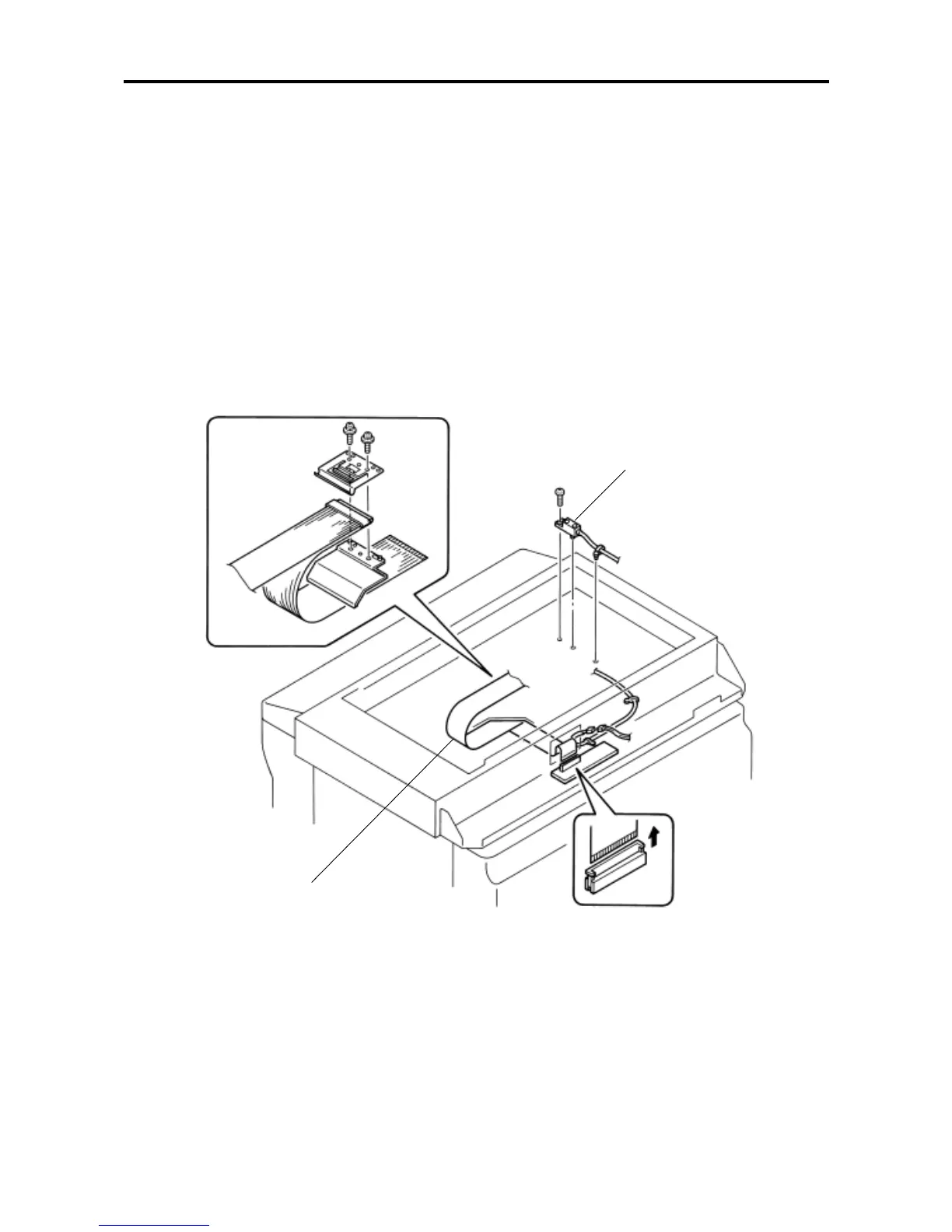

Flat bed original detection sensor
Image flexible wire
