MASTER CLAMP & LOADING SECTION
REMOVAL
GR3770 5 - 6
2. REMOVAL

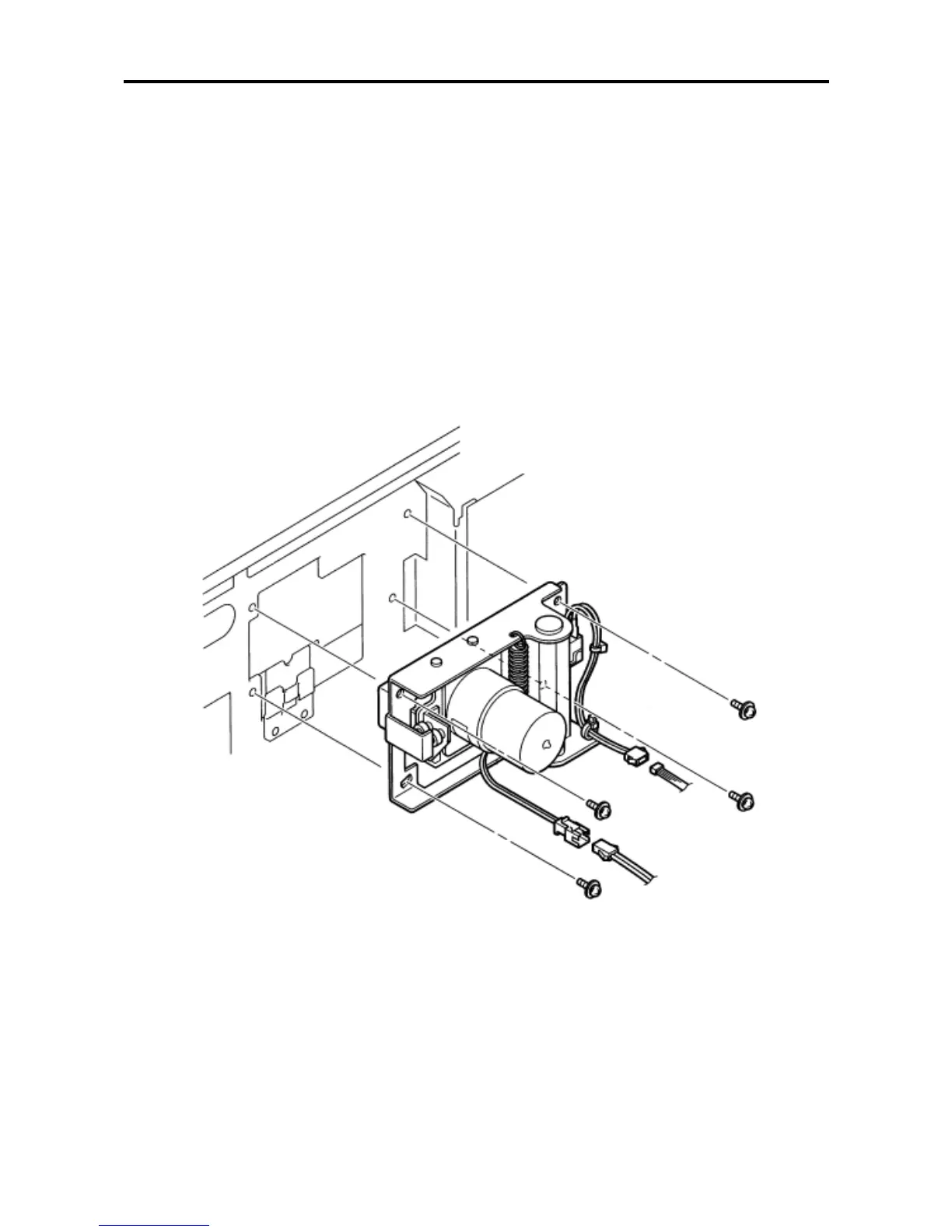

1. CLAMP UNIT
REMOVAL
1) Turn off the power and remove the back cover.
2) Disconnect connectors of the clamp motor and Clamp Safety SW.
3) Remove mounting screws (× 4) of the clamp unit, remove the unit.
- Precaution in Assembly -
• Be sure to use fixing screws of M4 × 6 (short screw). (A long screw, if used, can hit the drum.)
Pan-head Screw SW. W
