MACHINE SUMMARY
NOTICE
GR3770 1 - 4
Please be sure to follow the procedures as below in installation :

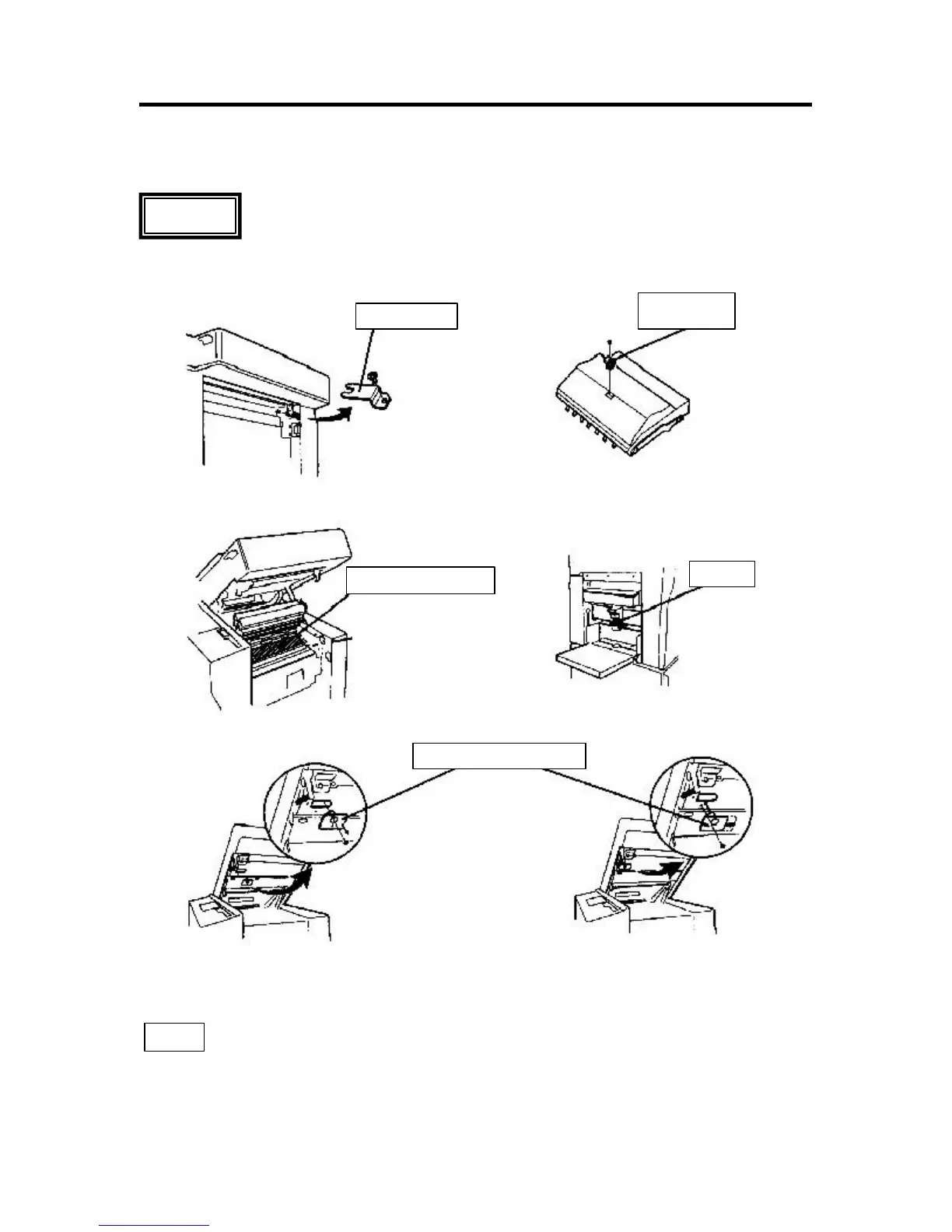

NOTICE 1 Remove the parts in 5 places as shown in the figures below.
2 Activate the Test mode.
3 Enter No.133 to release the electrical lock.
Caution
Do not turn the power ON with Scanner Unit Securing Plate left unremoved, which may damage the machine.
Press Plate
Securing Block
Securing Plate
Shock Absorbing sheet
Styrofoam
Scanner unit securing plate
(1) Remove the securing screw on the Scanner
Unit Securing Plate to release the lock.
(2) Place the Scanner Unit Securing Plate into the
left end of the hole, then secure it again.
To Next Page
