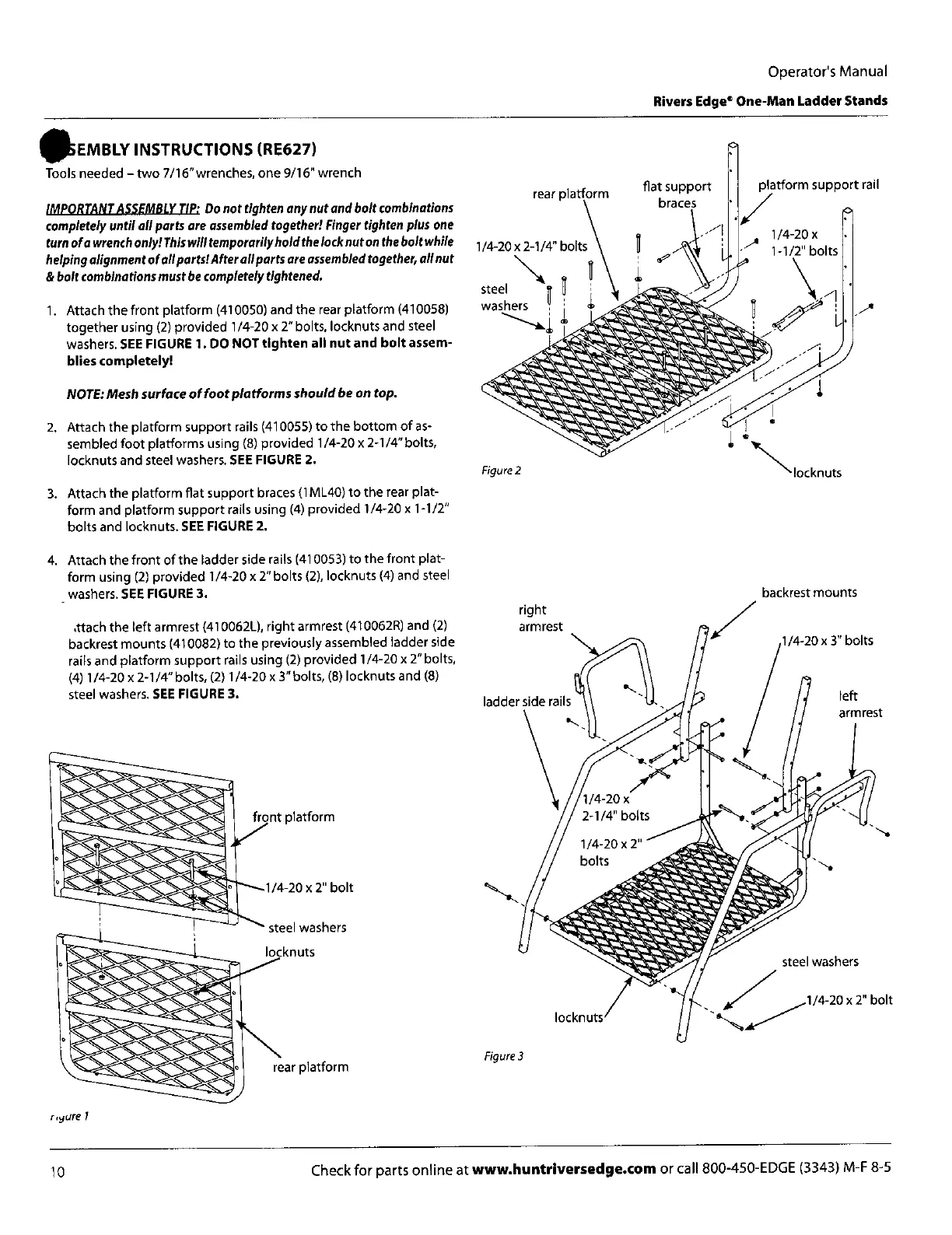

Operator's Manual
Rivers Edges One-Man Ladder Stands
ir
EMBLY INSTRUCTIONS (RE627)
Tools needed — two 7/16" wrenches, one 9/16" wrench
IMPORTANT ASSEMBLY
TIP.
Do not tighten any nut and bolt combinations
completely until all parts are assembled together! Finger tighten plus one
turn of a wrench only! This will temporarily hold the lock nut on the bolt while
helping alignment of all parts! After all parts are assembled together, all nut
& bolt combinations must be completely tightened.
Attach the front platform (410050) and the rear platform (410058)
together using (2) provided 1/4-20 x 2" bolts, locknuts and steel
washers.
SEE FIGURE 1. DO NOT tighten all nut and bolt assem-
blies completely!
NOTE: Mesh surface of foot platforms should
be on top.
Attach the platform support rails (410055) to the bottom of as-
sembled foot platforms using (8) provided 1/4-20 x 2-1/4" bolts,
locknuts and steel washers.
SEE FIGURE 2.
Attach the platform flat support braces (1ML40) to the rear plat-
form and platform support rails using (4) provided 1/4-20 x 1-1/2"
bolts and locknuts.
SEE FIGURE 2.
Attach the front of the ladder side rails (410053) to the front plat-
form using (2) provided 1/4-20 x 2" bolts (2), locknuts (4) and steel
washers.
SEE FIGURE 3.
atach the left armrest (410062L), right armrest (410062R) and (2)
backrest mounts (410082) to the previously assembled ladder side
rails and platform support rails using (2) provided 1/4-20 x 2" bolts,
(4) 1/4-20 x 2-1/4" bolts, (2) 1/4-20 x 3" bolts, (8) locknuts and (8)
steel washers.
SEE FIGURE 3.
rt
g
are I
backrest mounts
Figure 3
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
10
To Next Page
