1/4-20 x 1-1/2"
bolts
1/4-20 x 1-1/2"
bolts
locknut
locknuts
1/4-20 x 2-1/4"
bolts
bolt-on step
.
steel washers
double flat braces
Figures
1/4-20 "1-1/2" bolts
steel washer
shooting rail J -pipes
locknuts
shooting rail rim
seat rails
locknuts
1/4-20x 2-1/2" bolts
Operator's Manual
Rivers Edge One-Man Ladder Stands

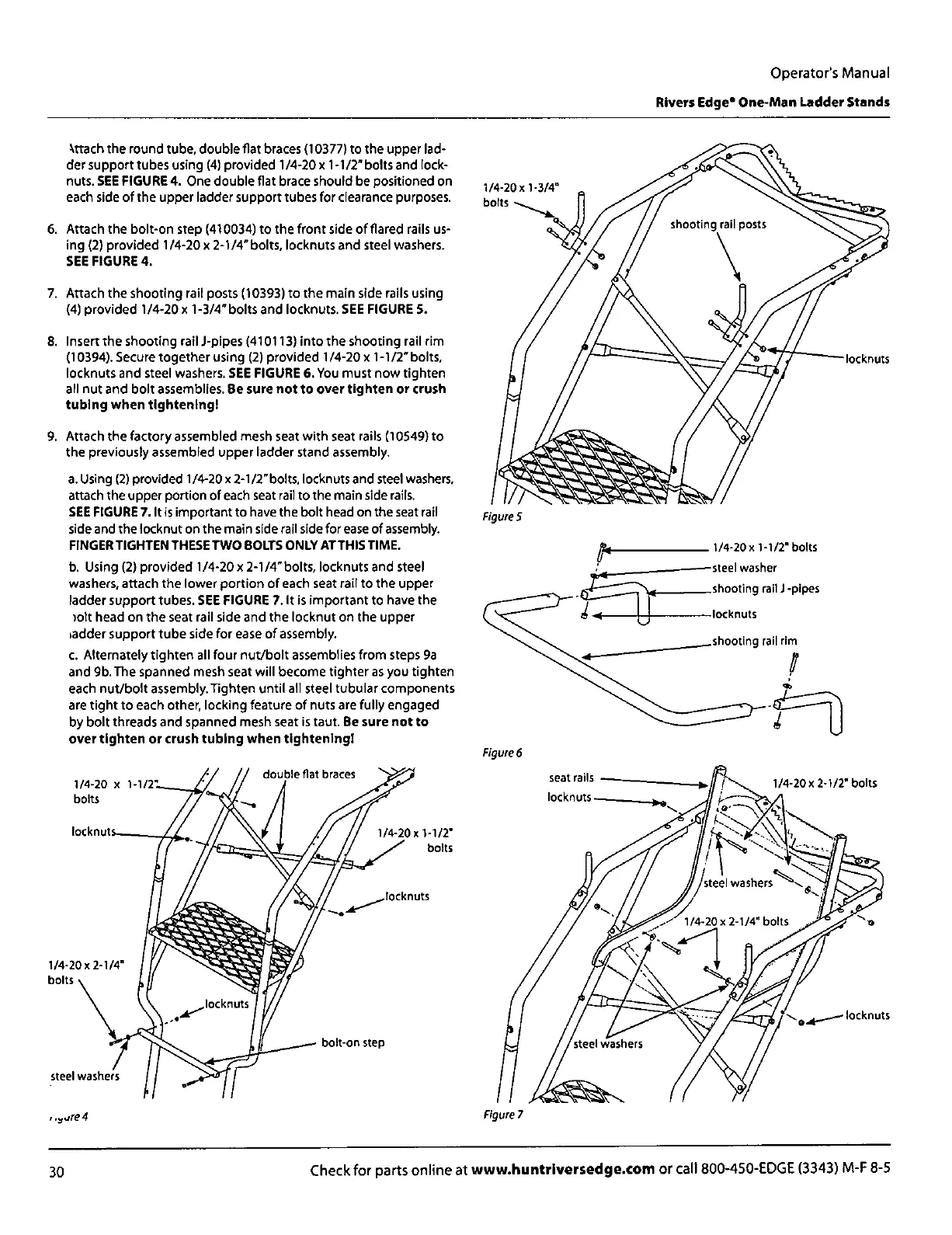

kttach the round tube, double flat braces (10377) to the upper lad-
der support tubes using (4) provided 1/4-20 x 1-1/2" bolts and lock-
nuts.
SEE FIGURE 4.
One double flat brace should be positioned on
each side of the upper ladder support tubes for clearance purposes.
Attach the bolt-on step (410034) to the front side of flared rails us-
ing (2) provided 1/4-20 x 2-1/4" bolts, locknuts and steel washers.
SEE FIGURE 4.
Attach the shooting rail posts (10393) to the main side rails using
(4)
provided
1
/
4
-20 x 1-3/4" bolts and locknuts.
SEE FIGURE 5.
Insert the shooting rail 1-pipes (410113) into the shooting rail rim
(10394). Secure together using (2) provided 1/4-20 x 1-1/2" bolts,
locknuts and steel washers.
SEE FIGURE 6.
You must now tighten
all nut and bolt assemblies.
Be sure not to over tighten or crush
tubing when tightening!
Attach the factory assembled mesh seat with seat rails (10549) to
the previously assembled upper ladder stand assembly.
Using (2) provided 1/4-20 x 2-1/2n bolts, locknuts and steel washers,
attach the upper portion of each seat rail to the main side rails.
SEE FIGURE
7.1t is important to have the bolt head on the seat rail
side and the locknut on the main side rail side for ease of assembly.
FINGER TIGHTEN THESE TWO BOLTS ONLY ATTHIS TIME.
Using (2) provided 1/4-20 x 2-1/4" bolts, locknuts and steel
washers, attach the lower portion of each seat rail to the upper
ladder support tubes.
SEE FIGURE
7.1t is important to have the
)olt head on the seat rail side and the locknut on the upper
odder support tube side for ease of assembly.
Alternately tighten all four nut/bolt assemblies from steps 9a
and 9b. The spanned mesh seat will become tighter as you tighten
each nut/bolt assembly. Tighten until all steel tubular components
are tight to each other, locking feature of nuts are fully engaged
by bolt threads and spanned mesh seat is taut.
Be sure not to
over tighten or crush tubing when tightening!
Figure 6
Figure 7
30
