Operator's Manual
Rivers Edges One-Man Ladder Stands

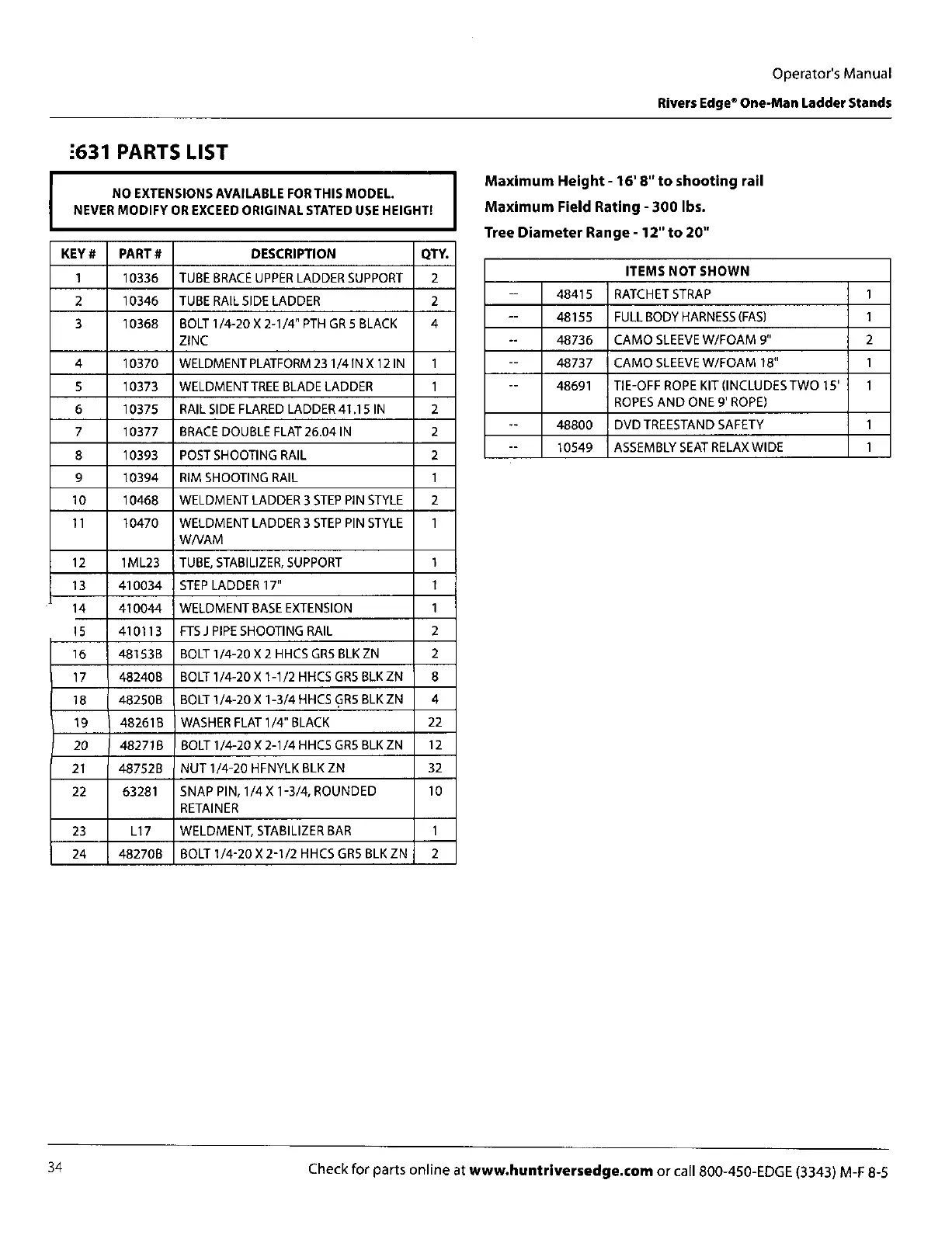

1631 PARTS LIST
NO EXTENSIONS AVAILABLE FOR THIS MODEL
NEVER MODIFY OR EXCEED ORIGINAL STATED USE HEIGHT!
KEY
V
PARTS/
DESCRIPTION
QTY.
1
10336
TUBE BRACE UPPER LADDER SUPPORT
2
2
10346
TUBE RAIL SIDE LADDER
2
3
10368
BOLT 1/4-20 X 2-1/4" PTH GR 5 BLACK
ZINC
4
4
10370
WELDMENT PLATFORM 231/4 IN X 12 IN
1
5
10373
WELDMENT TREE BLADE LADDER
1
6
10375
RAIL SIDE FLARED LADDER 41.15 IN
2
7
10377
BRACE DOUBLE FLAT 26.04 IN
2
8
10393
POST SHOOTING RAIL
2
9
10394
RIM SHOOTING RAIL
1
10
10468
WELDMENT LADDER 3 STEP PIN STYLE
2
11
10470
WELDMENT LADDER 3 STEP PIN STYLE
WNAM
1
12
1ML23
TUBE, STABILIZER, SUPPORT
1
13
410034
STEP LADDER 17"
1
14
410044
WELDMENT BASE EXTENSION
1
15
410113
FTSJ PIPE SHOOTING RAIL
2
16
4815313
BOLT 1/4-20 X 2 HHCS GR5 BLK ZN
2
17
482408
BOLT 1/4-20 X 1-1/2 HHCS GR5 BLK ZN
8
18
4825013
BOLT 1/4-20 X 1-3/4 HHCS gR5 BLK ZN
4
19
482618
WASHER FLAT 1/4" BLACK
22
20
48271B
BOLT 1/4-20 X 2-1/4 HHCS GR5 BLK ZN
12
21
487528
NUT 1/4-20 HFNYLK BLK ZN
32
22
63281
SNAP PIN, 1/4 X 1-3/4, ROUNDED
RETAINER
10
23
L17
WELDMENT, STABILIZER BAR
1
24
48270E3
BOLT 1/4-20 X 2-1/2 HHCS GR5 BLK ZN
2
Maximum Height -16' 8" to shooting rail
Maximum Field Rating -300 lbs.
Tree Diameter Range -12" to 20"
ITEMS NOT SHOWN
—
48415
RATCHET STRAP
1
48155
FULL BODY HARNESS (FAS)
1
48736
CAMO SLEEVE W/FOAM 9"
2
48737
CAMO SLEEVE W/FOAM 18"
1
48691
TIE-OFF ROPE KIT (INCLUDES TWO 15'
ROPES AND ONE 9' ROPE)
1
48800
DVD TREESTAND SAFETY
1
--
10549
ASSEMBLY SEAT RELAX WIDE
1
34
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
