1/4-20 x 2-1/4" bolts
steel washers
side rails
st.
ree blade frame
locknuts
foot platform flat bars
1/4-20 x 1-1/2" bolts
1/4-20 x2-1/4" bolts
2-step ladder
w/stabilizer
bar mount
mesh foot platform
locknuts
Figure 7
Operator's Manual
IrC,no
i
llanW
t
S ia 00
fr
Milers
Ed
V
Ond-Mantadde Stands

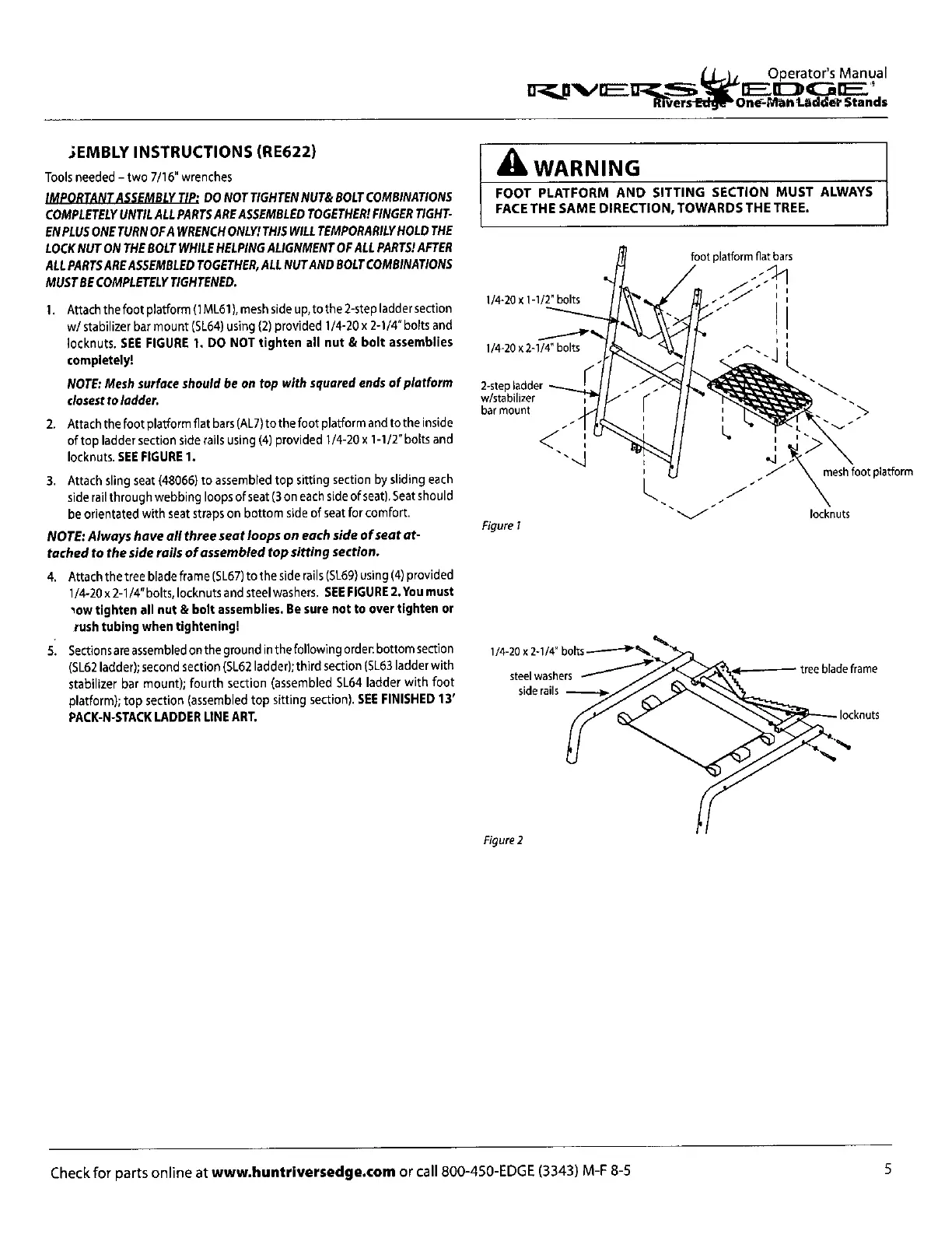

iEMBLY INSTRUCTIONS (RE622)
Tools needed - two 7/16" wrenches
IMPORTANT ASSEMBLY TIP. DO NOT TIGHTEN NUT& BOLT COMBINATIONS
COMPLETELY UNTIL ALL PARTS ARE ASSEMBLED TOGETHER! FINGER TIGHT-
EN PLUS ONE TURN OF A WRENCH ONLY! THIS WILL TEMPORARILY HOLD THE
LOCK NUT ON THE BOLT WHILE HELPING ALIGNMENT OF ALL PARTS! AFTER
ALL PARTS ARE ASSEMBLED TOGETHER, ALL NUT AND BOLT COMBINATIONS
MUST BE COMPLETELY TIGHTENED.
Attach the foot platform (1ML61), mesh side up, to the 2-step ladder section
w/ stabilizer bar mount (5L64) using (2) provided 1/4-20 x 2-1/4" bolts and
locknuts.
SEE FIGURE 1. DO NOT
tighten all nut & bolt assemblies
completely!
NOTE: Mesh surface should be on top with squared ends of platform
closest to ladder.
Attach the foot platform flat bars (AL7)to the foot platform and to the inside
of top ladder section side rails using (4) provided 1/4-20 x 1-1/2" bolts and
locknuts.
SEE FIGURE 1.
Attach sling seat (48066) to assembled top sitting section by sliding each
side rail through webbing loops of seat (3 on each side of seat).5eat should
be orientated with seat straps on bottom side of seat for comfort.
NOTE:
Always have all three seat loops on each side of seat at-
tached
to
the side rails of assembled top sitting section.
Attach the tree blade frame (51_67) to the side rails (5L69) using (4) provided
1/4-20 x 2-1/4" bolts, locknuts and steel washers,
SEE FIGURE 2. You must
low tighten all nut & bolt assemblies. Be sure not to over tighten or
rush tubing when tightening!
Sections are assembled on the ground in the following order. bottom section
(5L62 ladder); second section (5L62 ladder); third section (5L63 ladder with
stabilizer bar mount); fourth section (assembled 51_64 ladder with foot
platform); top section (assembled top sitting section).
SEE FINISHED 13'
PACK-N-STACK LADDER LINE ART.
A
WARNING
FOOT PLATFORM AND SITTING SECTION MUST ALWAYS
FACE THE SAME DIRECTION, TOWARDS THE TREE.
Figure 2
5
Check for parts online at
www.huntriversedge.com
or call 800-450-EDGE (3343) M-F 8-5
